Note: For disassembly of Mechanical Seal and Ball Bearing Only, follow steps 1, 2, 3, 9, 10, 11 and 13.
For Reassembly of Mechanical Seal and Ball Bearing Only, Follow steps 8, 9, 10 and 11.
DISASSEMBLY AND ASSEMBLY PROCEDURES (MECHANICAL SEAL PUMPS)
WARNING
To prevent personnel/equipment injury, power supply to pump driver must be
disconnected or positively tagged out prior to starting any disassembly procedure.

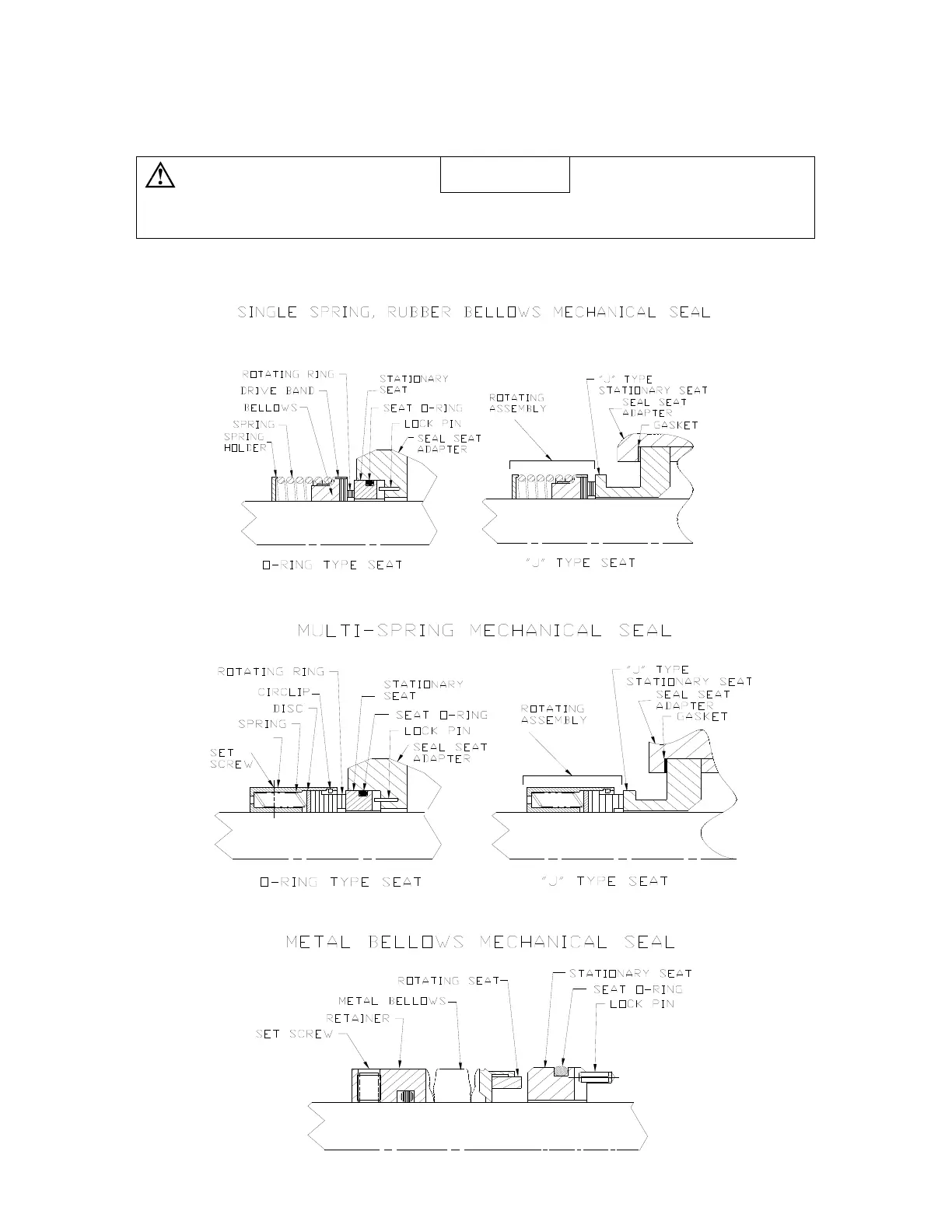

FIGURE 2 - MECHANICAL SEAL TYPES
