Cirrus SR22T Maintenance Manual

24-30
Page 30
Serials 22-1602, 22-1644, 22-1663 & subs w/o Per-
spective Avionics
EFFECTIVITY:
CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
01 Jan 2012

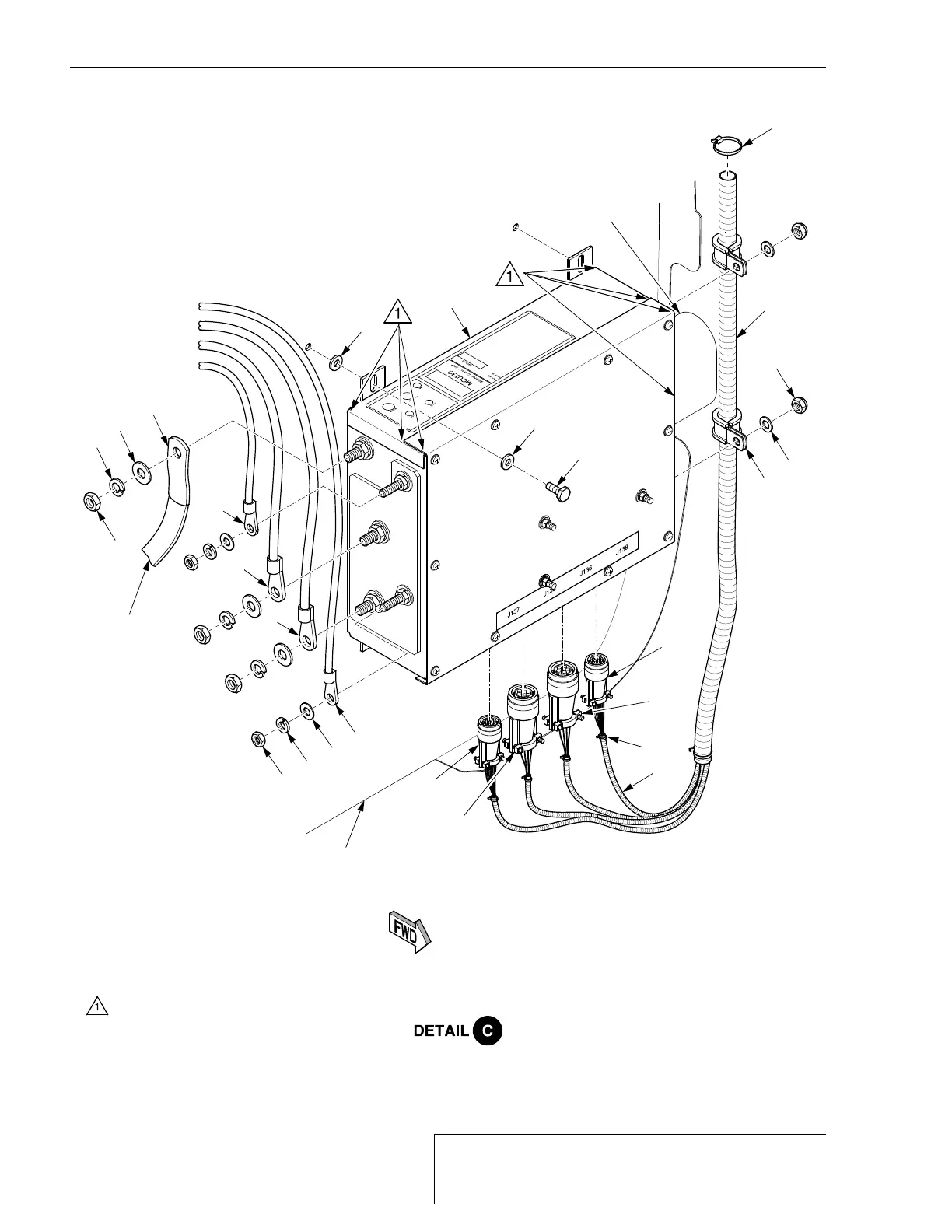

Figure 24-306
MCU Installation - Serials 22-1602, 22-1644, 22-1663 & subs w/o Perspective Avionics (Sheet 3 of 4)
Serials 22-1602, 22-1644, 22-1663 thru 22-3025,
22-3026 & subs w/o Perspective Avionics.
21
20
EXTERNAL POWER
RECEPTACLE
(REF)
TO GROUND
BUS BAR
ASSEMBLY
SR22_MM24_2192B
P135
(REF)
P138
(REF)
P137
(REF)
P136
(REF)
FIREWALL
(REF)
Apply sealant to top corners of MCU
and around external power receptacle.
NOTE
1
2
3
3
3
3
3
5
5
7
8
10
9
12
11
21
20
12
19
12
LEGEND
1. Master Control Unit (MCU)
2. Bolt
3. Washer
5. Lock Washer
7. Starter Cable
8. Battery 1 Cable
9. Alternator 1 Cable
10. Alternator 2 Cable
11. Ground Cable
12. Nut
19. Adel Clamp
20. Wire Loom
21. Cable Tie
