Cirrus SR22T Maintenance Manual

CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
24-30
Page 31
Serials w/ Perspective Avionics
EFFECTIVITY:

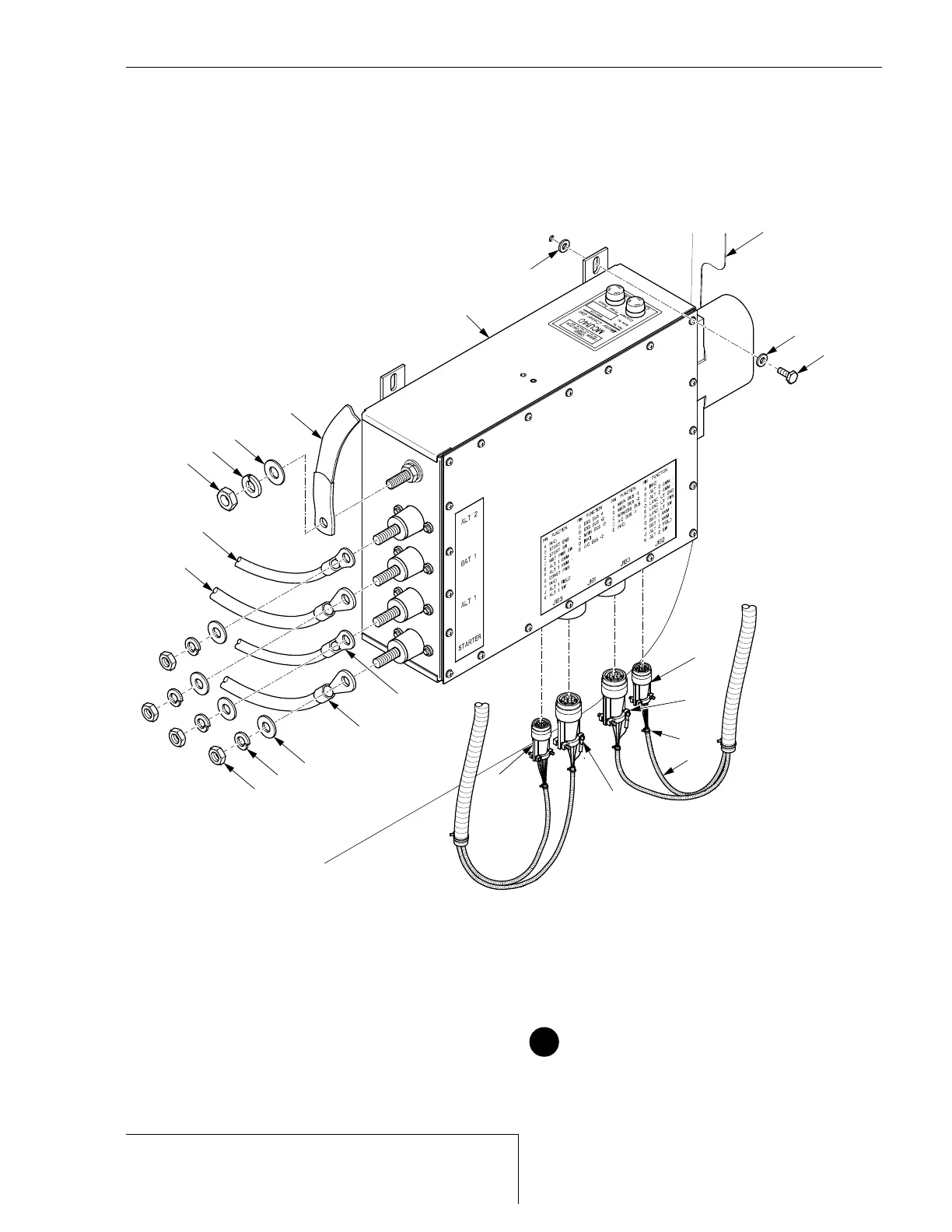

Figure 24-306
MCU Installation - Serials w/ Perspective Avionics (Sheet 4 of 4)
7
3
5
12
5
11
3
12
9
8
10
1
21
20
P181
(REF)
P182
(REF)
P183
(REF)
P180
(REF)
2
3
3
FIREWALL
(REF)
SR22_MM24_2905A
LEGEND
1. Master Control Unit (MCU)
2. Bolt
3. Washer
5. Lock Washer
7. Starter Cable
8. Battery 1 Cable
9. Alternator 1 Cable
10. Alternator 2 Cable
11. Ground Cable
12. Nut
20. Wire Loom
21. Cable Tie
D DETAIL
01 Jan 2012

Cirrus SR22T Specifications

General

Manufacturer	Cirrus Aircraft
Engine	Continental TSIO-550-K
Horsepower	315 hp
Max Takeoff Weight	3, 600 lbs
Service Ceiling	25, 000 ft
Cabin Width	49 in
Cabin Height	50 in
Seating Capacity	4
Avionics	Cirrus Perspective+ by Garmin
Category	Single-engine piston aircraft
Propeller	Hartzell 3-blade composite
Wingspan	38 ft 4 in
Length	26 ft
Height	8 ft 11 in
Maximum Cruise Speed	213 KTAS
Fuel Capacity	92 gallons
Stall Speed	64 knots
Safety Features	Cirrus Airframe Parachute System (CAPS)
Cruise Speed	183 knots
