CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
24-30
Page 53
Serials 22-0098 thru 22-1469
EFFECTIVITY:

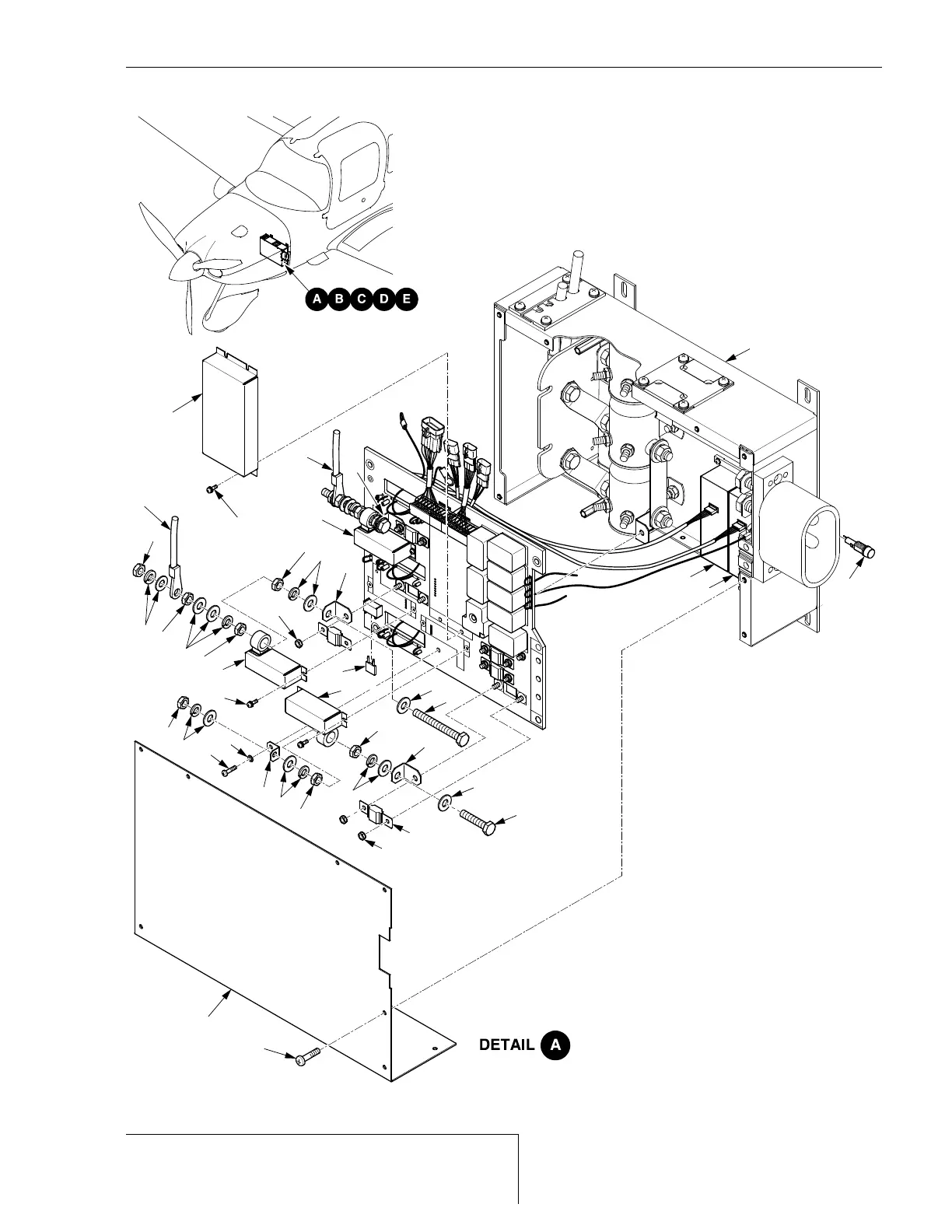

Figure 24-307
MCU Components - Serials 22-0098 thru 22-1469 (Sheet 1 of 5)
1
6
2
6
16
15
14
SR22_MM24_1757F
LEGEND
1. Master Control Unit ( MCU )
2. Screw
3. ALT 1 Current Sensor
4. ALT 1 Cable Assembly
5. Bolt
6. Washer
7. Nut
8. Midi Fuse
9. ALT 2 Current Sensor
10. ALT 2 Cable Assembly
11. BAT Current Sensor
12. Logic Module
13. Blade Fuse
14. External Fuse
15. ALT 1 Field Control Module
16. ALT 2 Field Control Module
17. Bus Bar, IX A
18. Bus Bar, X
19. Bus Bar, IX C
20. Bus Bar, IX B
21. MCU Cover
19
6
2
7
2
21
13
5
18
6
7
8
5
2
11
6
3
7
7
6
7
17
6
10
12
7
6
6
7
4
7
9
7
20
Serials 22-0098 thru 22-1469.
01 Jan 2012
