CIRRUS AIRPLANE MAINTENANCE MANUAL MODELS SR22 AND SR22T
24-30
Page 55
Serials 22-1602, 22-1644, 22-1663 & subs w/o Per-
spective Avionics
EFFECTIVITY:

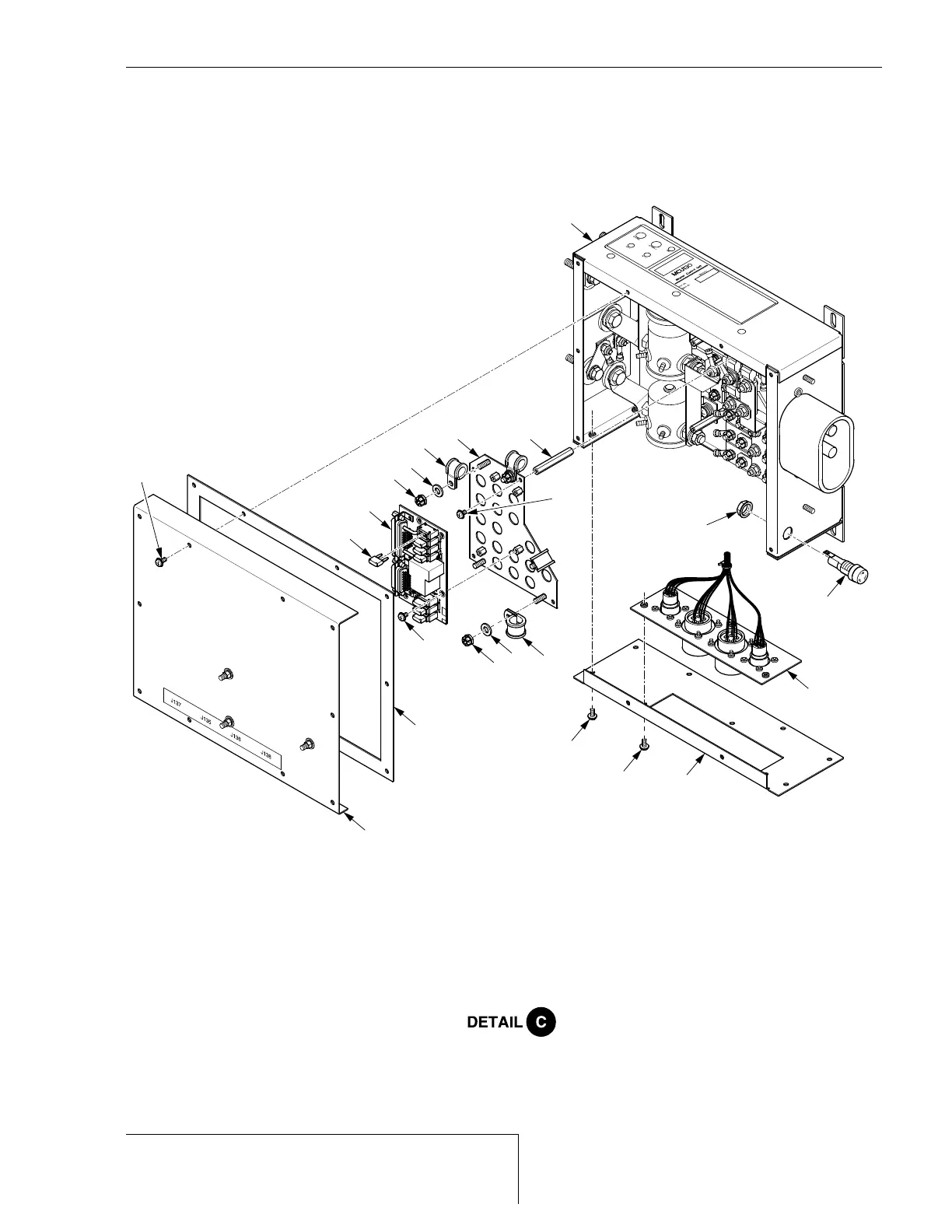

Figure 24-307
MCU Components - Serials 22-1602, 22-1644, 22-1663 & subs w/o Perspective Avionics (Sheet 3 of 5)
Serials 22-1602, 22-1644, 22-1663 thru 22-3025,
22-3026 & subs w/o Perspective Avionics.
7
6
25
7
1
SR22_MM24_2244A
28
3
2
2
2
2
2
25
6
30
30
31
13
32
21
LEGEND
1. Master Control Unit (MCU)
2. Screw
6. Washer
7. Nut
13. Blade Fuse
14. External Fuse
21. MCU Cover
23. Bottom Cover
25. Clamp
28. Bottom Cable Plate
29. Standoff
30. Power Board Mount
31. Power Board
32. Gasket
14
7
01 Jan 2012
