Cisco 1000 Series Hardware Installation Guide

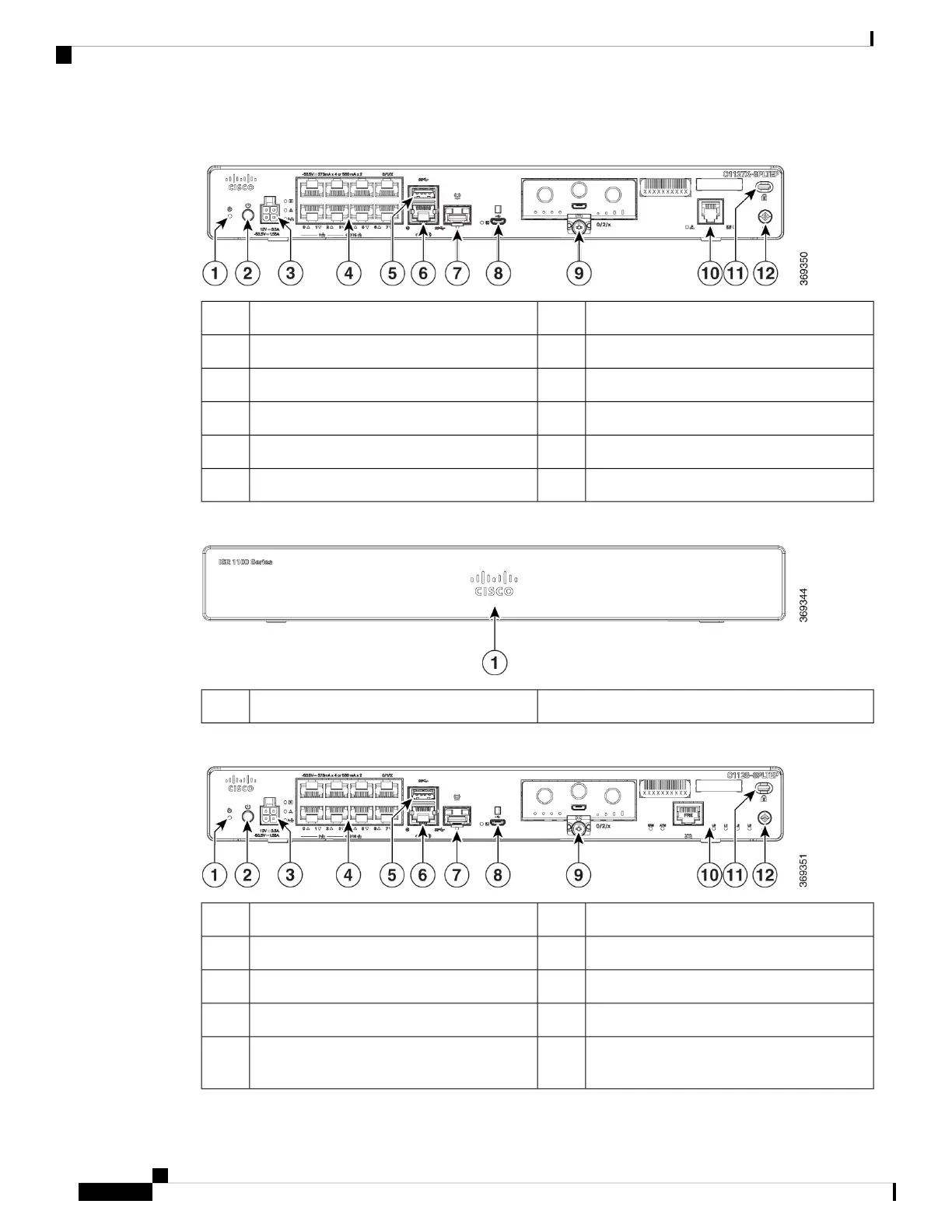

Figure 19: C1127X-8PLTEP IO Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456RJ-455
Micro-USB console8GE WAN 0/0/0 -SFP7
DSL10Pluggable9
Grounding12Kensington lock slot11
Figure 20: C1128-8PLTEP Bezel View
Non-illuminated Cisco logo1
Figure 21: C1128-8PLTEP I/O Panel View
Power switch2Reset button1
Ethernet switch44-pin power connector3
GE WAN 0/0/0 -RJ456USB 3.05
Micro-USB console8GE WAN 0/0/0 -SFP7
Symmetrical High-speed Digital Subscriber
Lines (SHDSL)
10Pluggable9
Hardware Installation Guide for the Cisco 1000 Series Integrated Services Router
12
Overview of Cisco 1000 Series Integrated Services Routers
Chassis Views

Cisco 1000 Series Specifications
