Cisco 12000 Series Router Memory Replacement Instructions
78-4338-16
Removing and Installing Line Card Memory

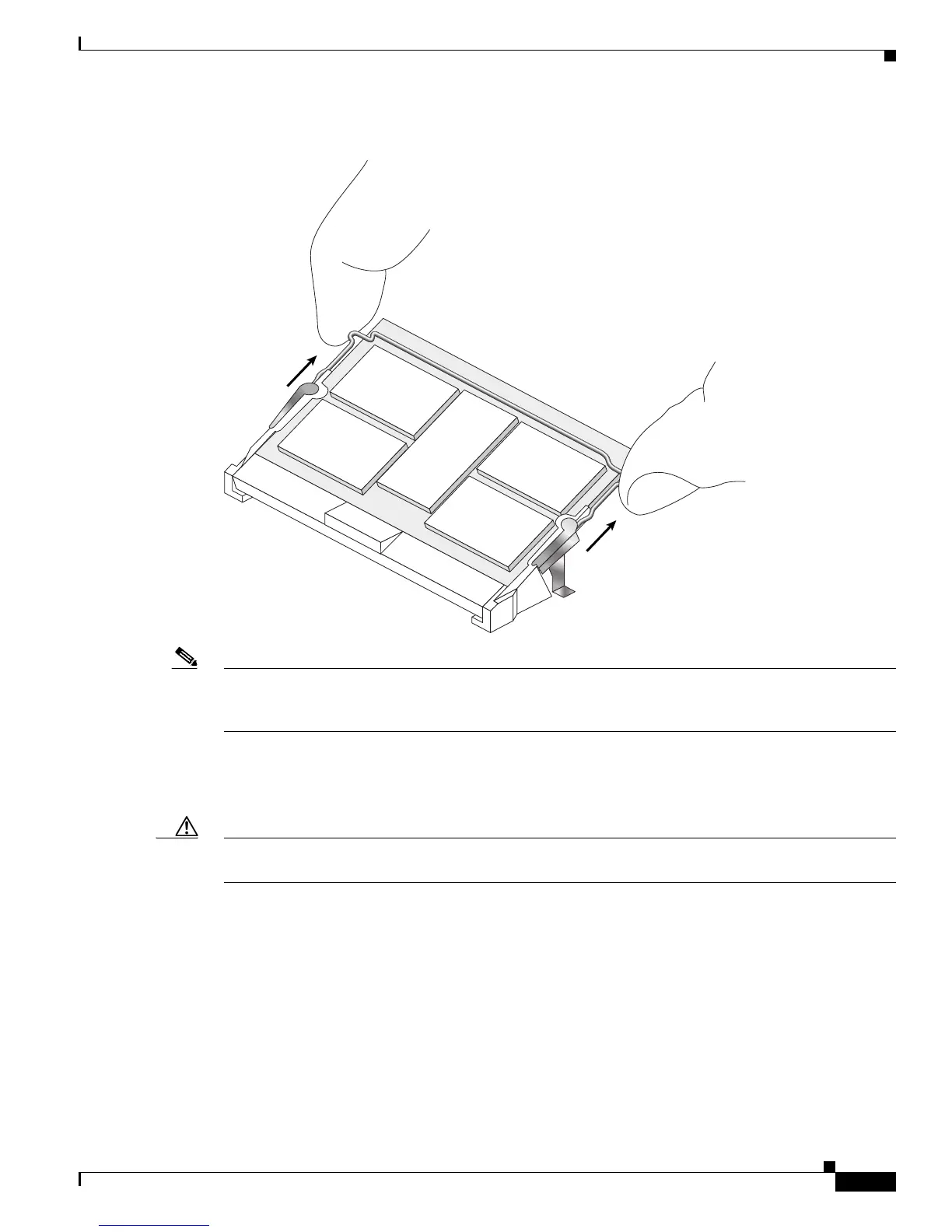

Figure 11 Remove Retaining Clip from Memory Module Socket
Note The retaining clip is not used with all ISE, Engine 4, and Engine 4+ line cards. If your SODIMM socket
does not include the retaining clip; there is no problem. Simply ignore any instructions that refer to the
clip.
Step 5 Remove the SODIMM by gently moving the latches in an outward direction, parallel to and away from
the memory module until it releases and rotates to a 45-degree angle. (See Figure 12, Figure 13, and
Figure 14a.)
Caution The latch on the SODIMM socket is enclosed by the metal strain relief latch. The latch should never be
moved past the metal strain relief latch.
