Cisco 12000 Series Replacement Instructions

29
Cisco 12000 Series Router Memory Replacement Instructions
78-4338-16
Removing and Installing Line Card Memory

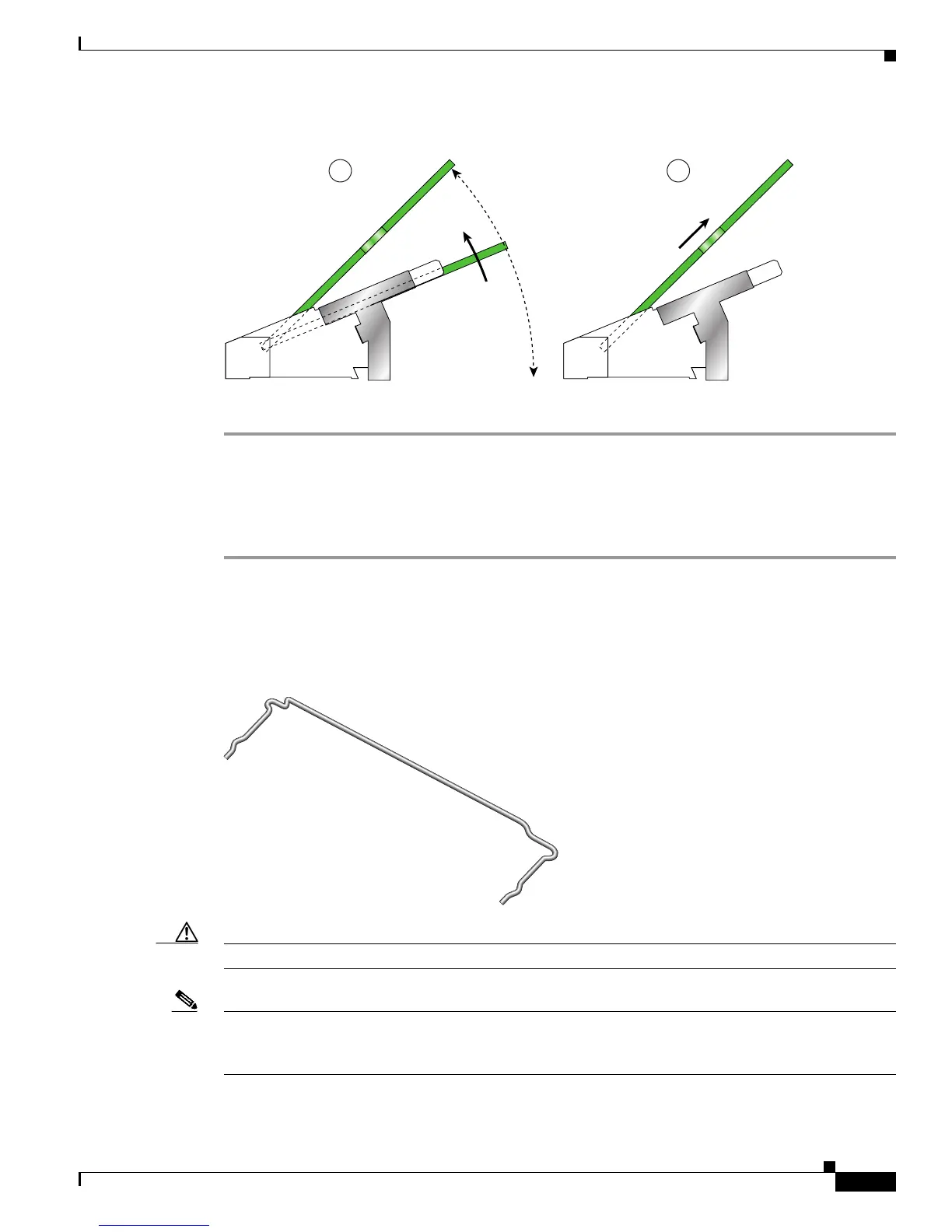

Figure 14 Removing a SODIMM
Step 7
Immediately place the SODIMM in an antistatic bag to protect it from ESD damage.
Installing a SODIMM
To install a SODIMM, follow these steps:
Step 1 Attach an ESD-preventive wrist strap and follow its instructions for use.
Step 2 Place the line card on an antistatic mat so that the faceplate is nearest to you.
Step 3 Check the retaining clip to make sure it has not been damaged or bent.
Figure 15 SODIMM Socket Retaining Clip
Caution If the retaining clip is damaged, do not use it. This can damage the SODIMM socket.
Note The retaining clip is not used with all ISE, Engine 4, and Engine 4+ line cards. If your SODIMM socket
does not include the retaining clip; there is no problem. Simply ignore any instructions that refer to the
clip.
45
º
75780
a
b
75757
