Cisco 12000 Series Router Memory Replacement Instructions
78-4338-16
Removing and Installing Line Card Memory

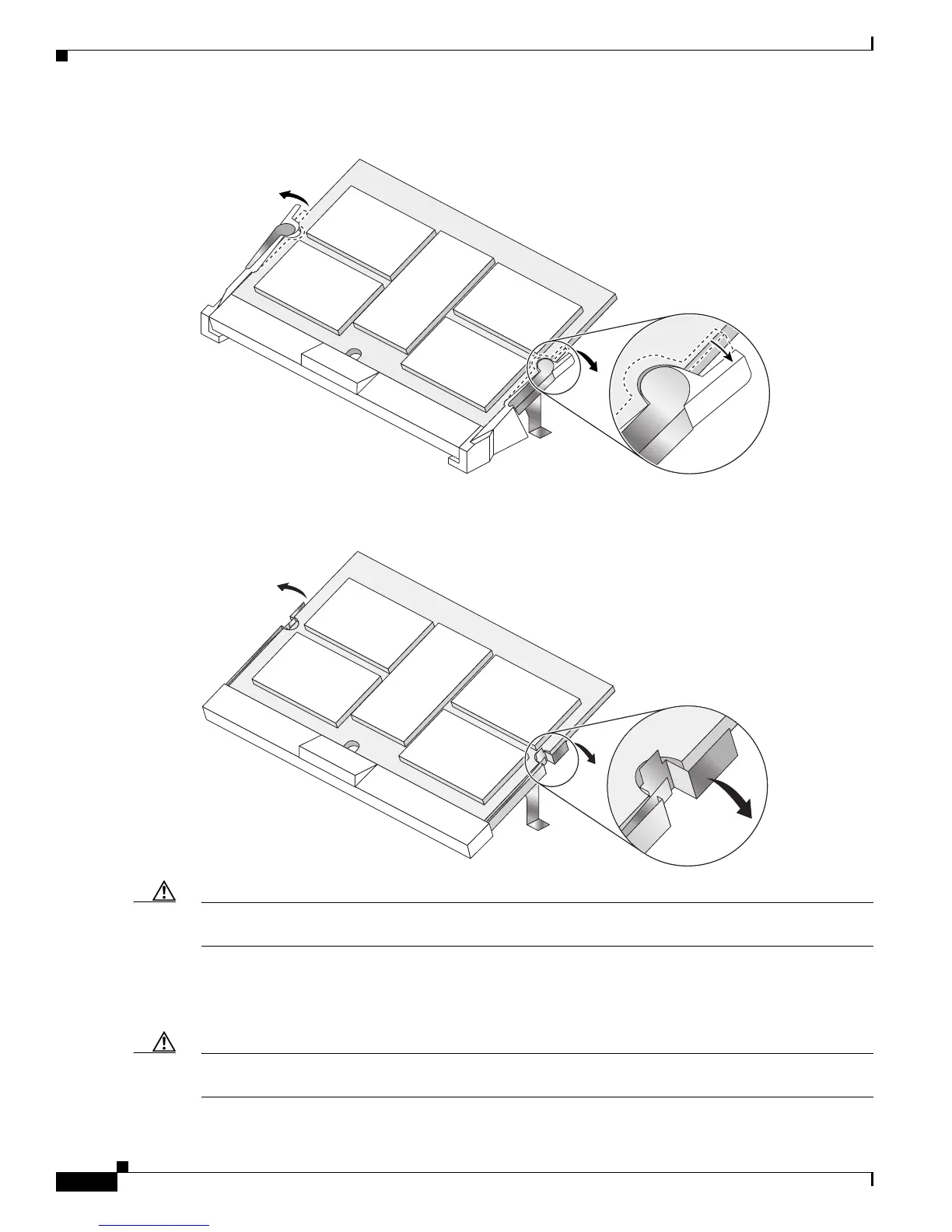

Figure 12 Moving the Latch Away from the SODIMM
Figure 13 Moving the Latch Away from the SODIMM (Alternate Latch Type)
Caution Handle the edges of the SODIMM only. Do not touch the integrated circuit devices on the SODIMM,
the metal traces, or fingers, along the edge of the SODIMM, or the pins in the SODIMM socket.
Step 6 As the SODIMM is released, it positions itself at a 45-degree angle. Gently pull the SODIMM out of the
socket. Continue to keep the module in a 45-degree angle until it is completely removed from the socket
guides. (See Figure 14b.)
Caution On ATM ISE line cards, take care that the SODIMM being removed from DIMM1 does not touch the
SODIMM module in DIMM0 as it is released.
