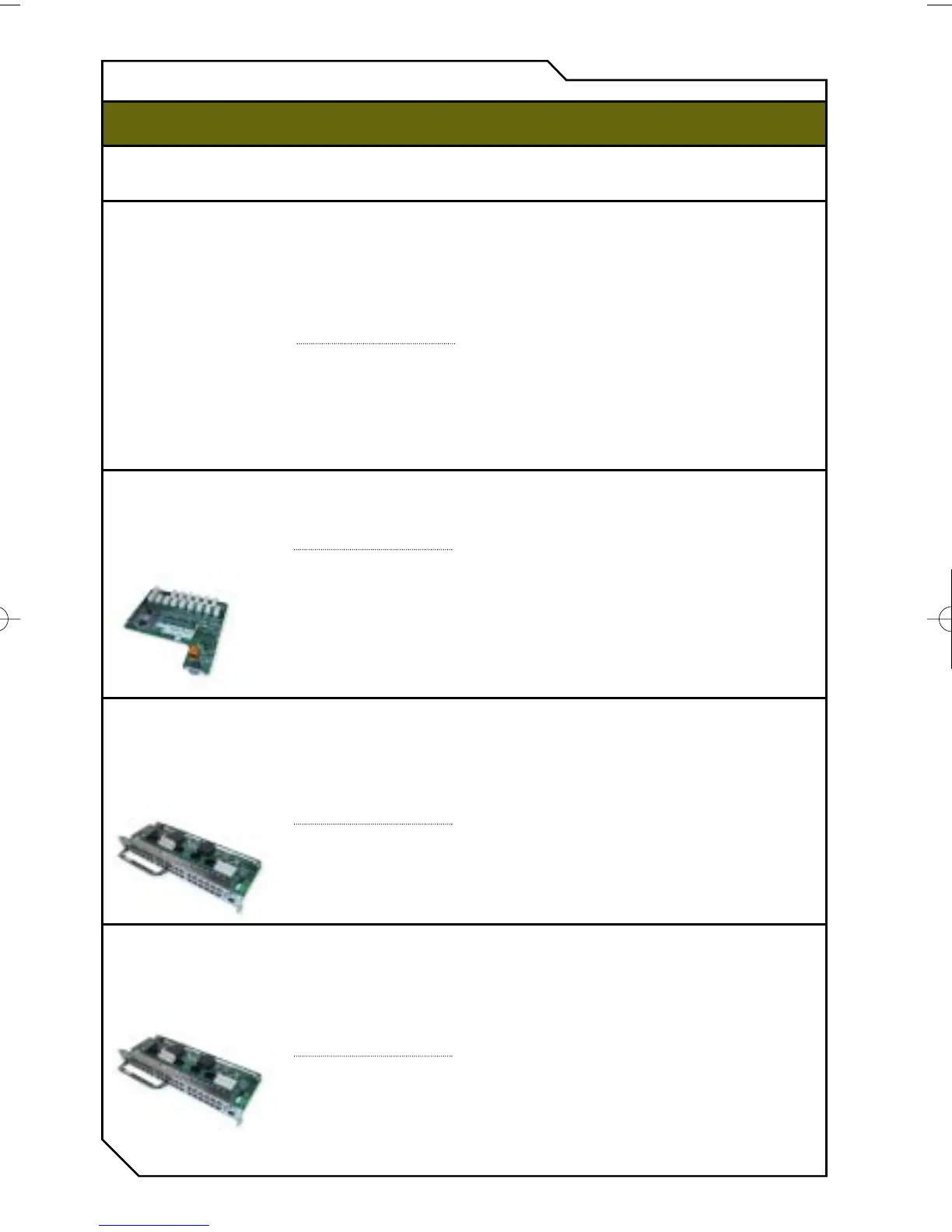

Network Modules for Cisco 2600XM, 3600, and 3700 Series
48
LAN and Mixed Media Network Modules
NM-16ESW-PWR-1GIG
16-port 10/100 EtherSwitch
network module with in-
line power and GE
Provides 16 switch ports
with in-line power support,
one GE port and one
internal port to the router
engine. Features include
802.1p prioritization and
802.1Q VLAN, and 802.1D
Spanning Tree Protocol.
Modular Router Solutions
LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XT
3640 – 12.2(2)XT
3620 – 12.2(2)XT
2691 – 12.2(8)T
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XT
2620 Series – 12.2(2)XT
2610 Series – 12.2(2)XT
This is a bundle of one
NM-16-ESW, one GE-
DCARD-ESW and one
PPWR-DCARD-16ESW.
Requires a Cisco IOS
”Plus” feature set.
Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a Cisco
2600 or Cisco 3600 Series
router or an internal
power supply PPWR-PS-
360W when installed in a
Cisco 3700 Series router.
PPWR-DCARD-16ESW
In-line power daughtercard
for 16-port EtherSwitch
network module
Enables in-line power
capability to the NMD-
16ESW. Note that a power
supply is required.
Modular Router Solutions
LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XT
3640 – 12.2(2)XT
3620 – 12.2(2)XT
2691 – 12.2(8)T
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XT
2620 Series – 12.2(2)XT
2610 Series – 12.2(2)XT
Requires a 16-port 10/100
EtherSwitch network
module.
Requires an external
power supply chassis
PWR-CHASSIS-360W
when installed in a Cisco
2600 or Cisco 3600 Series
router or an internal
power supply PPWR-PS-
360W when installed in a
Cisco 3700 Series router.
NMD-36ESW
36-port 10/100 EtherSwitch
HDSM
Provides 36 switch ports
and one internal port to
the router engine. Features
include 802.1p
prioritization and 802.1Q
VLAN, and 802.1D
Spanning Tree Protocol.
Modular Router Solutions
LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony
3700 Series – 12.2(8)T
3660 Series – 12.2(8)T
3640 – Not Available
3620 – Not Available
2691 – Not Available
2600XM Series –
Not Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NMD-36ESW-2GIG
36-port 10/100 EtherSwitch
HDSM with GE
(10 0 0BASE-T) port
Provides 36 switch ports,
two GE ports and one
internal port to the router
engine. Features include
802.1p prioritization and
802.1Q VLAN, and 802.1D
Spanning Tree Protocol.
Modular Router Solutions
LAN Switching
LAN-to-LAN Routing
Inter-VLAN Routing
IP Telephony
3700 Series – 12.2(8)T
3660 Series – 12.2(8)T
3640 – Not Available
3620 – Not Available
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
This is a bundle of one
NMD-36-ESW and two GE-
DCARD-ESW.
Requires a Cisco IOS
”Plus” feature set.
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
