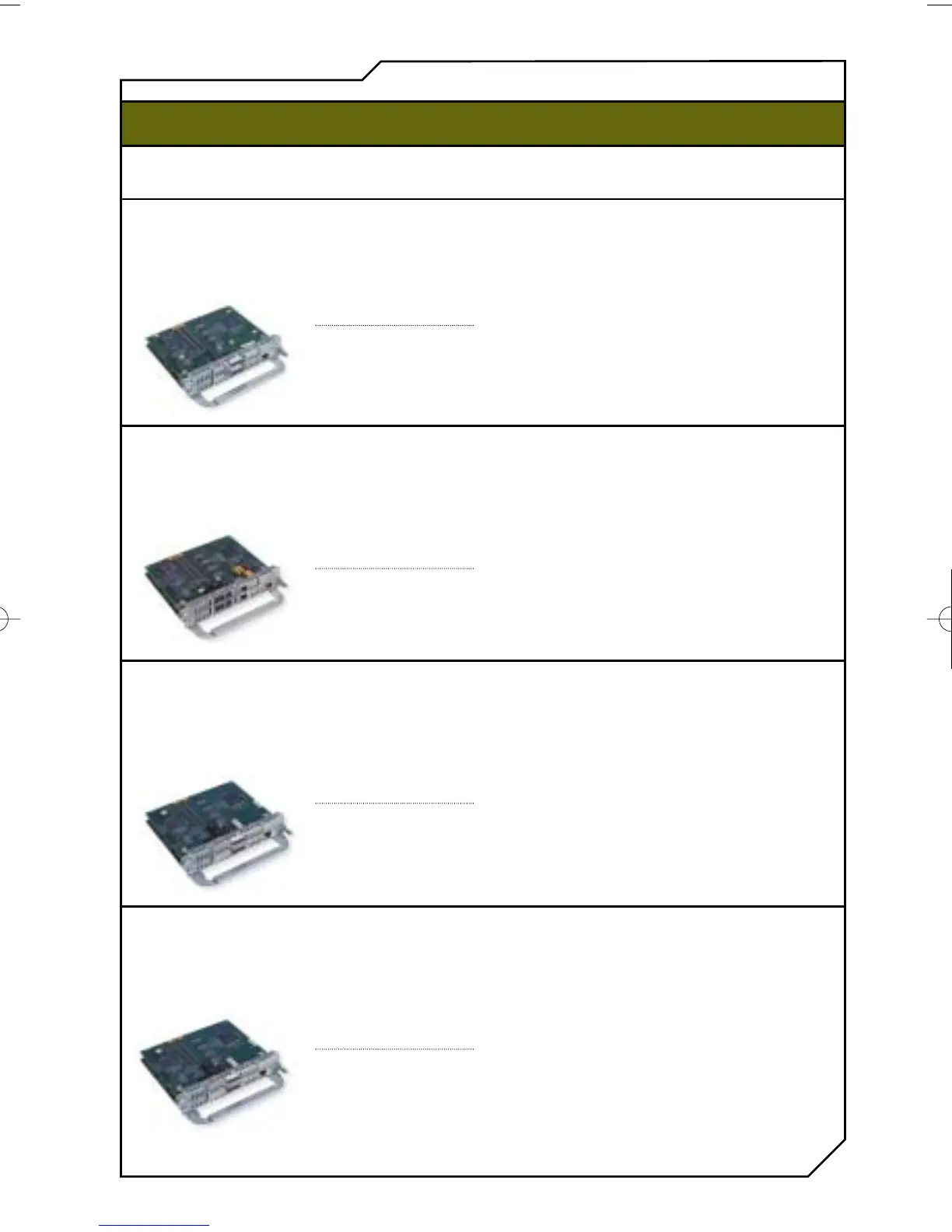

Network Modules for Cisco 2600XM, 3600, and 3700 Series
55
LAN and T1/E1 Combo Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1FE2CT1
1-port Fast Ethernet,
2-port channelized
T1/ISDN-PRI network
module
Provides a single auto-
sensing 10/100BASE-TX
connection via an RJ-45
connector and two
channelized T1/ISDN PRI
connections via DB-15
connectors.
Modular Router Solutions
ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(4)T1
3620 – 11.3(4)T1
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1FE2CT1-CSU
1-port Fast Ethernet,
2-Port channelized
T1/ISDN-PRI with CSU
network module
Provides a single auto-
sensing 10/100BASE-TX
connection via an RJ-45
connector and two
channelized T1/ISDN PRI
with integrated DSU/CSU
connections via RJ-48
connectors.
Modular Router Solutions
ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(4)T1
3620 – 11.3(4)T1
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not
Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1FE2CE1B
1-port Fast Ethernet,
2-port channelized
E1/ISDN-PRI balanced
network module
Provides a single auto-
sensing 10/100BASE-TX
connection via an RJ-45
connector and two
channelized E1/ISDN PRI
balanced (120 ohm)
connections via DB-15
connectors.
Modular Router Solutions
ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(4)T1
3620 – 11.3(4)T1
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1FE2CE1U
1-port Fast Ethernet,
2-port Channelized
E1/ISDN-PRI unbalanced
network module
Provides a single auto-
sensing 10/100BASE-TX
connection via an RJ-45
connector and two
channelized E1/ISDN PRI
unbalanced (75 ohm)
connections via DB-15
connectors.
Modular Router Solutions
ISDN Concentration
Inter-VLAN Routing
LAN-to-LAN Routing
3700 Series – Not Available
3660 Series – 12.0(7)XK
3640 – 11.3(4)T1
3620 – 11.3(4)T1
2691 – Not Available
2600XM Series – Not
Available
2650 Series – Not Available
2620 Series – Not Available
2610 Series – Not Available
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 55

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
