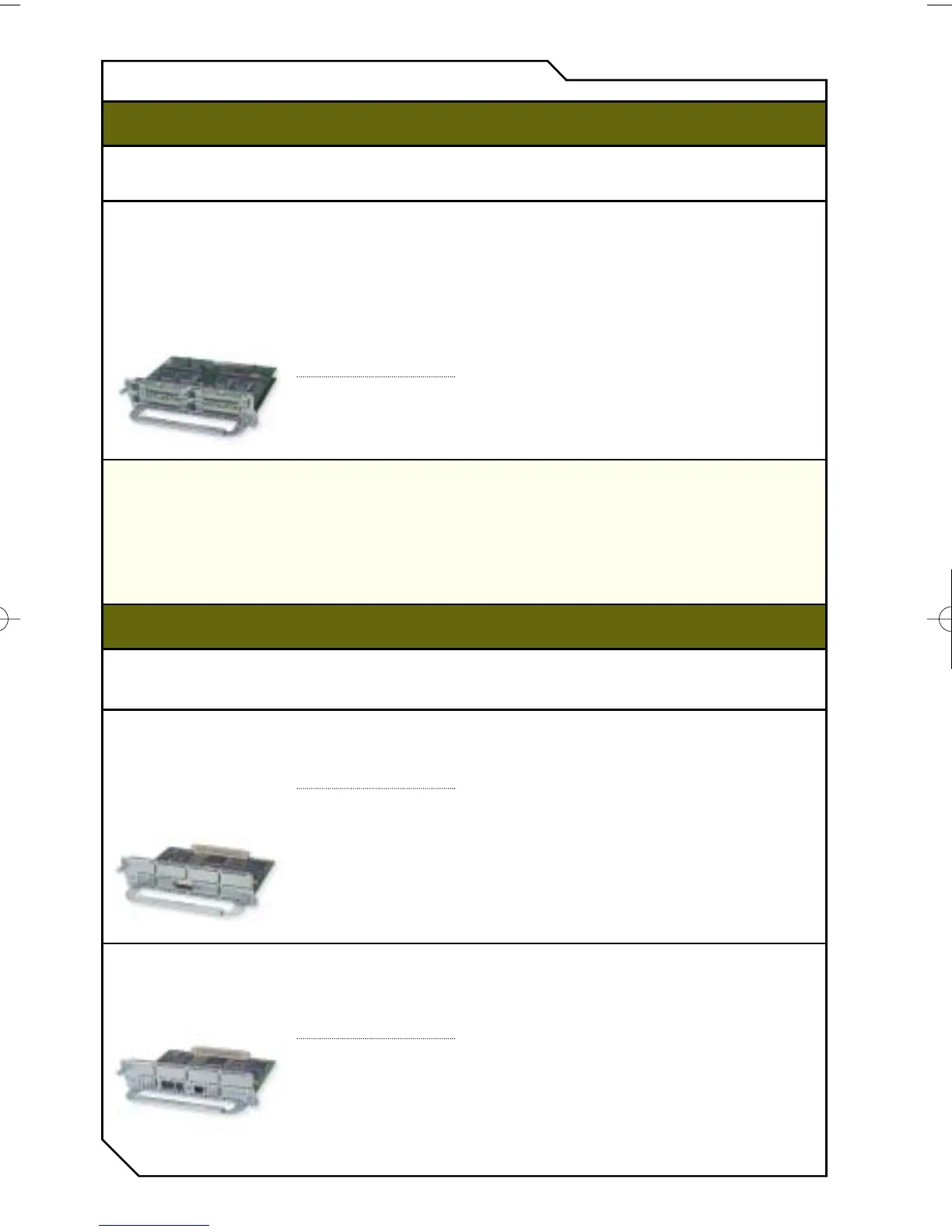

Network Modules for Cisco 2600XM, 3600, and 3700 Series
58
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-32A
32-port asynchronous
network module
Provides 32 asynchronous
serial interfaces at speeds
up to 134 kbps. The 32
ports are cabled with four
custom “octopus” cables,
each terminating in eight
ports, each with an option
of physical endpoints,
including RJ-45 and DB-25
connectors.
Modular Router Solutions
Dial-up Remote Access
Serial and Legacy
Concentration
3700 Series – Future
3660 Series – 12.0(5)T
3640 – 11.2(7a)P
3620 – 11.2(7a)P
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(2)XA
2610 Series – 11.3(2)XA
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-1CT1
1-port channelized
T1/ISDN-PRI network
module
Provides a single
channelized T1/ISDN PRI
connection via a DB-15
connector.
Modular Router Solutions
Serial and Legacy
Concentration
ISDN Concentration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 11.1(7)AA
3620 – 11.1(7)AA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(4)T
2610 Series – 11.3(4)T
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
NM-1CT1-CSU
1-port channelized
T1/ISDN-PRI with CSU
network module
Provides a single
channelized T1/ISDN PRI
with integrated DSU/CSU
connection via an RJ-48
connector.
Modular Router Solutions
Serial and Legacy
Concentration
ISDN Concentration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 11.1(7)AA
3620 – 11.1(7)AA
2691 – 12.2(8)T
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 11.3(4)T
2610 Series – 11.3(4)T
No reliance on other
network modules, WICs,
voice interface cards, or
advanced integration
modules.
Channelized T1/E1 and
ISDN Network Modules
Channelized T1/E1 and ISDN Primary Rate Interface Network Modules
Asynchronous Serial Network Modules — Up to 134 Kbps
