Network Modules for Cisco 2600XM, 3600, and 3700 Series
72

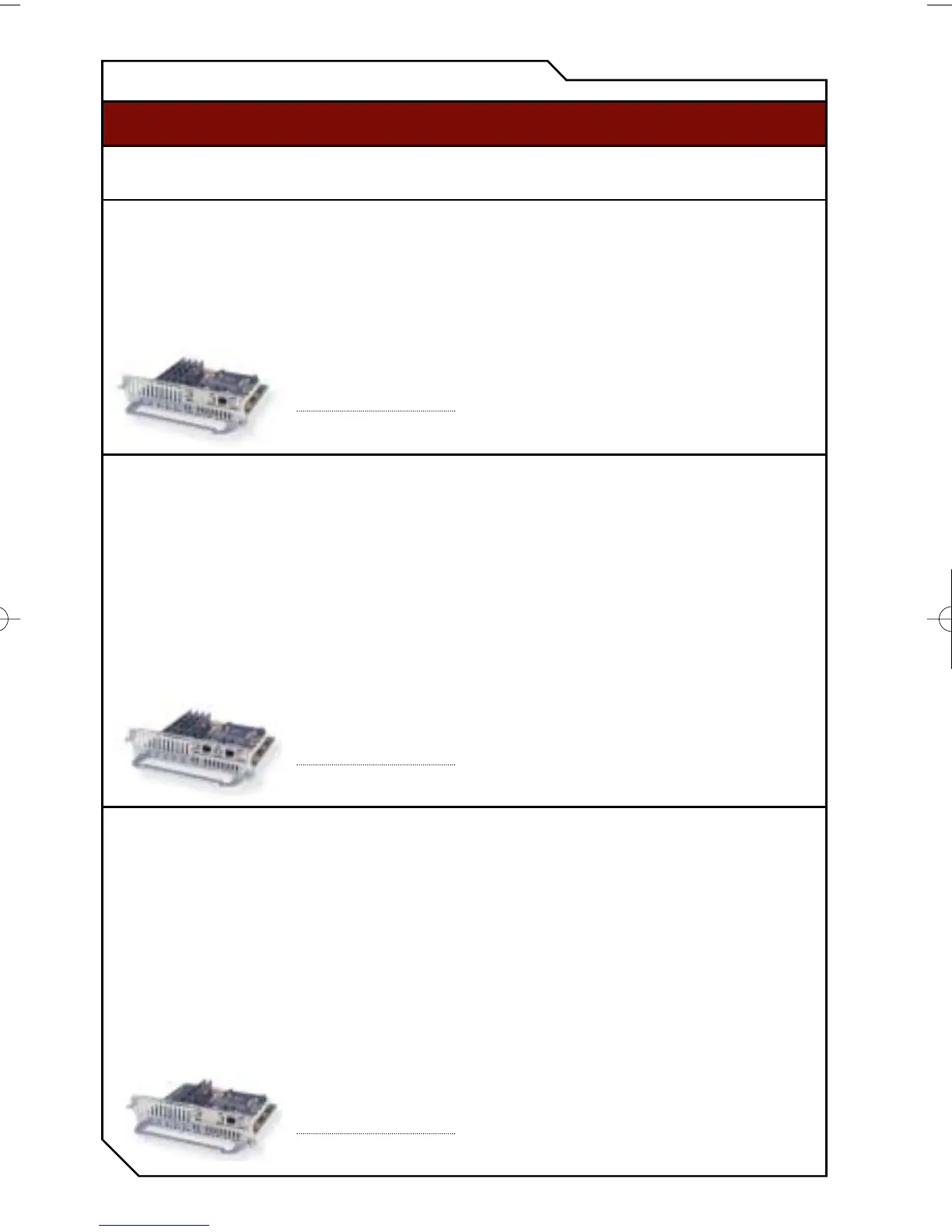

T1/E1/J1 Digital Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-HDV-1T1-24E
1-port 24-channel
enhanced digital T1 packet
voice trunk network
module
Provides a single T1
connection with support
for 24 channels of high-
and/or medium-
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1T1-24E is a
bundle of the following
components:
•One network module
(NM-HDV)
•One one-port T1
voice/WAN interface
card (VWIC-1MFT-T1)
•One digital signal
processor modules
(PVDM-12)
NM-HDV-2T1-48
2-port 30-channel
enhanced digital T1 packet
voice trunk network
module
Provides two T1 connections
with support for 48 channels
of medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 24
channels of high- and/or
medium-complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-2T1-48 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 2-port T1
voice/WAN interface
card (VWIC-2MFT-T1)
•Four digital signal
processor modules
(PVDM-12)
NM-HDV-1E1-12
1-port 12-channel digital
E1 packet voice trunk
network module
Provides a single E1
connection with support
for 12 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide
six channels of high-
and/or medium-complexity
voice compression using
any of the following
codecs: G.729A, G.729AB,
G.726 all versions, G.711,
G.729, G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-2T1-48 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 2-port T1
voice/WAN interface
card (VWIC-2MFT-T1)
•Four digital signal
processor modules
(PVDM-12)
AccessRouter_10.21.02 10/24/02 3:31 PM Page 72

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
