Cisco 1700 series Quick Reference Guide

Series Features Overview

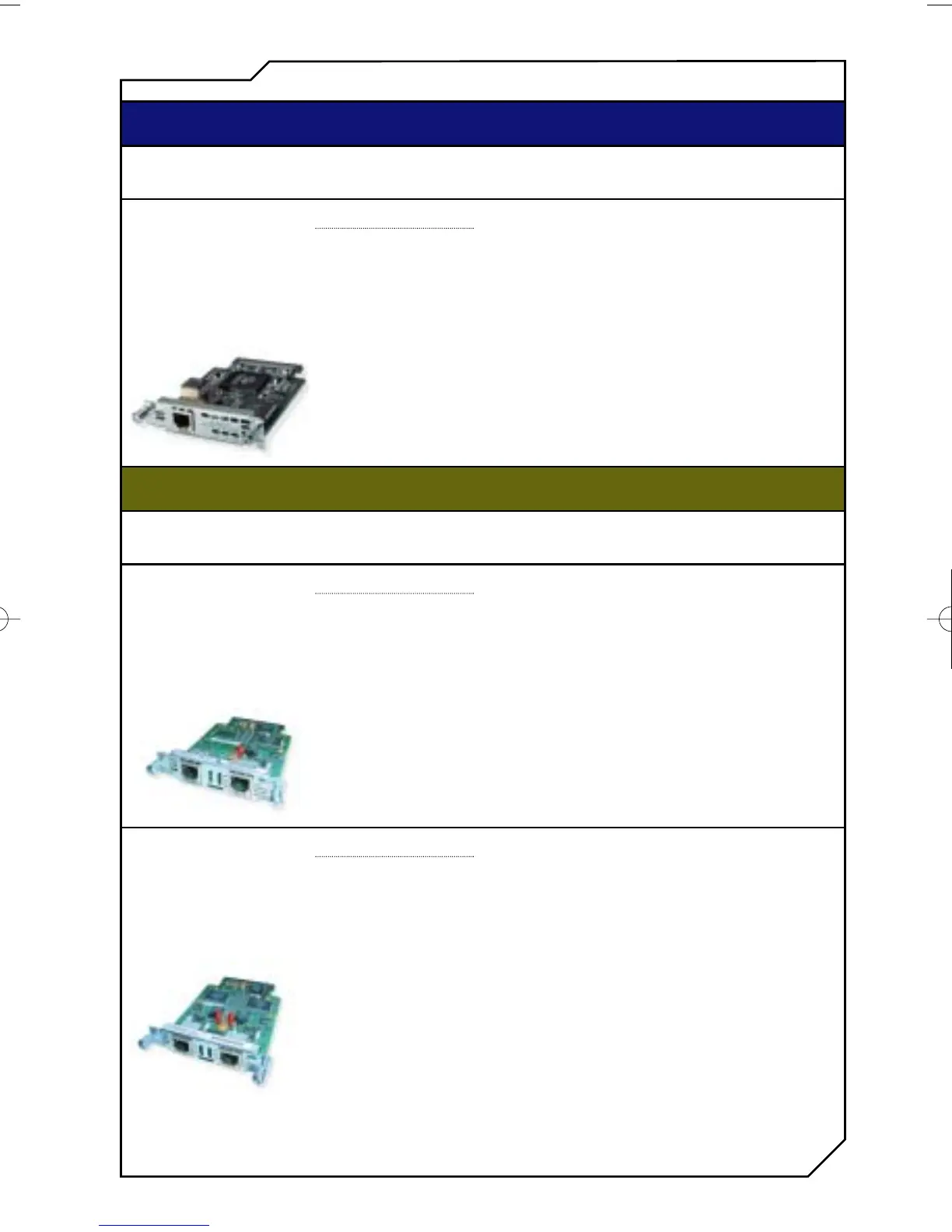

Interface Cards for Cisco 1700, 2600XM, 3600, and 3700 Series
79
DSL WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1SHDSL
1-port symmetrical
high-speed DSL line
(G.SHDSL) WIC
Modular Router Solutions
DSL Access
3700 Series – Future
3660 Series – 12.2(4)XL2
3640 – 12.2(4)XL2
3620 – 12.2(4)XL2
2691 – Future
2600XM Series – 12.2(8)T1
2650 Series – 12.2(4)XL
2620 Series – 12.2(4)XL
2610 Series – 12.2(4)XL
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)XL
(Fifth release of 12.2T)
1721 – 12.2(4)YA
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
When using the Cisco
1700 Series, requires an
IOS IP/DSL module.
When using the Cisco
2600, Cisco 3600, and
Cisco 3700 Series, requires
a Cisco IOS”Plus” feature
set.
Analog Modem WICs
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
WIC-1AM
1-port analog modem WIC
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XB
3640 – 12.2(2)XB
3620 – 12.2(2)XB
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XB
2620 Series – 12.2(2)XB
2610 Series – 12.2(2)XB
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – 12.2(4)YB
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
WIC-2AM
2-port analog modem WIC
Modular Router Solutions
Dial-up Remote Access
3700 Series – 12.2(8)T
3660 Series – 12.2(2)XB
3640 – 12.2(2)XB
3620 – 12.2(2)XB
2691 – 12.2(8)T1
2600XM Series – 12.2(8)T1
2650 Series – 12.2(2)XB
2620 Series – 12.2(2)XB
2610 Series – 12.2(2)XB
1760 – 12.2(4)YB
(Sixth release of 12.2T)
1751 – 12.2(4)YB
(Sixth release of 12.2T)
1721 – 12.2(4)YB
(Sixth release of 12.2T)
When used in a Cisco 3600
Series router, requires one
of the following mixed-
media network modules:
NM-2W, NM-1FE2W, NM-
2FE2W or NM-1FE1R2W.
AccessRouter_10.21.02 10/24/02 3:31 PM Page 79

Cisco 1700 series Specifications

General

Model	1700 Series
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, HTTP
Encryption Algorithm	DES, 3DES, AES
Processor	Motorola MPC860
QoS Support	Yes
Operating System	Cisco IOS
Routing Protocols	OSPF, EIGRP, BGP
Security Features	Firewall, VPN
Memory	16 MB
Expansion Slots	1 x WIC
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Features	DHCP, NAT, VLAN
LAN Ports	4 x 10/100Base-TX
