Cisco 1841 and Cisco 2801 Routers
The module’s internal Flash does not store any IOS images. The CF card must be used to store the valid
IOS image. The CF card that stores the IOS image is considered an internal memory module, because
the IOS image stored in the card may not be modified or upgraded. The card itself must never be removed
from the drive. Tamper evident seal will be placed over the card in the drive.
The Cisco 2801 Cryptographic Module Physical Characteristics

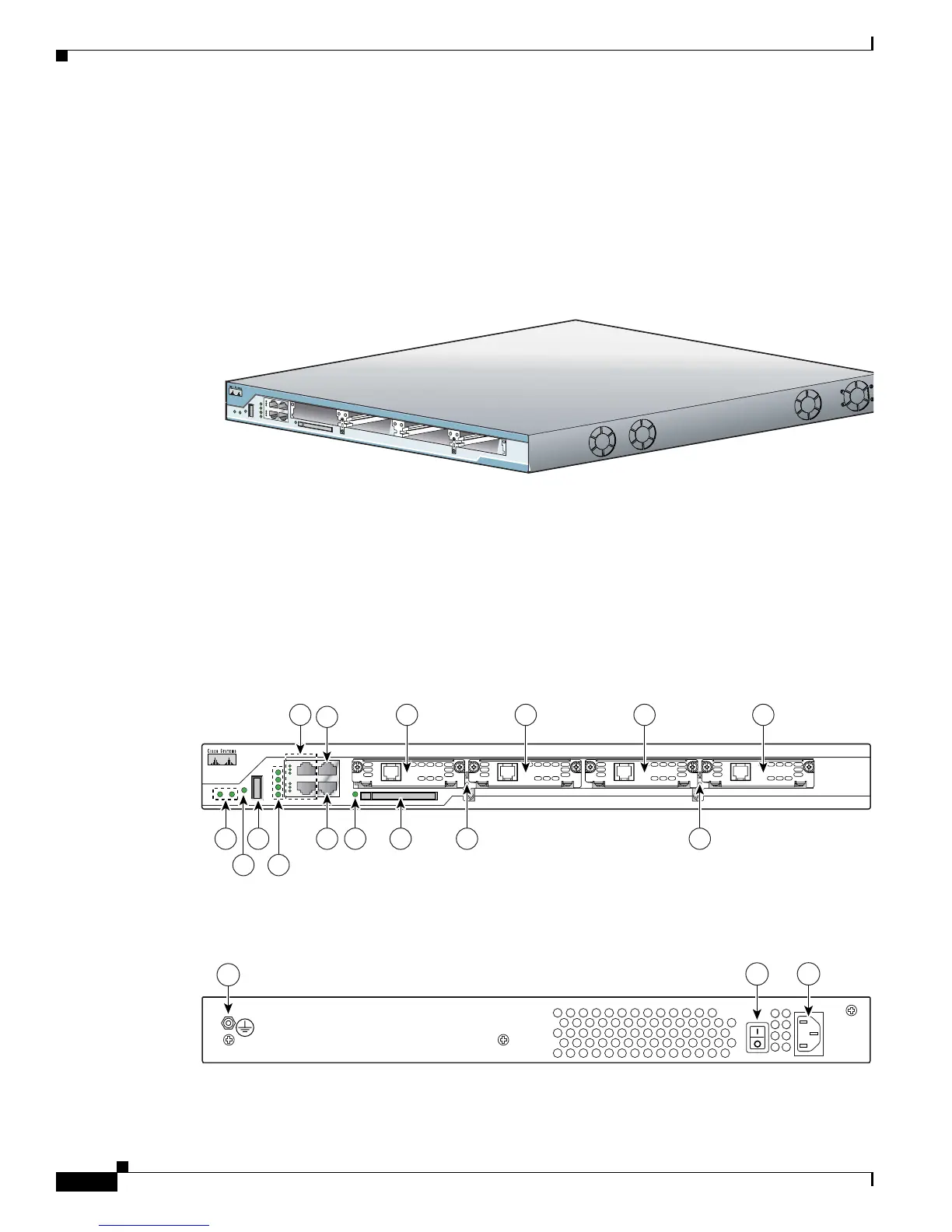

Figure 3 The Cisco 2801 router case
The Cisco 2801 router is a multiple-chip standalone cryptographic module. The router has a processing
speed of 240MHz. Depending on configuration, either the installed AIM-VPN/BPII-Plus module,
onboard FPGA or the IOS software is used for cryptographic operations.
The cryptographic boundary of the module is the device's case Figure 3. All of the functionality
discussed in this document is provided by components within this cryptographic boundary.
The interfaces for the router are located on the front and rear panel as shown in Figure 4and Figure 5,
respectively.
Figure 4 Cisco 2801 Front Panel Physical Interfaces
Figure 5 Cisco 2801 Rear Panel Physical Interfaces
95817
95816
1234
5
6
7 9 11 12 13 14 14
8 10
95905
3
1
2

Cisco 1841 Specifications

General

Flash memory	32 MB
Internal memory	128 MB
Product color	Black, Blue, Stainless steel
Rack capacity	1U
LED indicators	Yes
Storage temperature (T-T)	-25 - 65 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	5 - 95 %
Operating relative humidity (H-H)	10 - 85 %
Cabling technology	10/100Base-T(X)
Networking standards	-
Ethernet LAN data rates	10, 100 Mbit/s
Ethernet interface type	Fast Ethernet
USB ports quantity	1
Ethernet LAN (RJ-45) ports	2
Firewall security	Cisco IOS
Security algorithms	128-bit AES, 192-bit AES, 256-bit AES, 3DES, DES
Dual-band	No

Weight and Dimensions

Depth	274 mm
Width	343 mm
Height	47.5 mm
Weight	2800 g
