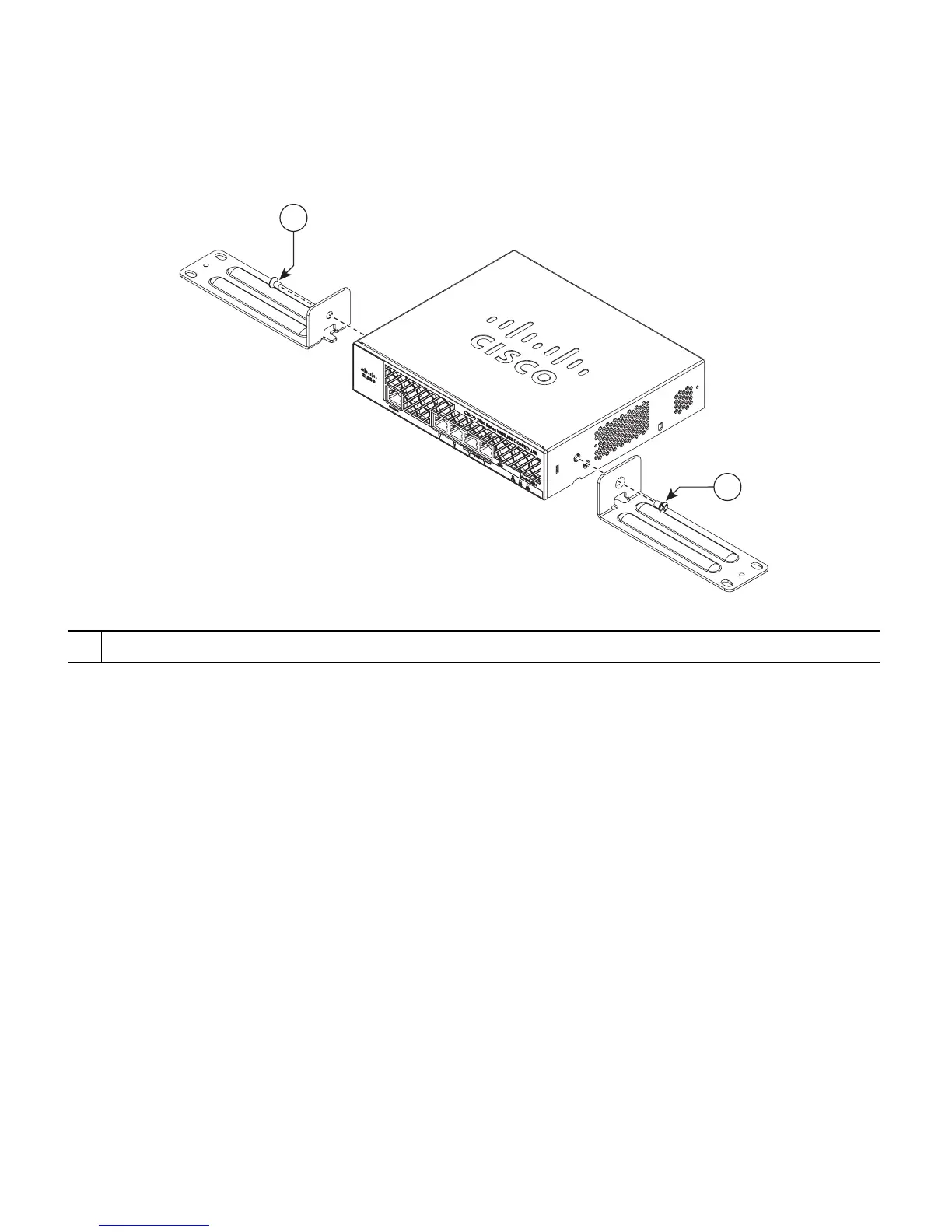

Figure 5 Installing the Rack-Mount Brackets to the Sides of the Controller
Step 2 Mount the 2504 controller on the wall with the front panel facing down, as shown Figure 6.
For the best support of the controller and cables, make sure the controller is attached securely
to wall studs or to a firmly attached plywood mounting backboard.
1
#10-32 flat head screws (mounting screws for each side of the controller)
282083
BASE MOUNT
1
1
