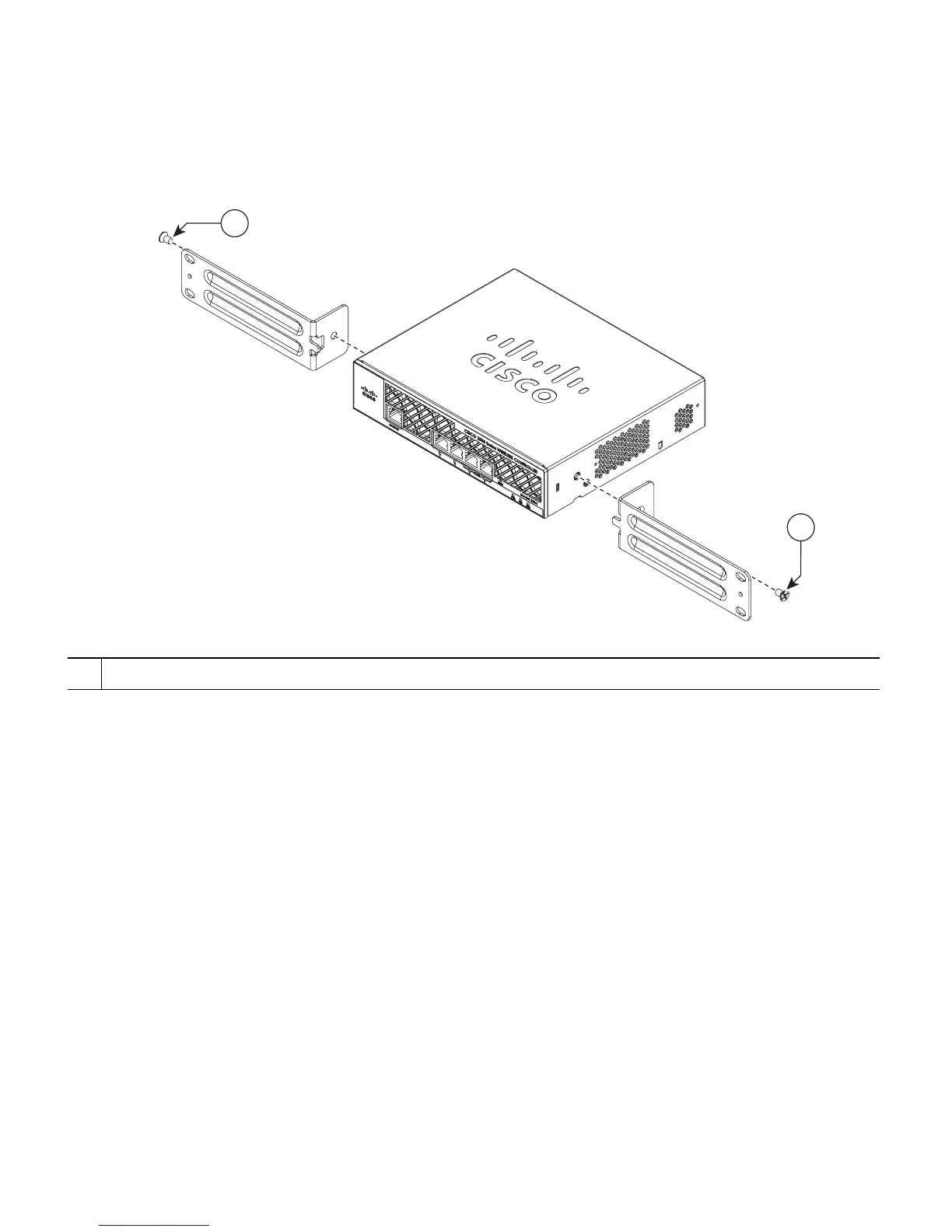

Figure 9 Attaching the 19-Inch Brackets to the Side of the Controller.
Step 2 After the brackets are attached to the sides of the controller, insert the controller into the
19-inch rack. Use either the 10-32 pan-head screws or the 12-24 slotted head screws to secure
the controller in the rack, as shown in
Figure 10.
1
#10-32 flat head screws (mounting screws for each side of the controller)
282082
RACK MOUNT
1
1
