3-10
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process

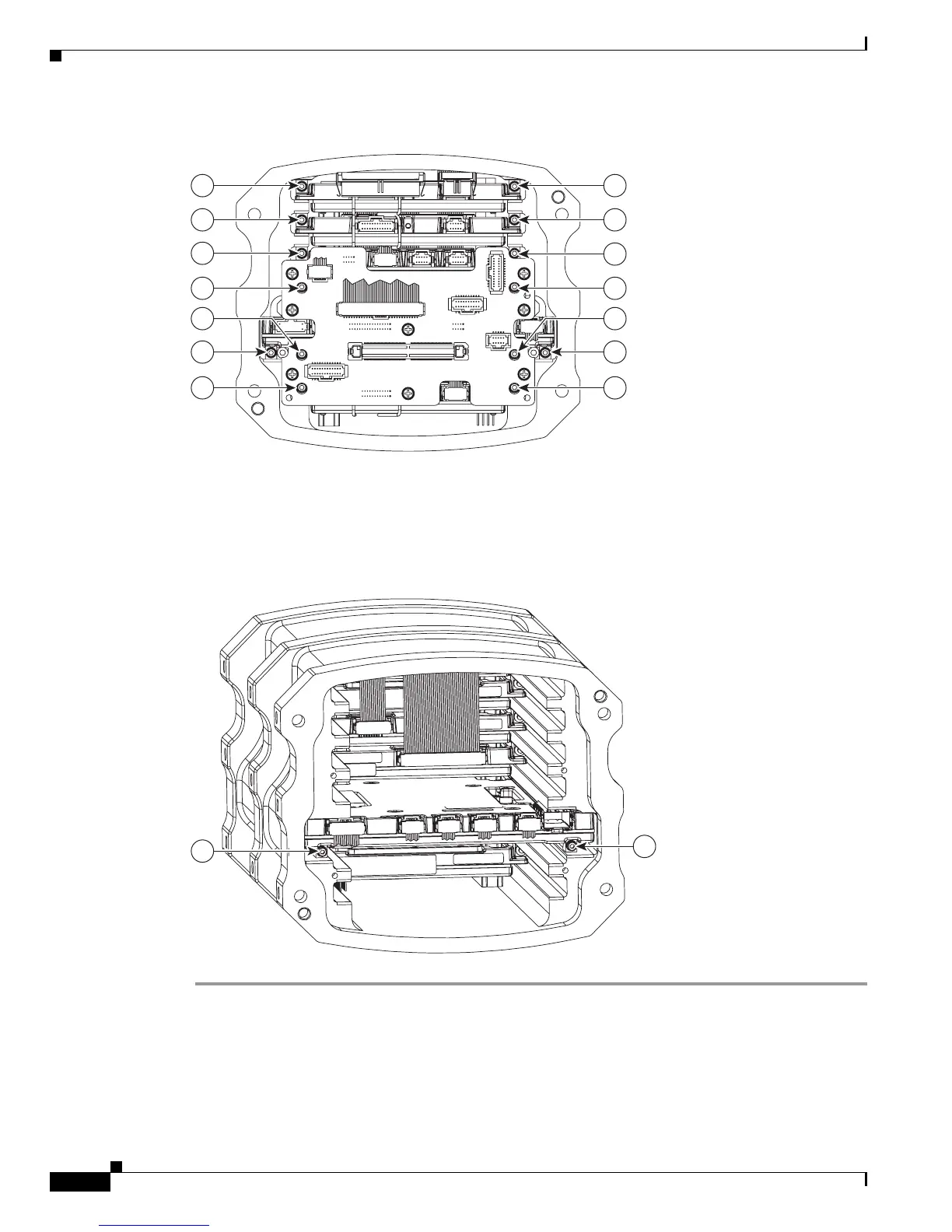

Figure 3-9 Tightening Wedge Loks
Step 12 Tighten the two Wedge Loks of the MARC on the antenna end cap side (see Figure 3-10) with a
3/32-inch hex blade. Use a torque range of 5.5–5.7 in-lb when tightening the Wedge Loks.
Figure 3-10 Sequence for Tightening Wedge Loks
270473
13
11
7
5
3
9
1
4
2
14
12
8
6
10
270474
1
2
