3-11
Cisco 3200 Series Router Hardware Upgrade Guide
OL-15983-01
Chapter 3 Replacing Cards in the Cisco ISR 3270 Rugged Enclosure
Card Replacement Process
Reattaching the Wiring Card
To reattach the wiring card to the card stack, follow these steps:
Step 1 Attach the wiring card to the front of the card stack by aligning ports and firmly pressing the card into
the stack.
Step 2 If WMICs are present, make sure that the WMIC mounting boss is within 0.01 inch of the wiring card.
Step 3 Using a Phillips screwdriver, tighten the wiring card screws using 5.5 to 5.7 in-lb torque, as shown in
Figure 3-4.
Note In a 0-WMIC configuration, screw number 2 is not used.
Step 4 Connect the cables to the wiring card, as shown in Figure 3-11.
For a 0-WMIC configuration, connect the cables to the wiring card as shown in Figure 3-11.

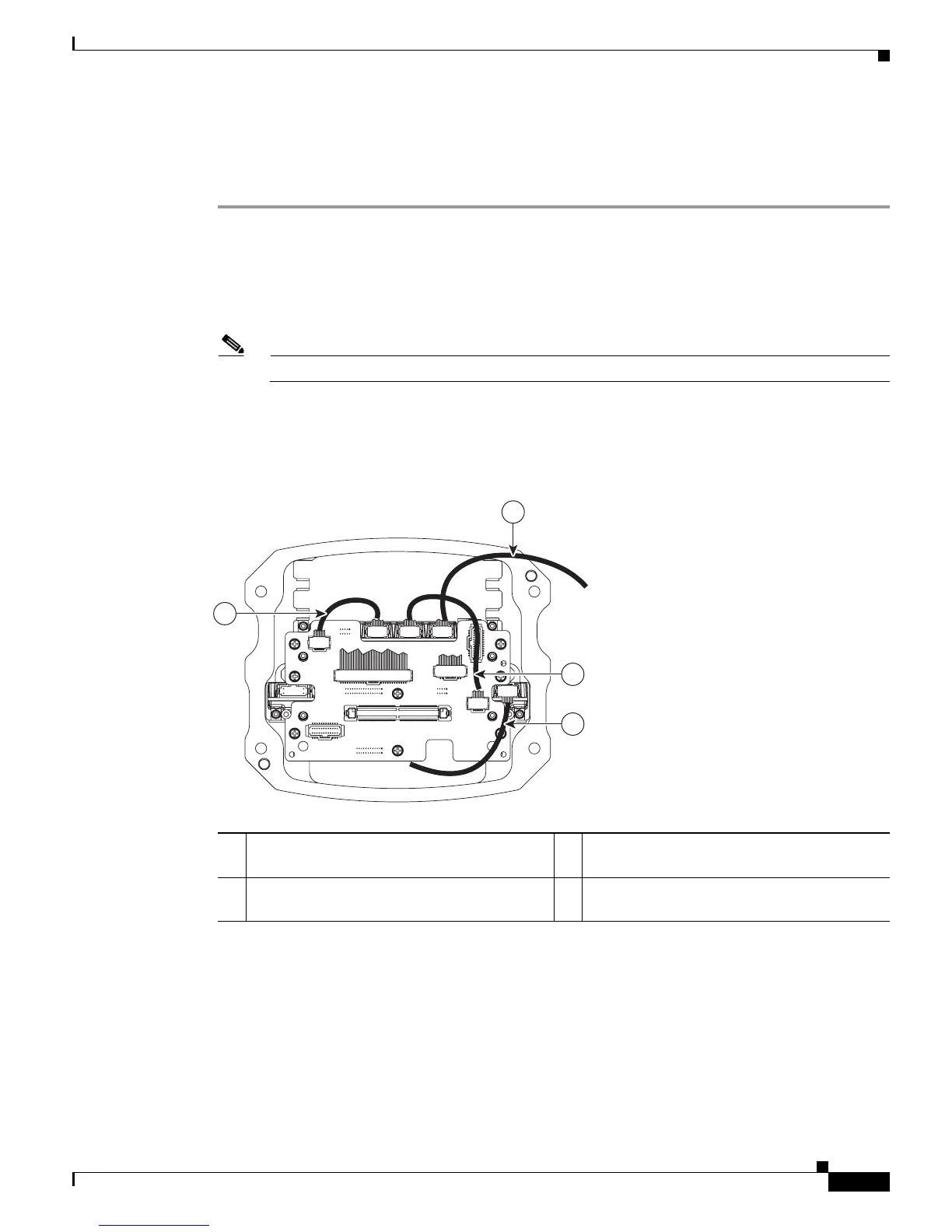

Figure 3-11 0-WMIC Configuration
For a 1-WMIC configuration, connect the cables to the wiring card as shown in Figure 3-12.
270475
1
4
3
2
1 Connect the FESMIC 10-pin FE1X cable to
port J14 on the wiring card.
2 Connect the FESMIC 10-pin FE3X cable to
port J16 on the I/O card.
3 Connect the FESMIC 10-pin FE2X cable to
port J4 on the wiring card.
4 Thread the FE extender cable under the card
stack to the antenna end cap side.
