Upgrading System Memory in Cisco 3725 Routers

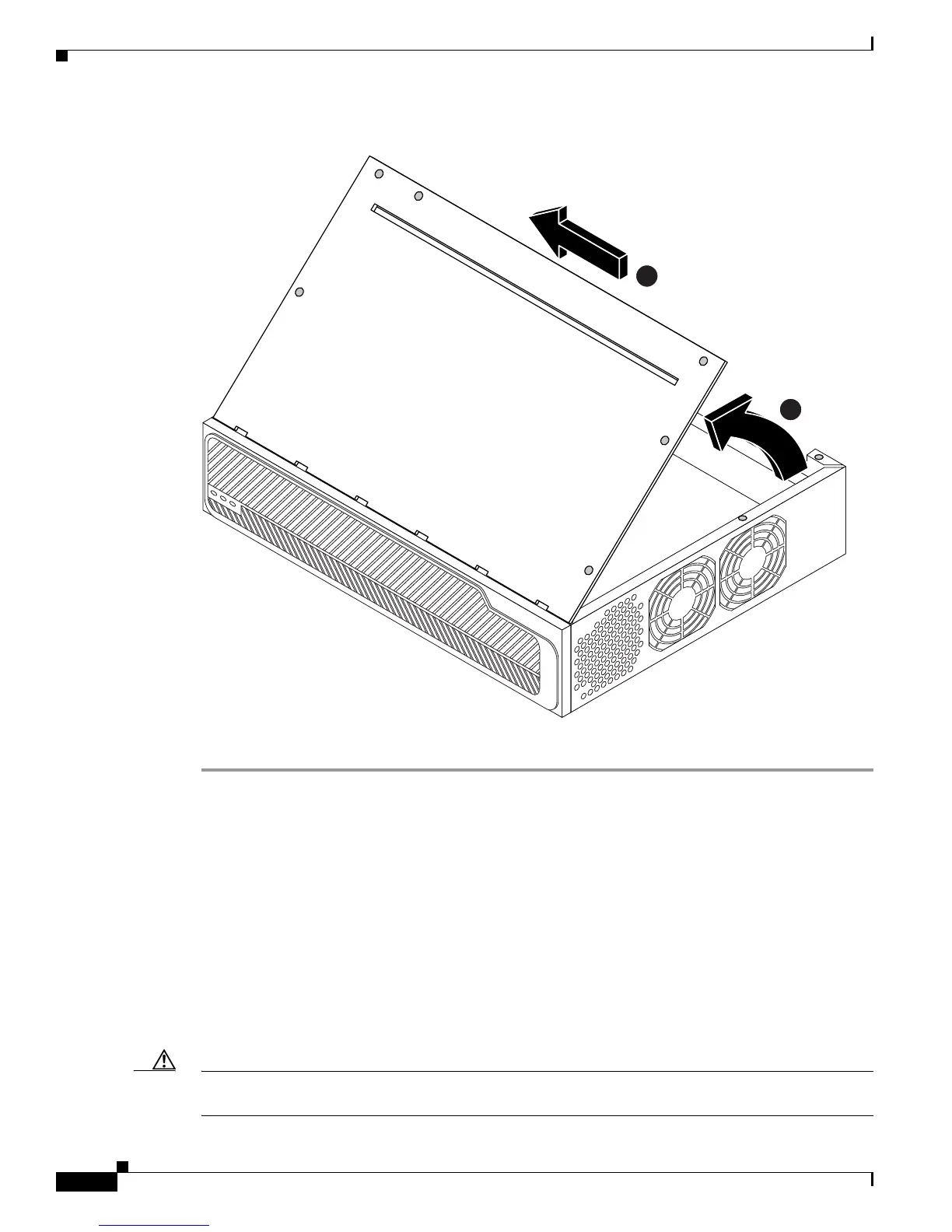

Figure 1 Removing the Cover from a Cisco 3725 Router
Step 8
When you are ready to replace the cover, see the “Replacing the Cisco 3725 Cover” section on page 16.
Replacing Cisco 3725 SDRAM
SDRAM DIMM Location and Orientation
Figure 2 shows the location of dynamic memory—SDRAM DIMM sockets 0 and 1—in a Cisco 3725
router.
DIMMs are manufactured with polarization notches to ensure proper orientation, and alignment holes to
ensure proper positioning. Figure 3 shows the polarization notches and alignment holes on a DIMM.
SDRAM DIMMs are installed with the connector edge down and the polarization notches toward the left
side of the chassis.
Caution To avoid damaging ESD-sensitive components, observe all ESD precautions. To avoid damaging the
underlying mainboard, do not use excessive force when you remove or replace DIMMs.
62488
1
2
