Cisco 3600 Series Installation Guide

5-11
Cisco 3600 Series Hardware Installation Guide
OL-2056-02
Chapter 5 Installing Memory in the Router
Replacing DRAM and SDRAM
DRAM SIMM Orientation
SIMMs have a polarization notch to ensure proper orientation and alignment holes to ensure proper
positioning. Figure 5-7 shows the polarization notch and alignment holes on a SIMM. DRAM SIMMs
are installed with the connector edge down and the polarization notch near the front of the chassis.
Caution To avoid damaging ESD-sensitive components, observe all ESD precautions. To avoid damaging the
underlying mainboard, do not use excessive force when you remove or replace SIMMs.

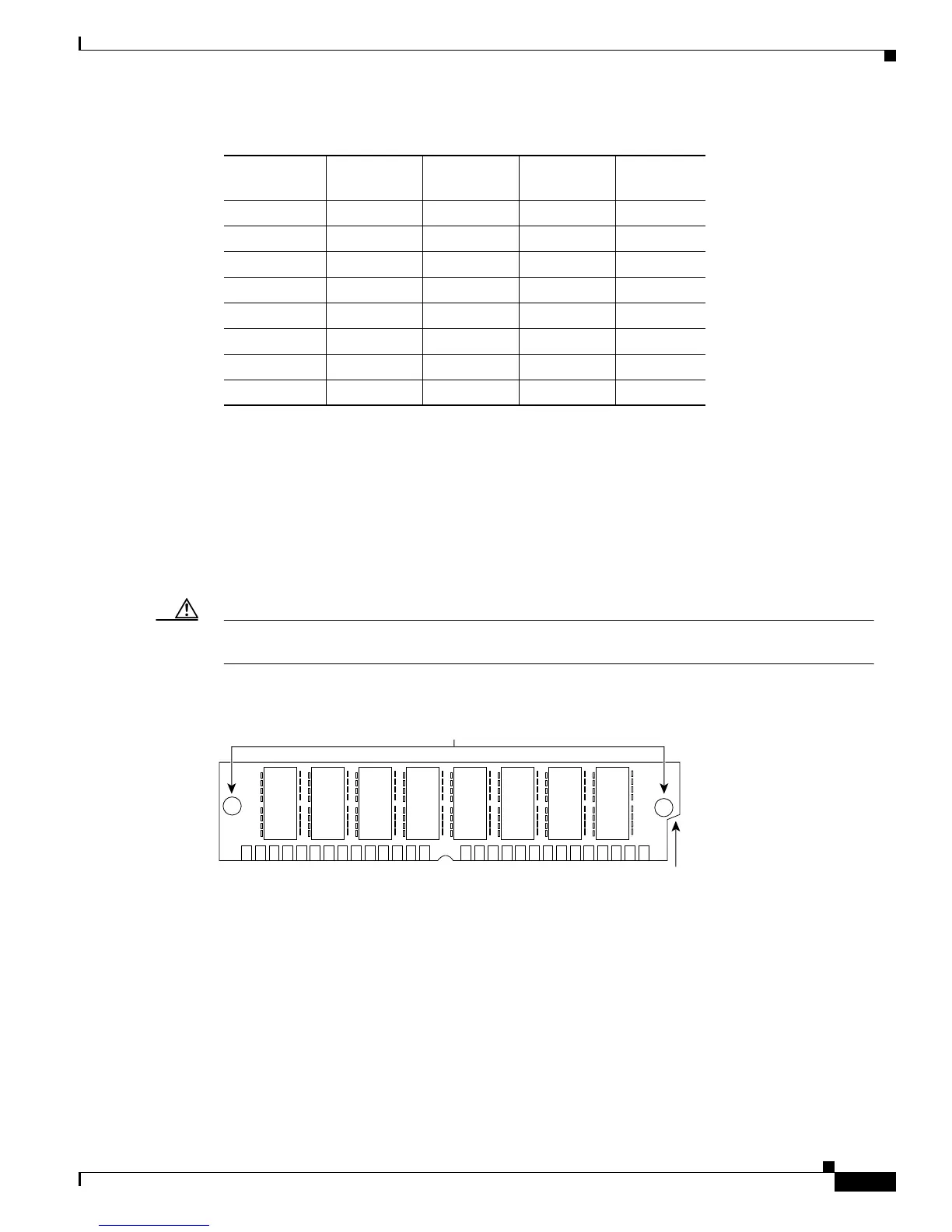

Figure 5-7 DRAM SIMM
16 MB 16 MB 8 MB-Dual 8 MB-Dual 48 MB
16 MB 16 MB 16 MB 16 MB 64 MB
32 MB-Dual
3
32 MB-Dual Not installed Not installed 64 MB
32 MB-Dual 32 MB-Dual 4 MB 4 MB 72 MB
32 MB-Dual 32 MB-Dual 8 MB 8 MB 80 MB
32 MB-Dual 32 MB-Dual 8 MB-Dual 8 MB-Dual 80 MB
32 MB-Dual 32 MB-Dual 16 MB 16 MB 96 MB
32 MB-Dual 32 MB-Dual 32 MB-Dual 32 MB-Dual 128 MB
1. 8 MB = single-bank SIMM, 8 MB in size.
2. 8 MB-Dual = dual-bank SIMM, 8 MB in size.
3. 32 MB-Dual = dual-bank SIMM, 32 MB in size.
Table 5-3 64-Bit DRAM Configuration for Cisco 3640 Routers (continued)
Bank 0
(SIMM 0)
Bank 1
(SIMM 1)
Bank 2
(SIMM 2)
Bank 3
(SIMM 3)
Total
Memory
Alignment holes
Connector edge
Polarization notch
H2407

Cisco 3600 Series Specifications

General

Operating System	Cisco IOS
Series	3600
Type	Modular Router
Interfaces	Ethernet, Fast Ethernet, Serial, ISDN
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS
Redundancy	Optional redundant power supply
Management	CLI, SNMP, Telnet
Weight	Varies depending on the specific model
Power Supply	AC or DC, optional redundant power supply
