Chapter 5 Installing Memory in the Router
Replacing DRAM and SDRAM
SDRAM DIMM Orientation
DIMMs have polarization notches to ensure proper orientation and alignment holes to ensure proper
positioning. Figure 5-12 shows the polarization notches and alignment holes on a DIMM.
Caution To avoid damaging ESD-sensitive components, observe all ESD precautions. To avoid damaging the
underlying mainboard, do not use excessive force when you remove or replace DIMMs.

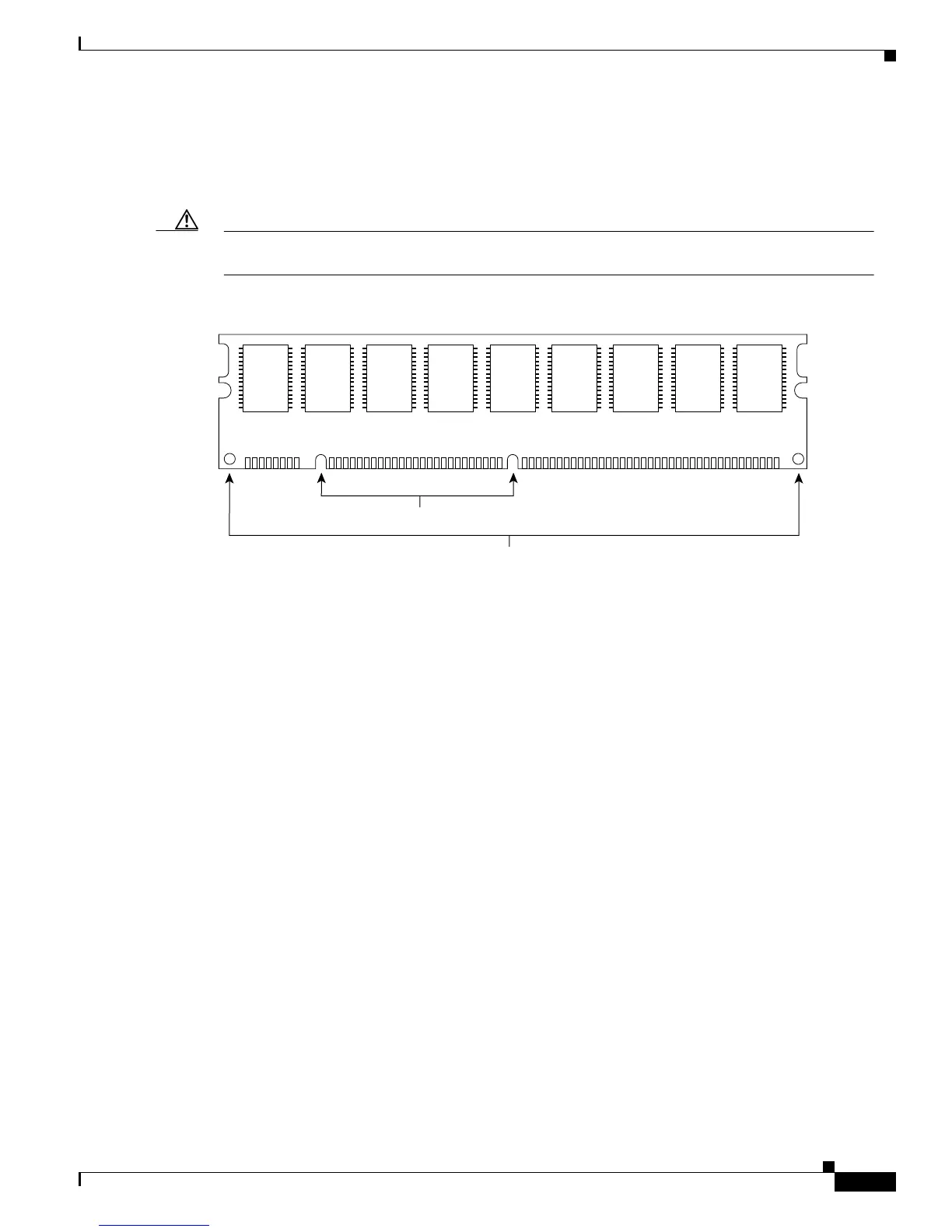

Figure 5-12 SDRAM DIMM
Polarization notches
Connector edge
17338
Alignment holes

Cisco 3600 Series Specifications

General

Operating System	Cisco IOS
Series	3600
Type	Modular Router
Interfaces	Ethernet, Fast Ethernet, Serial, ISDN
Routing Protocols	RIP, OSPF, EIGRP, BGP, IS-IS
Redundancy	Optional redundant power supply
Management	CLI, SNMP, Telnet
Weight	Varies depending on the specific model
Power Supply	AC or DC, optional redundant power supply
