Chapter 5 Installing Memory in the Router
Replacing Flash Memory SIMMs

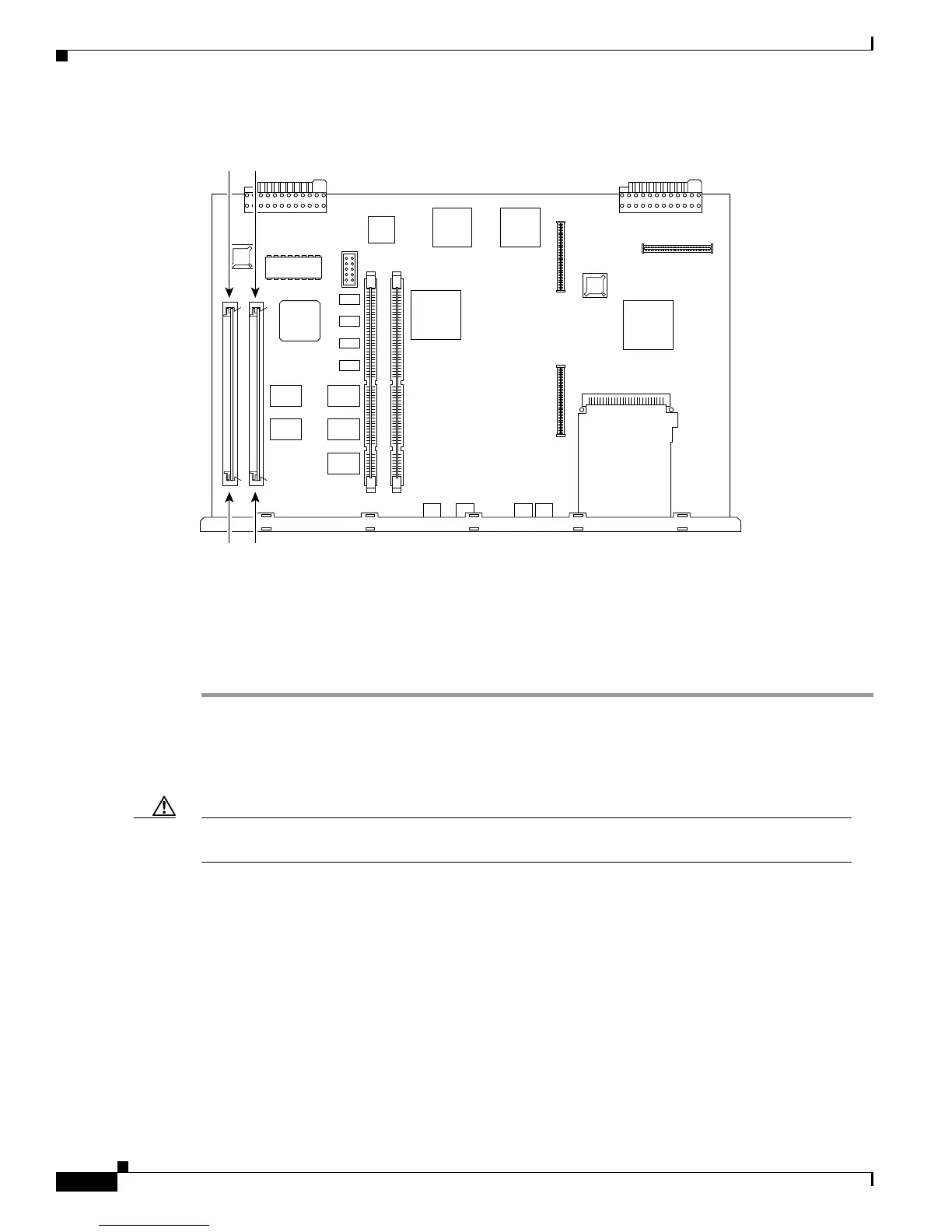

Figure 5-16 Flash Memory SIMM Locations on the Cisco 3660 Mainboard
Removing Flash Memory SIMMs
Perform this procedure to remove a Flash memory SIMM from a mainboard:
Step 1 Attach an ESD-preventive wrist strap and ensure that it makes good contact with your skin. Connect the
equipment end of the wrist strap to the metal back plate of the chassis, avoiding contact with the
connectors.
Step 2 Locate the Flash memory SIMM sockets on the mainboard. (See Figure 5-14 through Figure 5-16.)
Caution Handle SIMMs by the non-connector edges only. SIMMs are ESD-sensitive components and can be
damaged by mishandling.
Step 3 To lift the Flash memory SIMM out of its socket, pull the locking spring clips on both sides outward and
tilt the SIMM toward the left side of the chassis, free of the clips. (See Figure 5-17.)
Flash memory SIMMs
17340
10
