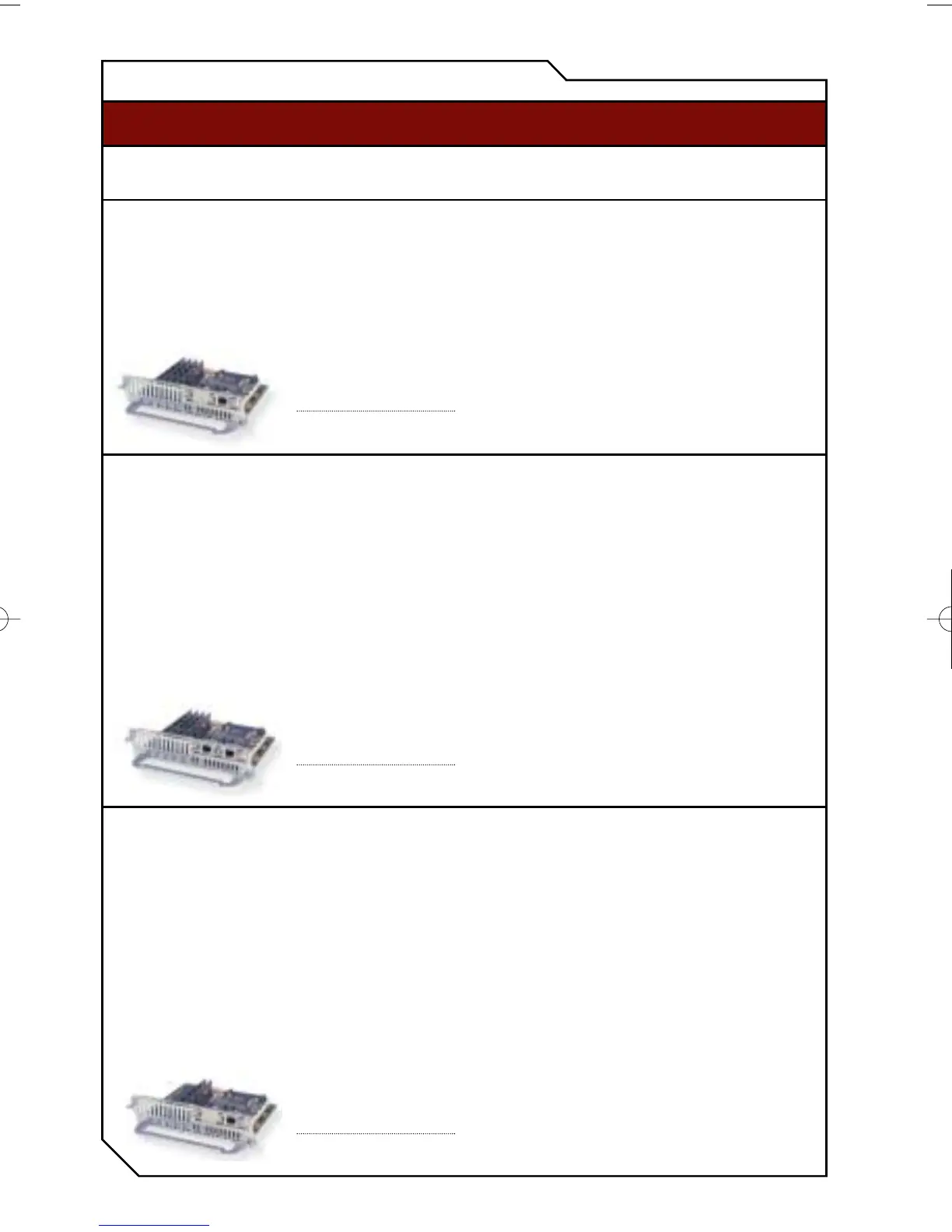

Network Modules for Cisco 2600XM, 3600, and 3700 Series
72
T1/E1/J1 Digital Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-HDV-1T1-24E
1-port 24-channel
enhanced digital T1 packet
voice trunk network
module
Provides a single T1
connection with support
for 24 channels of high-
and/or medium-
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1T1-24E is a
bundle of the following
components:
•One network module
(NM-HDV)
•One one-port T1
voice/WAN interface
card (VWIC-1MFT-T1)
•One digital signal
processor modules
(PVDM-12)
NM-HDV-2T1-48
2-port 30-channel
enhanced digital T1 packet
voice trunk network
module
Provides two T1 connections
with support for 48 channels
of medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 24
channels of high- and/or
medium-complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-2T1-48 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 2-port T1
voice/WAN interface
card (VWIC-2MFT-T1)
•Four digital signal
processor modules
(PVDM-12)
NM-HDV-1E1-12
1-port 12-channel digital
E1 packet voice trunk
network module
Provides a single E1
connection with support
for 12 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide
six channels of high-
and/or medium-complexity
voice compression using
any of the following
codecs: G.729A, G.729AB,
G.726 all versions, G.711,
G.729, G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(5)XK
3640 – 12.0(5)XK
3620 – 12.0(5)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(5)XK
2610 Series – 12.0(5)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-2T1-48 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 2-port T1
voice/WAN interface
card (VWIC-2MFT-T1)
•Four digital signal
processor modules
(PVDM-12)
