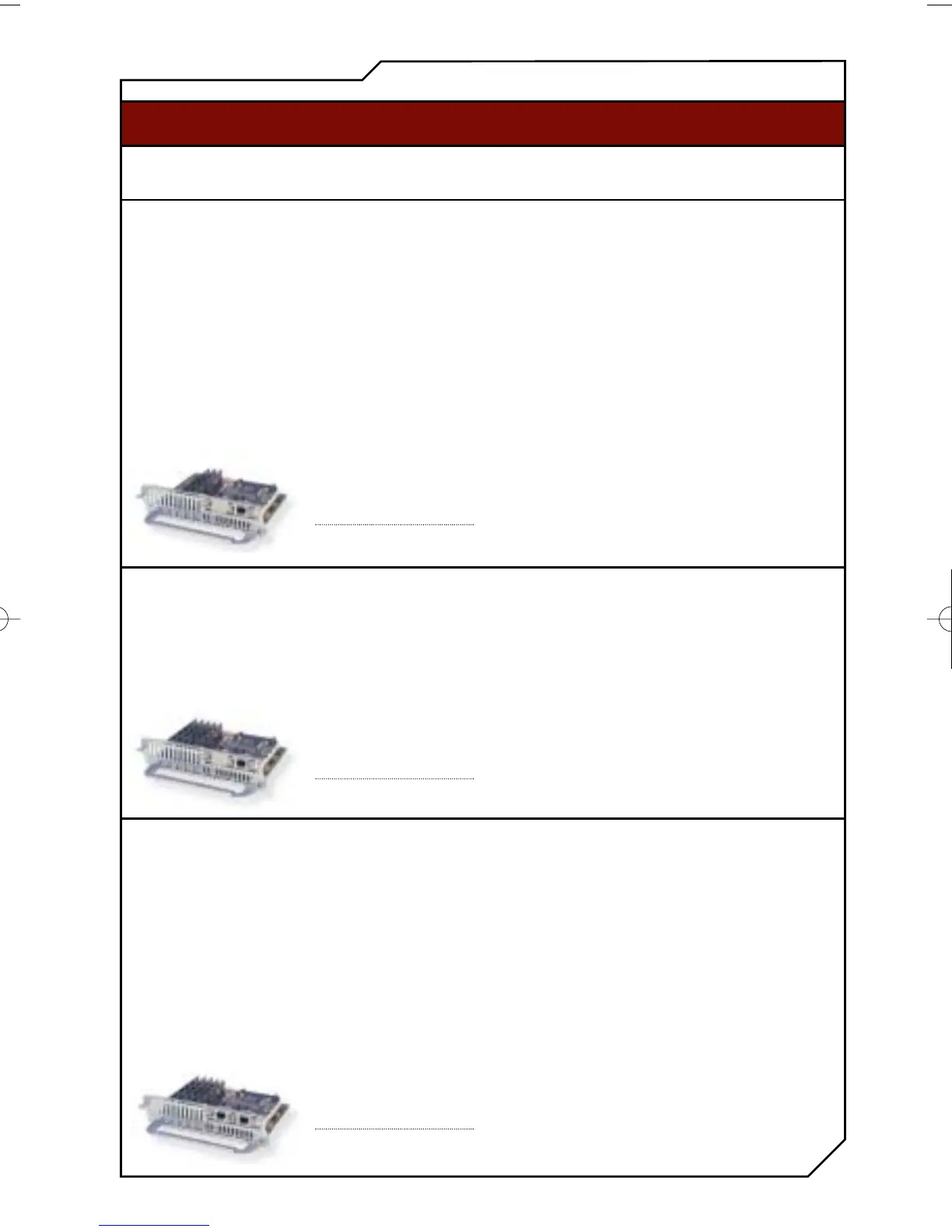

Page #73 background imageLoading...
Page #73 background image
Series Features Overview
Network Modules for Cisco 2600XM, 3600, and 3700 Series
73
T1/E1/J1 Digital Voice Network Modules
Product Description
Supported Platforms
and Minimum Cisco
IOS Versions Comments
NM-HDV-1E1-30
1-port 30-channel digital
E1 packet voice trunk
network module
Provides a single E
connection with support
for 30 channels of medium
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 18
channels of high- and/or
medium-complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(7)XK
2610 Series – 12.0(7)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1E1-30 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 1-port E1
voice/WAN interface
card (VWIC-1MFT-E1)
Three digital signal
processor modules
(PVDM-12)
NM-HDV-1E1-30E
1-port 30-channel
enhanced digital
E1 packet voice trunk
network module
Provides a single E1
connection with support
for 30 channels of high-
and/or medium-
complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726
all versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(7)XK
2610 Series – 12.0(7)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-1E1-30E is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 1-port E1
voice/WAN interface
card (VWIC-1MFT-E1)
Three digital signal
processor modules
(PVDM-12)
NM-HDV-2E1-60
2-port 60-channel digital
E1 packet voice trunk
network module
Provides two E1 connection
with support for six channels
of medium complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711 and fax
relay. This module can also
be configured to provide 30
channels of high- and/or
medium- complexity voice
compression using any of
the following codecs:
G.729A, G.729AB, G.726 all
versions, G.711, G.729,
G.729B, G.723.1 all
versions, G.728, GSM,
GSMEFR, fax relay.
Modular Router Solutions
Voice and Fax Integration
3700 Series – 12.2(8)T
3660 Series – 12.0(7)XK
3640 – 12.0(7)XK
3620 – 12.0(7)XK
2691 – 12.2(8)T1
2600XM Series – 12.1(14)
mainline, 12.2(12) mainline
(future), 12.2(8)T1
2650 Series – 12.1(3)T
2620 Series – 12.0(7)XK
2610 Series – 12.0(7)XK
Requires a Cisco IOS
”Plus” feature set.
The NM-HDV-2E1-60 is a
bundle of the following
components:
•One network module
(NM-HDV)
•One 2-port E1
voice/WAN interface
card (VWIC-2MFT-E1)
•Five digital signal
processor modules
(PVDM-12)
AccessRouter_10.21.02 10/24/02 3:31 PM Page 73
