Cisco 3700 Series Routers Hardware Installation Guide
OL-2180-08
Chapter 1 Overview of Cisco 3700 Series Routers
Interface Numbering

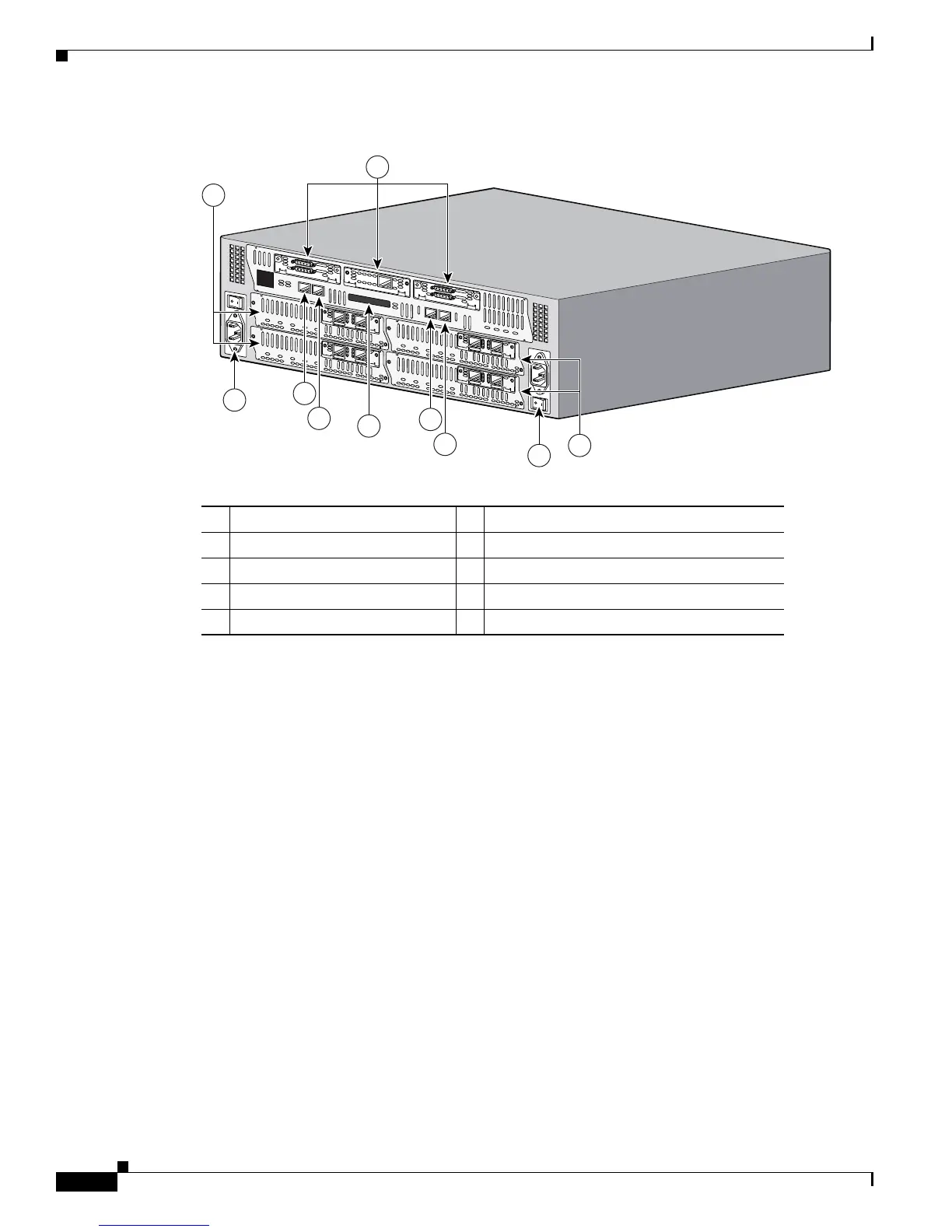

Figure 1-4 Cisco 3745 Rear Panel
Voice Interface Numbering
Voice interfaces are numbered differently from the WAN interfaces described in the previous section.
Voice interfaces are numbered as follows:
network-module-slot/voice-module-slot/voice-interface
If a 4-channel voice network module is installed in chassis slot 1, the voice interfaces are:
• 1/0/0—Network module slot 1/Voice module slot 0/Voice interface 0
• 1/0/1—Network module slot 1/Voice module slot 0/Voice interface 1
• 1/1/0—Network module slot 1/Voice module slot 1/Voice interface 0
• 1/1/1—Network module slot 1/Voice module slot 1/Voice interface 1
1 Interface card slots 6 Cisco 3700 CompactFlash memory card slot
2 Network modules 7 Auxiliary port
3 Power supply 8 Console port
4 Fast Ethernet 0/0 port 9 Power supply
5 Fast Ethernet 0/1port 10 Network modules
63390
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
EN
V0
BANK 4
BANK 3
BANK 2
BANK 1
BANK 0
NM-HDV
VWIC
2MFT-E1
SEE
MANUAL
BEFORE
INSTALLATION
CTRLR E2
CTRLR E1
AL
LP
CD
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2T
SEE MANUAL BEFORE INSTALLATION
SERIAL 1
SERIAL 0
CONN
CONN
WIC
2T
SEE MANUAL BEFORE INSTALLATION
DSU
56K
CD
AL
LP
RD
TD
8
7
6
9
3
5
4
2
1
10

Cisco 3700 Specifications

General

Routing Protocols	BGP, OSPF, EIGRP, RIP, IS-IS
Connectivity Technology	Wired
Remote Management Protocol	SNMP, Telnet, SSH, HTTP, HTTPS
Operating System	Cisco IOS
Interfaces	Varies by module
Performance	Varies by configuration
Security Features	Firewall, VPN, ACLs, IPS
Product Type	Router
Data Link Protocol	Ethernet, Fast Ethernet, Gigabit Ethernet
Network/Transport Protocol	TCP/IP, UDP
Features	QoS
Router Type	Modular
WAN Interfaces	Varies by module
LAN Interfaces	Ethernet, Fast Ethernet, Gigabit Ethernet
Processor	Varies by model
Memory	Varies by model
Flash Memory	Varies by model
Dimensions	Varies by model
Weight	Varies by model
Form Factor	Rack-mountable
Power Supply	Internal AC power supply, optional redundant power supply
