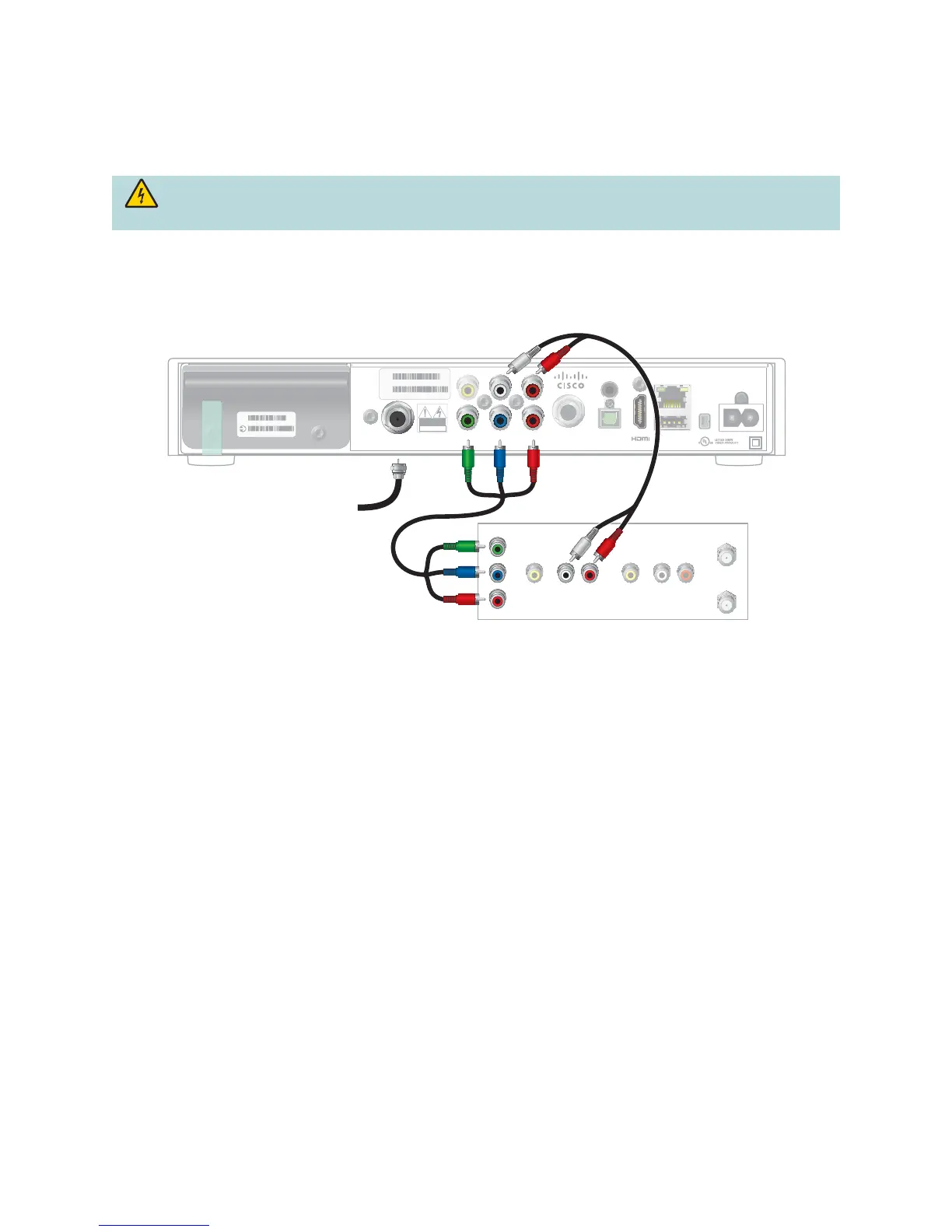

Connecting the Set-Top in HD Mode to an SDTV with
Component Input (YPbPr)
WARNING: Electric shock hazard! Unplug all electronic devices before connecting or
disconnecting any device cables to the set-top.
Note: The set-top must be set to the
proper output mode, typically 480i.
Required cables:
• 1 component video cable with 3 connectors (YPbPr)
• 1 audio Left/Right cable
