D-14

Catalyst 4948E and Catalyst 4948E-F Switch Installation Guide

OL-21561-02

Appendix D Regulatory Compliance and Safety Information

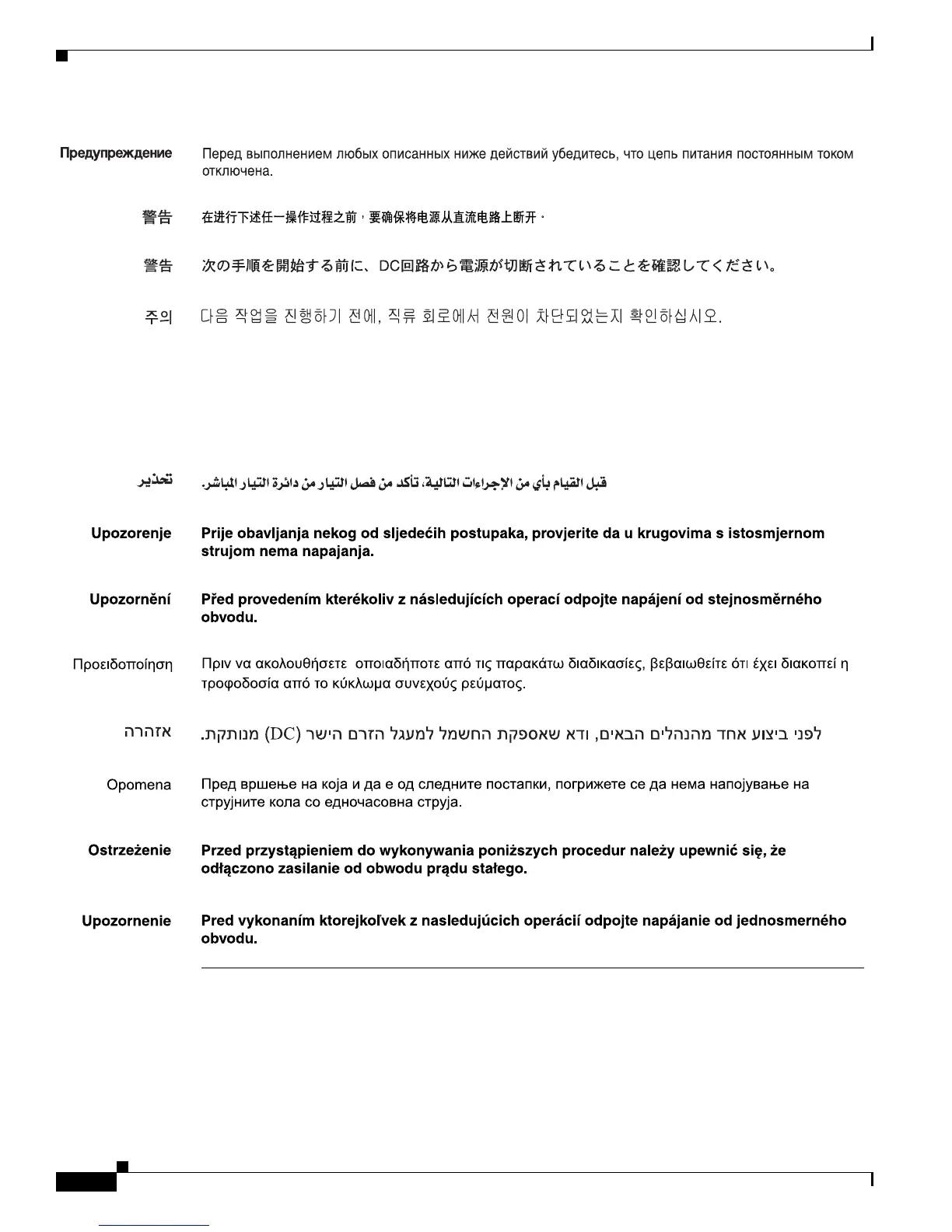

Translated Safety Warnings

Aviso

Antes de executar qualquer um dos procedimentos a seguir, verifique se a energia foi removida do

circuito DC.

Advarsel

Før du udfører nogen af følgende procedurer, skal du sikre dig, at der ikke er strøm til

jævnstrømskredsløbet.
