Catalyst 4948E and Catalyst 4948E-F Switch Installation Guide
OL-21561-02
Chapter 3 Installing the Switch
Attaching the Interface Cables

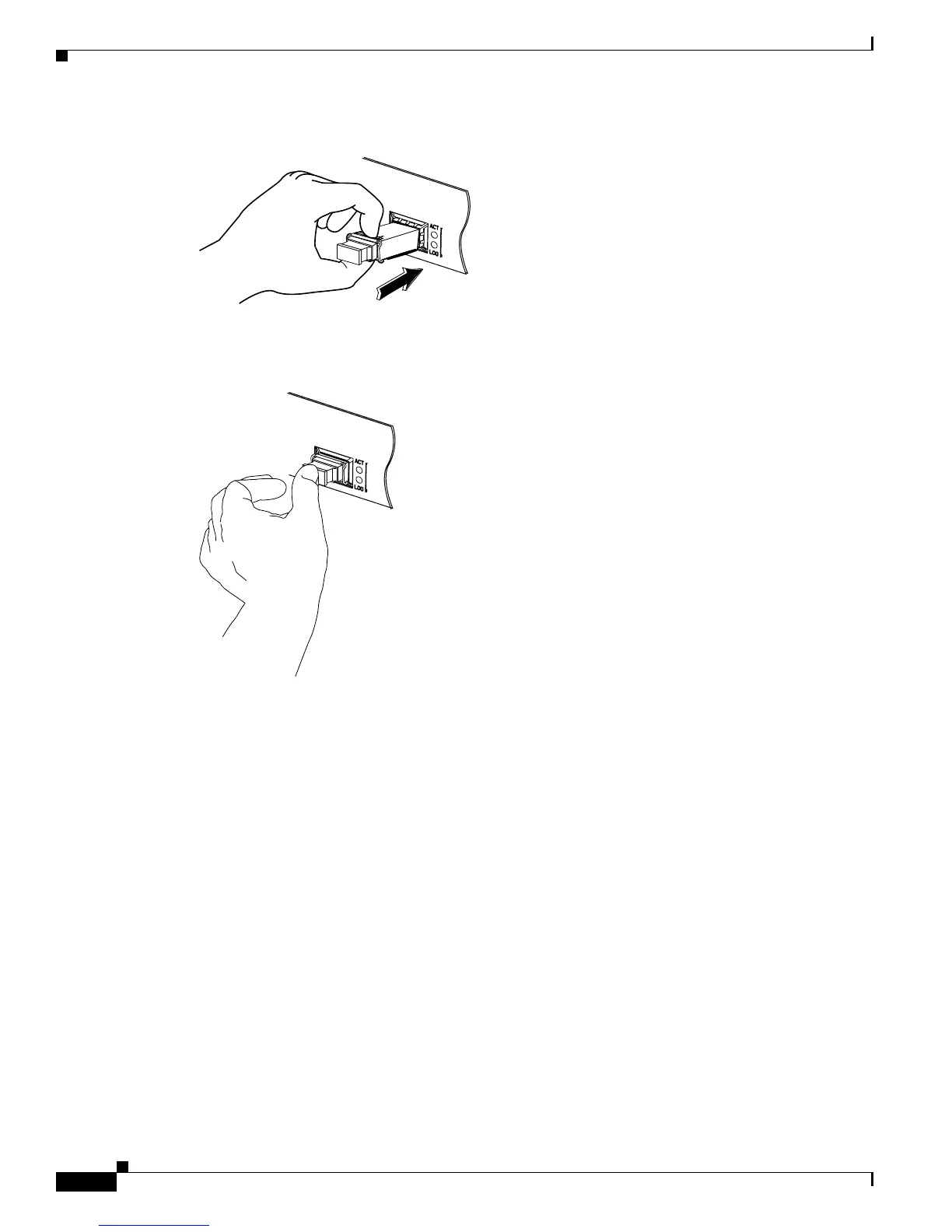

Figure 3-10 Inserting an SFP Transceiver into a Socket
Step 7 Press the SFP transceiver into the slot firmly with your thumb as shown in Figure 3-11.
Figure 3-11 Latching the SFP Transceiver
Step 8 To verify that the SFP transceiver is seated and latched properly:
a. Grasp the SFP transceiver as shown in Figure 3-12 and try to remove it without releasing the latch.
b. If the SFP transceiver cannot be removed, it is installed and seated properly. If the SFP transceiver
can be removed, reinsert it and press harder with your thumb, repeating if necessary until it is latched
securely into the socket.
