Cisco 7609 Installing

Chapter 3 Installing the Cisco 7609 Internet Router
Attaching the Interface Cables
3-18
Cisco 7609 Internet Router Installation Guide
OL-5079-04
Connecting the Supervisor Engine Uplink Ports
This section describes how to connect to the supervisor engine uplink ports.
Warning Because invisible laser radiation may be emitted from the aperture of the
port when no cable is connected, avoid exposure to laser radiation and do
not stare into open apertures.
Note In a redundant configuration with two supervisor engines, the uplink ports on
the redundant (standby) supervisor engine are active and can be used for
normal traffic, like any other ports in the chassis.
To connect to the supervisor engine uplink ports, perform these steps:
Step 1 Remove the plugs from the Gigabit Interface Converter (GBIC) optical bores;
store them for future use.
Step 2 Remove the plugs from the SC-type connector on the fiber-optic cable. Insert the
connector into the GBIC. (See Figure 3-8.)

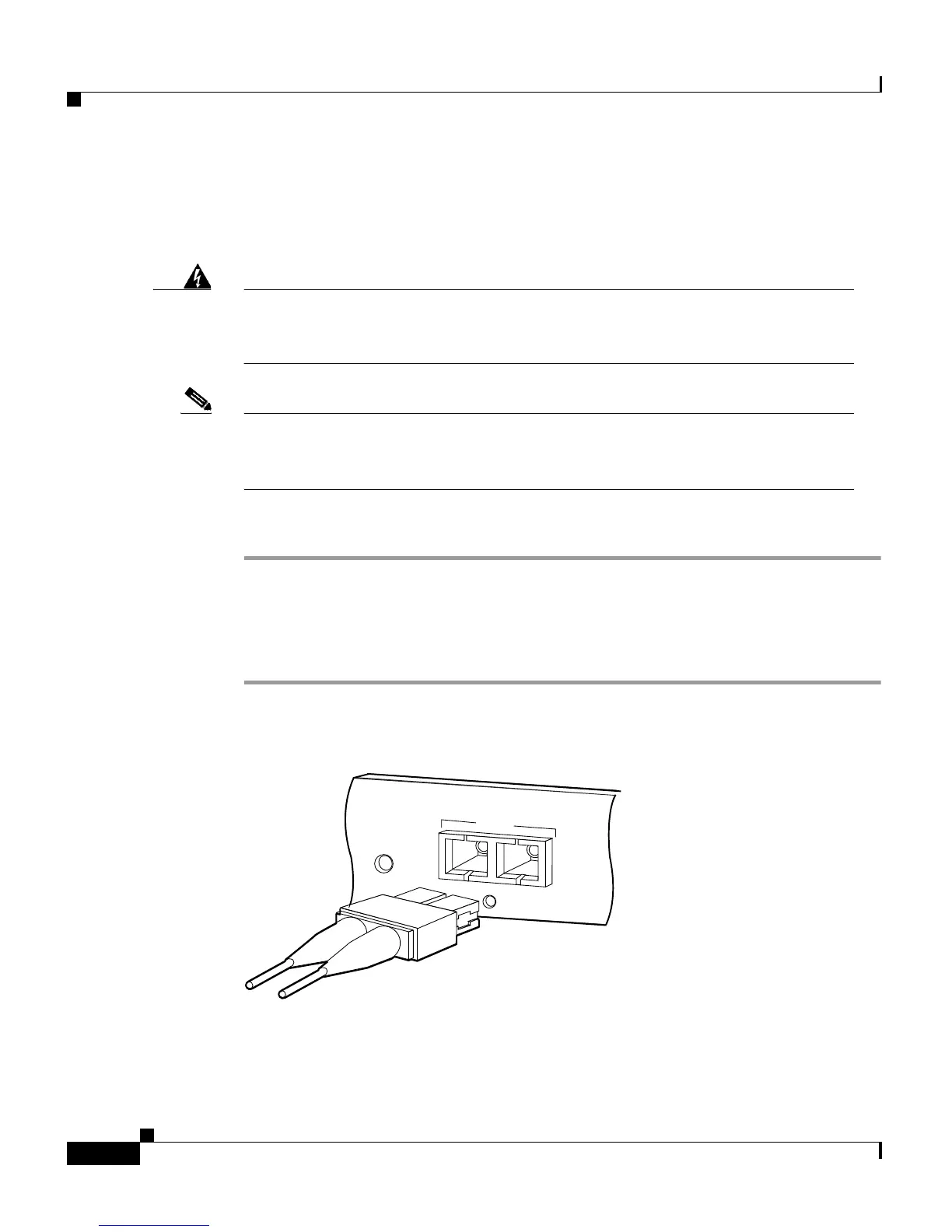

Figure 3-8 Connecting the Supervisor Engine Uplink Ports
LINK
PORT 1
48128

Cisco 7609 Specifications

General

Chassis Slots	9
Switch Fabric Capacity	720 Gbps
Power Supply Options	AC or DC
Product Type	Router
Form Factor	Rack-mountable
Supported Line Cards	Various Cisco 7600 Series line cards
Operating System	Cisco IOS
Management	CLI, SNMP
Forwarding Performance	400 Mpps
Maximum Power Consumption	4000 Watts
Redundancy	Yes
Interfaces/Ports	Various, depending on line cards installed
