Cisco 7609 Internet Router Installation Guide
OL-5079-04
Chapter 3 Installing the Cisco 7609 Internet Router
Installing the Cisco 7609 Chassis in the Rack

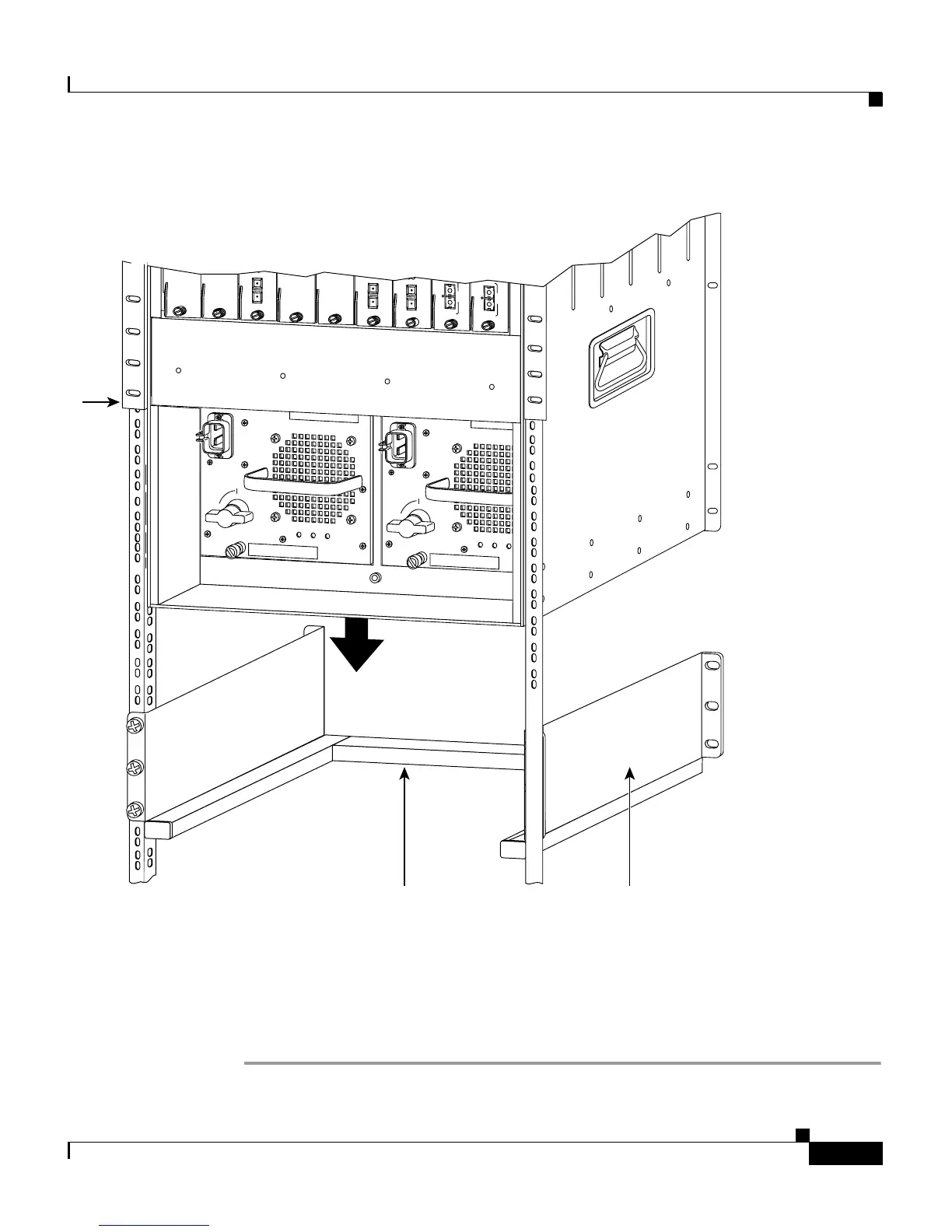

Figure 3-4 Installing the Cisco 7609 Chassis in the Rack
Step 5
Install the eight or ten (four or five per side) 12-24 x 3/4-inch or 10-32 x 3/4-inch
screws through the holes in the L bracket and into the threaded holes in the
equipment rack posts.
Step 6 Use a tape measure and level to verify that the chassis is installed straight and
level.
55740
Crossbar bracket
L
bracket
Shelf bracket
INPUT
OK
FAN
OK
OUTPUT
FAI L
o
INPUT
OK
FAN
OK
OUTPUT
FAI L
o
P
O
R
T
2
P
O
R
T
2
LINK
TX
RX
TX
RX
ACTIVE
TX
RX
TX
RX
ACTIVE
TX
RX
TX
RX
