Cisco 7941 - Basic Call Handling Features; Phone Installation and Setup; Placing and Answering Calls

Creating Extension
STEP ONE: Add Extension.

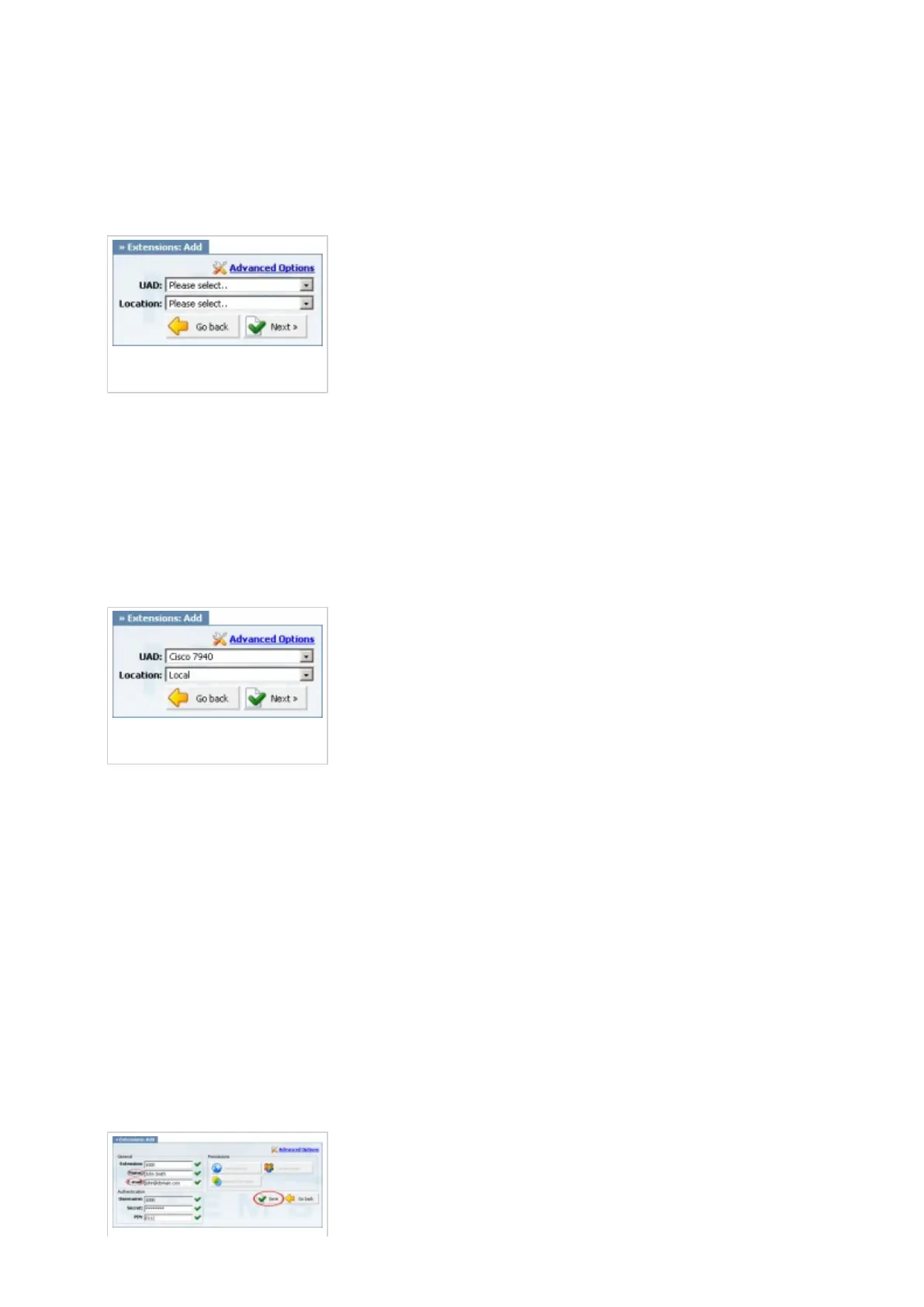

1. Navigate to "Extensions". Click on "Add Extension".
2. The standard options window will be shown below.
Creating
Extension/Extensions Add
3. Select Cisco 7941 from "UAD" select box.
4. Select Location: "Local" or "Remote".
Note:
-"Local" is for all extensions registered on LAN.
-"Remote" is for all extensions registered from remote networks, WAN, Internet etc.
Creating
Extension/Extensions Add
5. Click on the "Next" button.
STEP TWO: Extension values.
1. Enter values into the required field text boxes.
REQUIRED FIELDS:
Name:
Enter a name for the extension being created. Example: John Smith.
E-mail:
Enter the e-mail address associated with this extension. This e-mail address will receive all
system notification messages. Example: john@domain.com.
