Connecting Your Phone

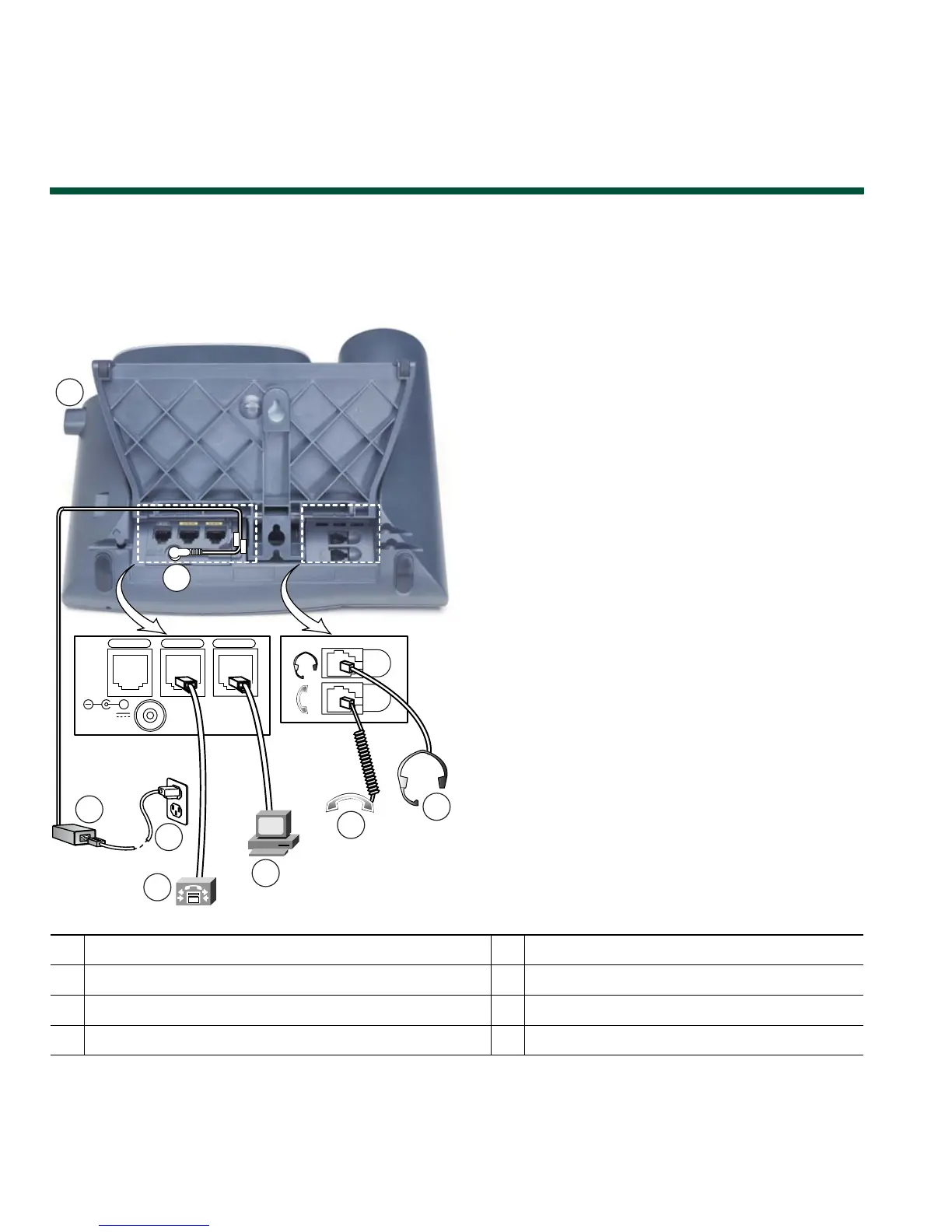

Your system administrator will likely connect your new Cisco Unified IP Phone to the corporate IP
telephony network. If that is not the case, refer to the graphics and table below to connect your phone.
1
DC adaptor port (DC48V)
5
Access port (10/100
1
PC)
2
AC-to-DC power supply
6
Handset port
3
AC power cord
7
Headset port
4
Network port (10/100
1
SW)
1. Your phone may show 10/100/1000.
8
Footstand button
AUX
DC48V
10/100 SW 10/100 PC
+
