Installing and Configuring Cisco 802 IDSL and Cisco 804 IDSL Routers
78-10368-03
Connecting Cables to the Router
Connecting Cables to the Router
The following figures show the router ports. These ports and the cables are color-coded to help you
connect the cables correctly.
For more information, see the following subsections:
• Connecting an Ethernet Device
• Connecting a Hub
• Connecting a Server, PC, or Workstation
• Connecting an IDSL Line
• Connecting the Power Supply
• Verifying Router Connections

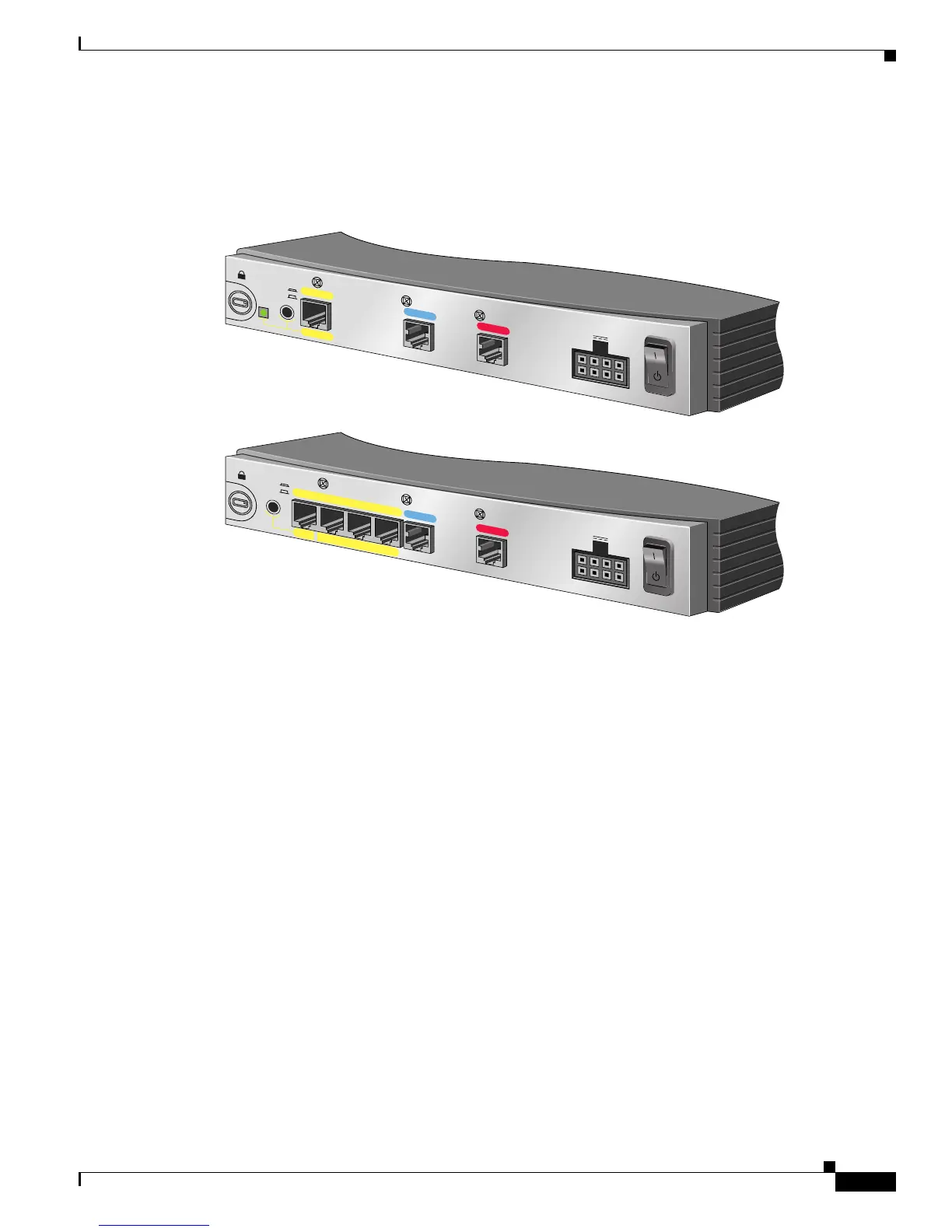

Cisco 802 IDSL Router
Cisco 804 IDSL Router
TO HUB
TO PC
Cisco 804 IDSL
4
3
2
1
ETHERNET 10 BASE T
CONSOLE
IDSL
Cisco 802 IDSL
CONSOLE
IDSL
LINK
TO HUB
TO PC
ETHERNET
10BASE T
+5, -24, -71 VDC
+5, -24, -71 VDC
