Chapter 1 Product Overview
Cisco 860, 880, 890 Series
For information on installing Cisco C890 Series Routers, see the following link:
http://www.cisco.com/c/en/us/td/docs/routers/access/800/hardware/installation/guide/800HIG.html
Cisco C897VAG-LTE Integrated Service Router

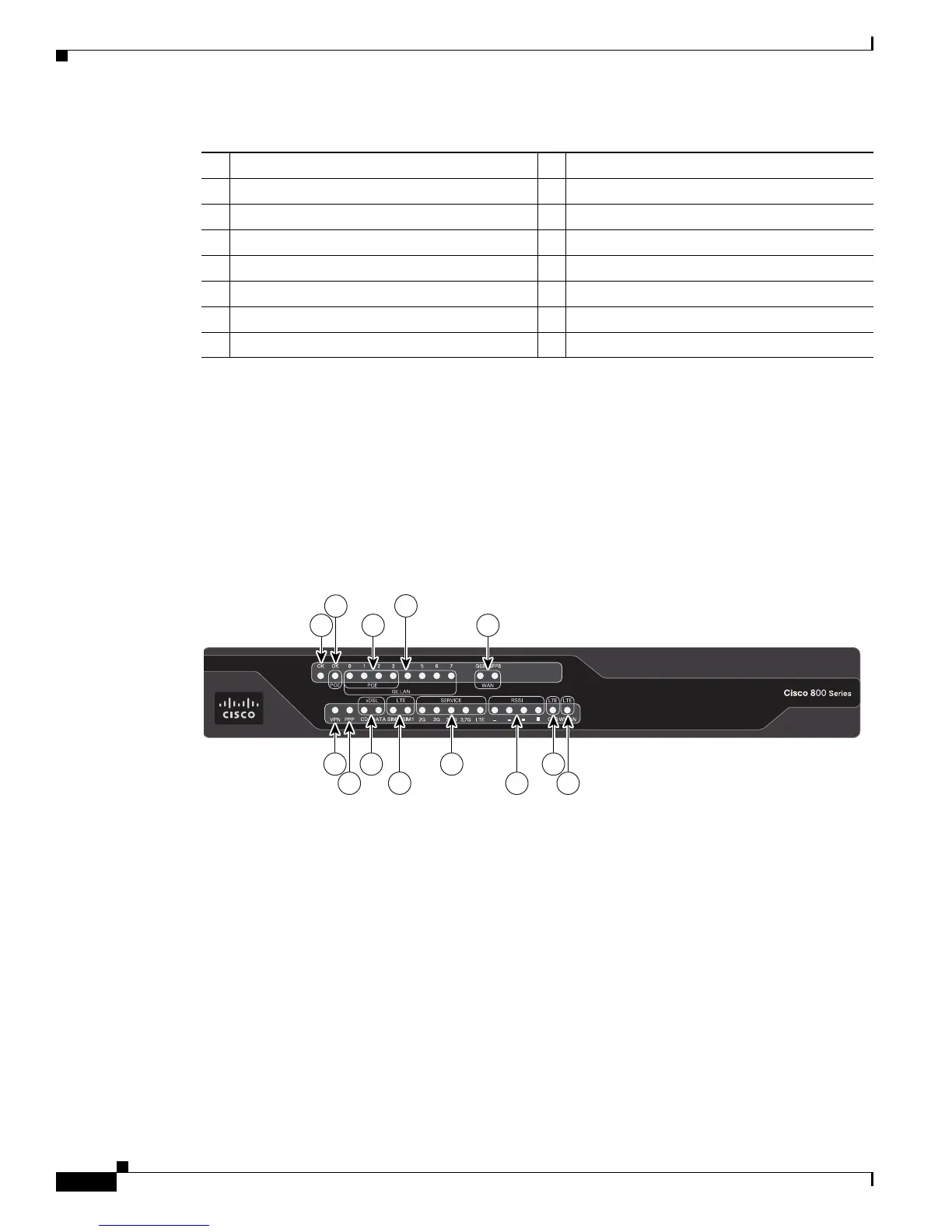

Figure 1-50 shows the front panel of the Cisco C897VAG-LTE ISR.
Figure 1-50 Front Panel of the Cisco C897VAG-LTE ISR
1 GE WAN interface 9 On/Off switch
2 SFP port 10 Reset button
3 4G port 11 Earth ground connection
4 USB port 12 Kensington security slot
5 SIM slots 13 4G antenna connector—M1/DIV
6 8-port Gigabit Ethernet switch 14 Active GPS antenna connector
7 Console / Auxiliary port 15 VDSL or ADSL over ISDN
8 Power connector 16 4G antenna connector—M0/MAIN
372531
1 3
2
4
5
6
7
8
9
10
11
12
13
