1-41
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series
Common Features
The following key features are common to each of these router models:
Dual WAN interface (Gigabit Ethernet [GE] and dual-mode ADSL2+ /VDSL2)
2.4 GHz wireless LAN (WLAN) interface
Five Layer 2 LAN switches: two Gigabit Ethernet and three Fast Ethernet
One USB 2.0 port in high-speed host mode
One RJ-45 console port (RS-232 interface)
Support for up to 512 MB DRAM using DDR in 16-bit mode
Support for 8 MB Serial Peripheral Interface Bus (SPI) flash memory for boot and 128 MB NAND
flash memory for storing IOS
Reset/Recovery switch
Silent convection cooling—no fan
External Interfaces

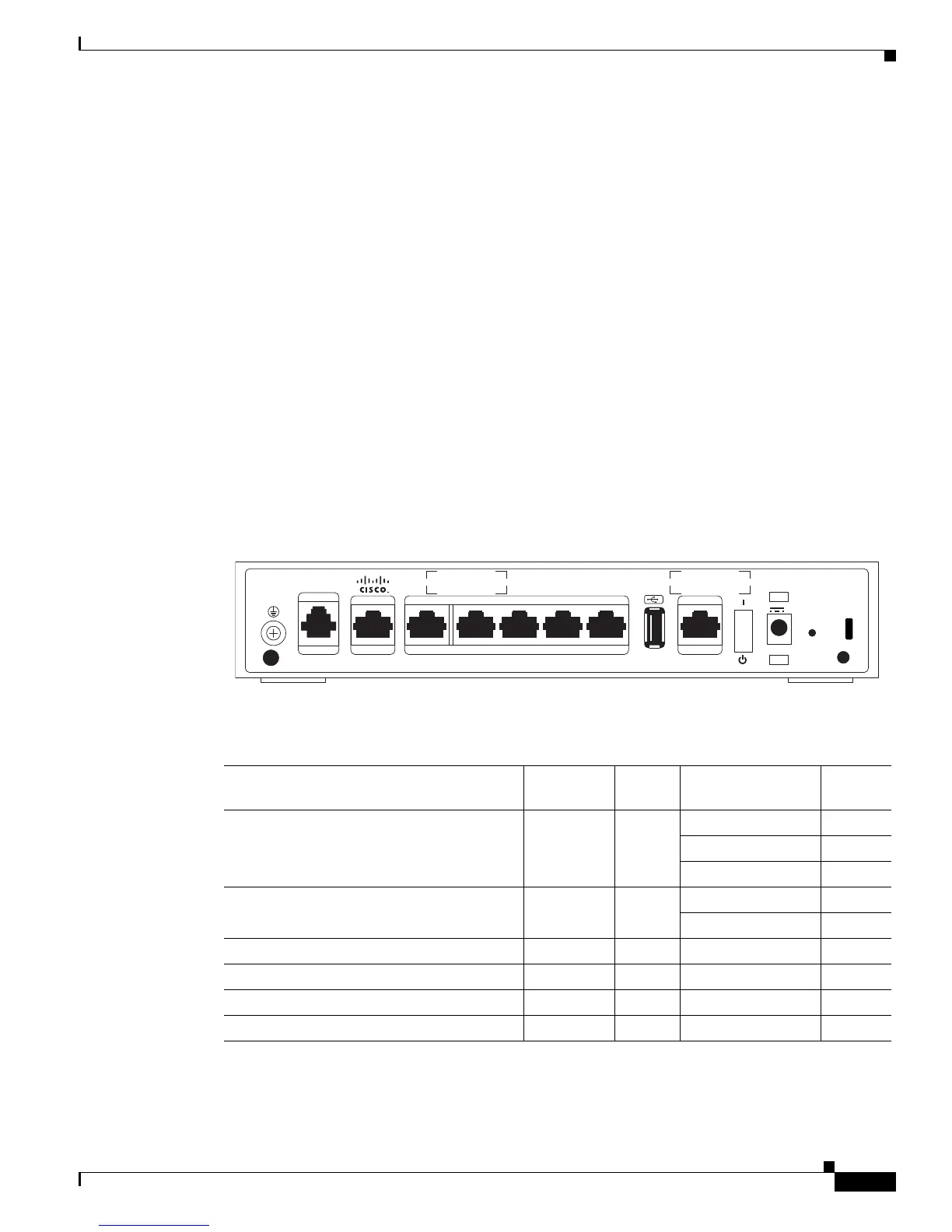

Figure 1-16 shows the back I/O panel of the Cisco 867VAE-POE-W-A-K9 series router.
Figure 1-16 Back I/O Panel
Table 1-23 describes the external interfaces included with these router models.
VDSL/ADSL
WAN
GE2
LAN
GE1OVER POTS
CONSOLE
12V
RESET
2.5A
AUX
GE0 FE2 FE1
Cisco 867VAE-POE-W-A-K9
FE0(POE)
360426
Table 1-23 External Interfaces
Interface Connector Quantity Port
Port
Label
FE LAN port RJ-45 3 FE LAN PORT 0 FE0
1
1. Provides Power-over-Ethernet (PoE) for the Cisco C867VAE-POE-W-A-K9.
FE LAN PORT 1 FE1
FE LAN PORT 2 FE2
GE LAN port RJ-45 2 GE LAN PORT 0 GE0
GE LAN PORT 1 GE1
GE WAN port (10/100/1000 Base-T) RJ-45 1 GE WAN PORT GE2
ADSL2+/VDSL2 WAN port RJ-11 1
Host USB port USB 2.0 1
Console port RJ-45 1
