Cisco 860VAE Series User Manual

3-19
Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

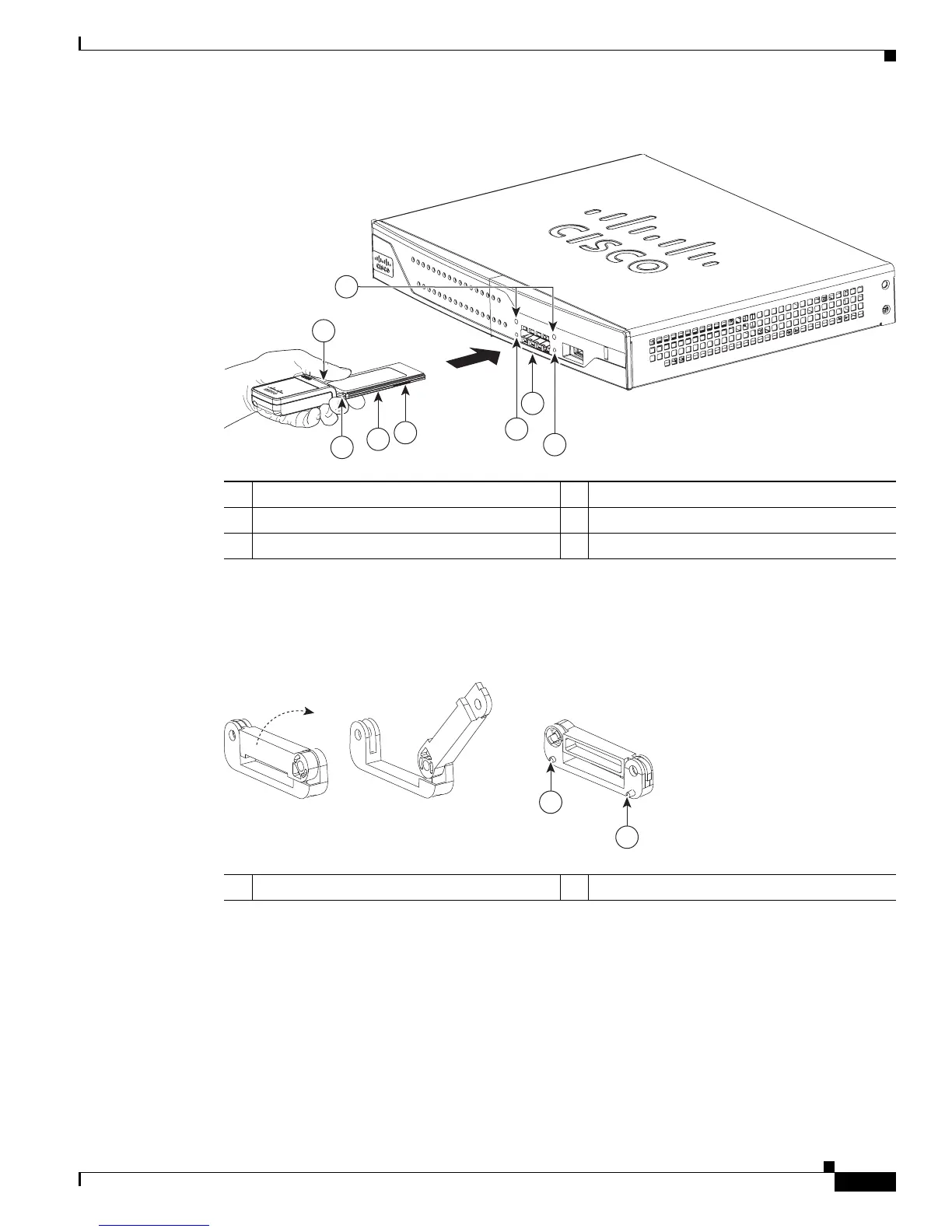

Figure 3-13 Inserting the 3G Card
Step 2
Open the top of the anti-theft locking bracket, as shown in Figure 3-14.
Figure 3-14 Opening the Anti-theft Locking Bracket
1 3G card with the Cisco logo facing up 4 Screw holes for locking bracket
2 3G express card slot 5 Pin holes for aligning the locking bracket
3 Notches on the 3G card 6 SIM slot (in HSPA
1
cards only)
1. HSPA = High-Speed Packet Access.
271473
1
6
2
5
4
5
3
3
1 Pins on the locking bracket for alignment
271474
Front View Back View
1
1
