Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

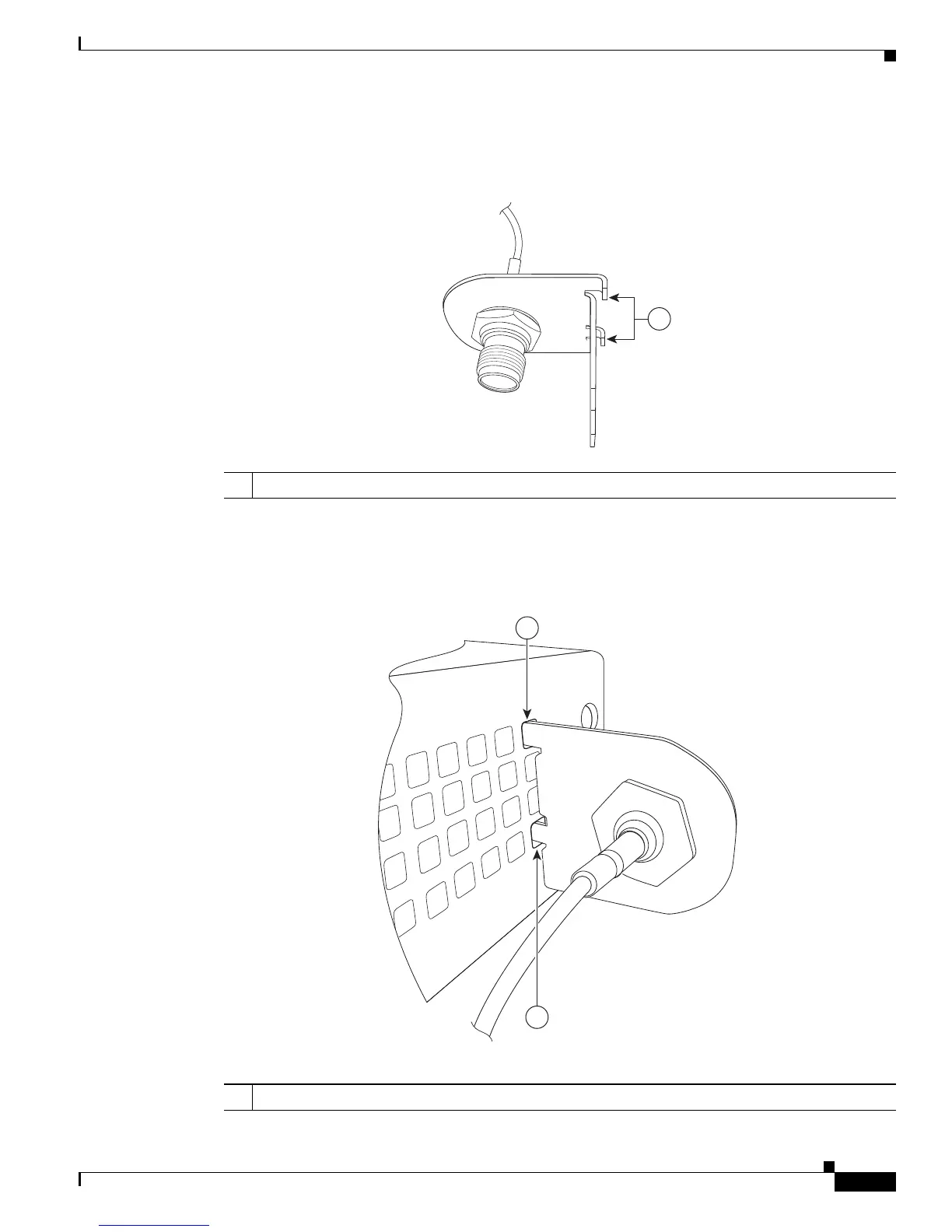

Step 2 Locate the hooks on the adapter as shown in Figure 3-21.
Figure 3-21 Locating the Hooks on the Adapter
Step 3
Align and insert the hooks of the adapter into the air vent holes on the left side router body as shown in
Figure 3-22.
Figure 3-22 Inserting the Hooks
279122
1
1 Hooks on the adapter
279123
1
1
1 Hooks aligned and inserted into the router.
