Cisco Integrated Services Router Hardware Installation Guide
Chapter 3 Connecting the Router
Cisco 860, 880, 890 Series

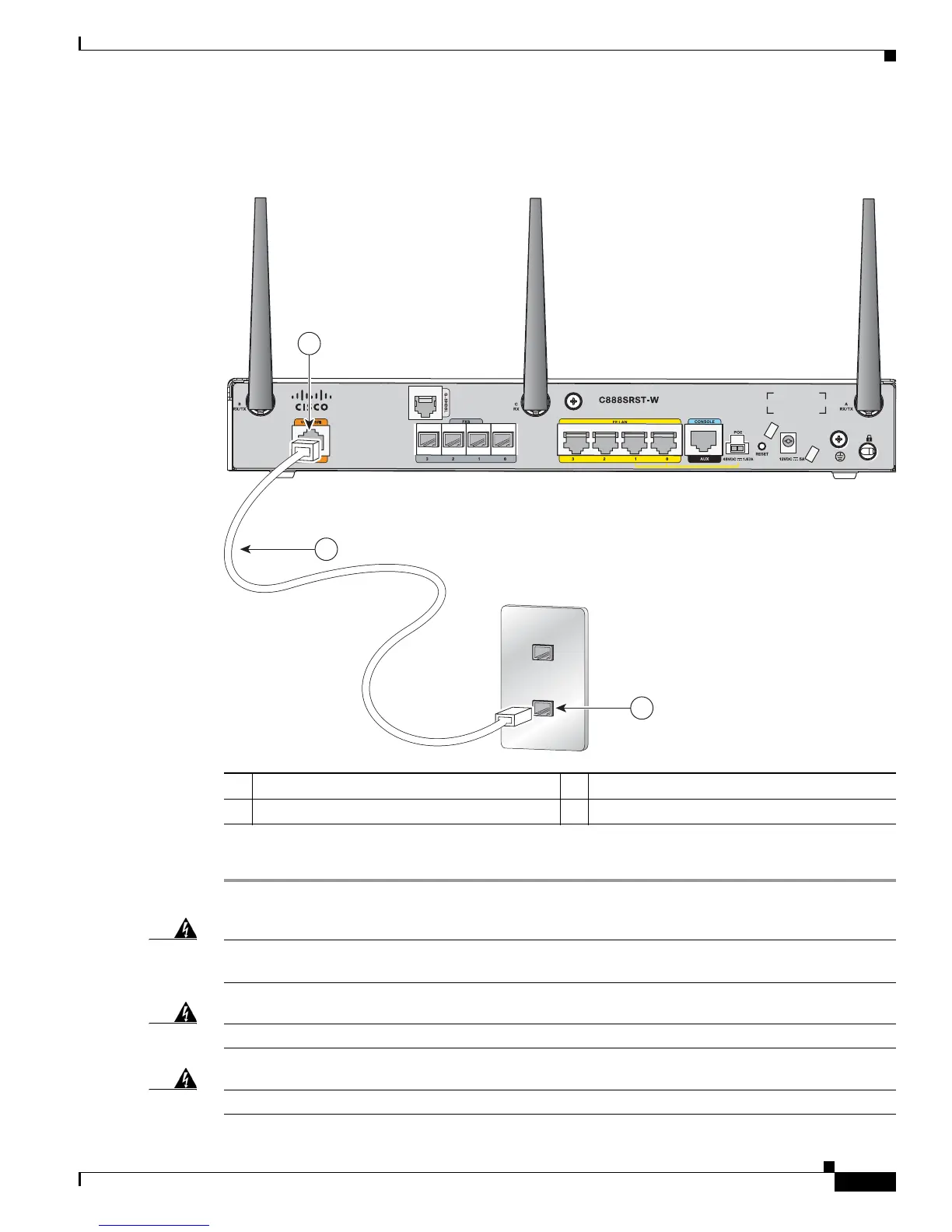

Figure 3-38 shows a voice BRI line connection.
Figure 3-38 Connecting a Voice BRI Line
Step 2 Connect the other end of the cable to the RJ-45 telephone outlet or other device.
Warning Invisible laser radiation may be emitted from disconnected fibers or connectors. Do not stare into
beams or view directly with optical instruments. Statement 1051
Warning Do not stare into the laser beam. Statement 1010
Warning Invisible laser radiation present. Statement 1016
1 Voice BRI port 3 Telephone outlet
2 RJ-45 cable
