1-109
Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

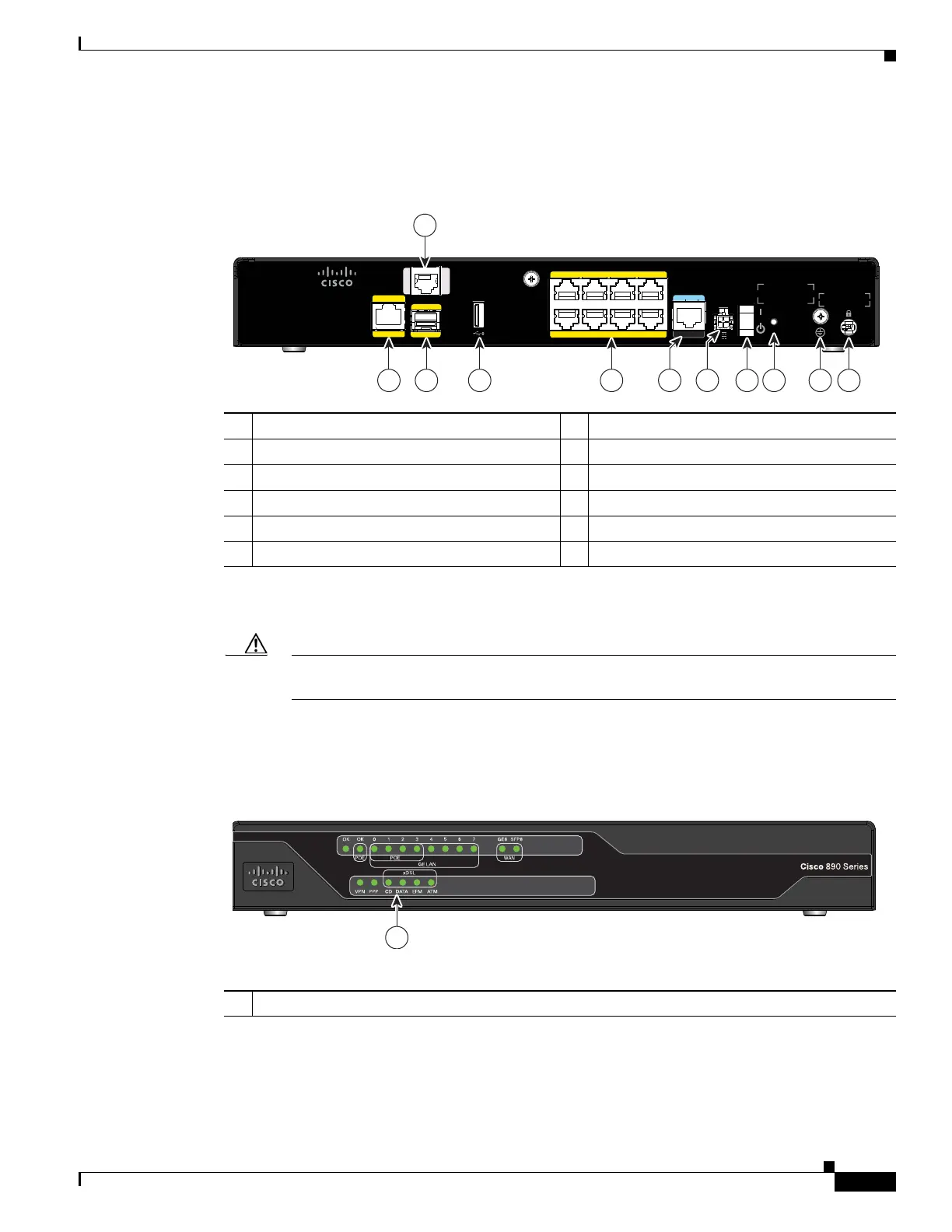

Figure 1-69 shows the back panel of the Cisco 898EA router.
Figure 1-69 Back Panel of the Cisco 898EA Router
Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN
port may occur if a non-RJ-45 connector is inserted.
Figure 1-70 shows the front panel of the Cisco 898EA Router.
Figure 1-70 Front Panel of the Cisco 898EA Router
7 6 GELAN 5 4
3 2 POE 1 0
8
GE WAN
SFP
8
54VDC 1.2A
12VDC 2.5A
SHDSL
RJ45 ONLY
CONSOLE
RESET
Cisco 898EA
AUX
344774
11
1 2 3 4 7 8 9 10
5 6
1 GE WAN interface 7 On/Off switch
2 SFP port 8 Reset button
3 USB port 9 Earth ground connection
4 8-port Gigabit Ethernet switch
1
1. Ports 0 through 3 can be configured as POE, which is an optional feature for this model. If this feature is not configured with
the factory order, you must order and install it to enable the PoE function.
10 Kensington security slot
5 Console/Auxiliary port 11 SHDSL (RJ45 only)
6 Power connector
1
344773
1 LEDs
