Cisco Integrated Services Router Hardware Installation Guide
Chapter 1 Product Overview
Cisco 860, 880, 890 Series

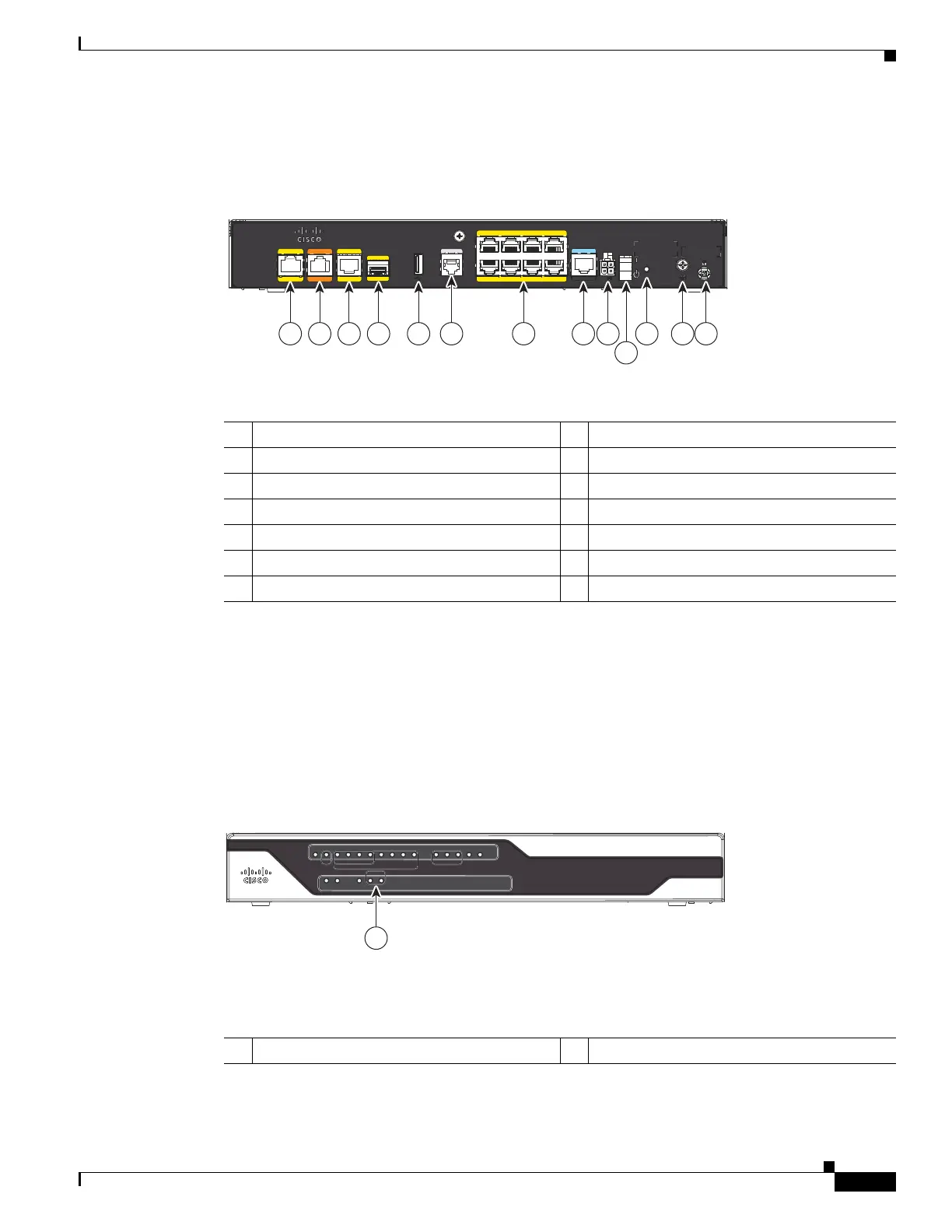

Figure 1-74 shows the back panel of the Cisco C891F Router.
Figure 1-74 Back Panel of the Cisco C891F Router
For information on installing the Cisco C890 Series Routers, see:
http://www.cisco.com/en/US/docs/routers/access/800/860-880-890/hardware/installation/guide/2Instal
l880-860.html
Cisco C891FW Router
Figure 1-75 shows the front panel of the Cisco C891FW Router.
Figure 1-75 Front Panel of the Cisco C891FW Router
For detailed description about the LEDs on Cisco C890 Series Router, see “LEDs” section on page 1-25.
361137
FE
FE W
AN
AN
ISDN
ISDN
GE
GE W
AN
AN
SFP
SFP
V
.92
.92
7 6
GE
GE L
AN
AN
C
ON
ONS
OLE
OLE
Ci
Cisco
89
891F
RES
RESET
A
UX
UX
5 4
3 2
POE
POE 1
0
0
0
8 8
0
54V
54VDC 1
.5A
.5A
3.5-5A
3.5-5A
12V
12VDC
(POE)
(POE)
1 2 3 4 5 7 8 13129 11
10
6
1 Back up WAN port—FE WAN 8 Console/Auxiliary port
2 ISDN 9 Power connector
3 Primary WAN port—GE WAN 10 On/Off switch
4 SFP 11 Reset button
5 USB port 12 Earth ground connection
6 V.92 backup 13 Kensington security slot
7 8-port 10/100/1000 Ethernet switch
361138
OK
POE
PPP
GE LAN
VPN
V.92
ISDN
OK 0
12
34
5
6
7
GE8
SFP8
FE0
5GHz
2.4GHz
WAN
B1
B2
POE
Cisco
800
Series
1
1 LEDs

Cisco 897VA Specifications

General

Model	Cisco 897VA
Category	Network Router
Device Type	Router
Enclosure Type	Desktop
Connectivity Technology	Wired
USB Ports	1 x USB 2.0
Wireless	No
Memory	256 MB
RAM	256 MB
Flash Memory	128 MB
Power Device	Internal power supply
WAN Interfaces	1 x VDSL2/ADSL2+
Security	Firewall, VPN support
Routing Protocols	BGP, OSPF, EIGRP, RIP
Remote Management Protocol	SNMP, Telnet, SSH, HTTP, HTTPS
Features	Quality of Service (QoS), VLAN support, IPv6 support
Compliant Standards	IEEE 802.3, IEEE 802.3u
Interfaces	1 x USB
Voltage Required	100-240 VAC (50/60 Hz)
Operating Temperature	32 to 104 °F (0 to 40 °C)
Operating Humidity	10 to 85% (non-condensing)
