Cisco 9865HDC - Home Wiring Configurations; Cable Modem Setup Example B; Home Amplifier Integration

TP-00116-01 5

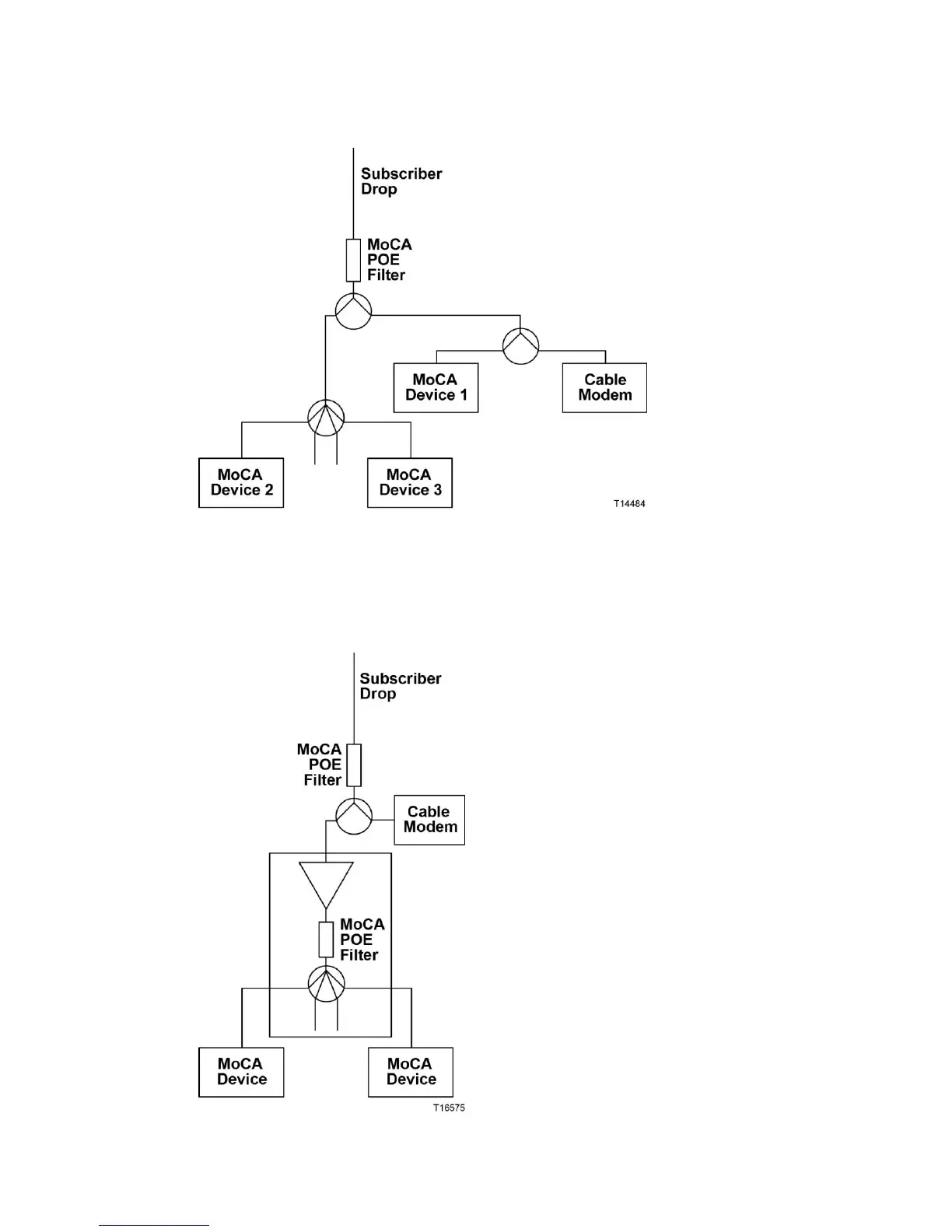

Home Wiring Examples
With Cable Modem (Example B)
With Home Amplifier
Important: Home amplifiers can cause MoCA problems. You should use a MoCA-
compliant amplifier when an amplifier is required. (A MoCA-compliant amplifier
has an internal POE filter, as shown in the diagram.)
