Cisco 9865HDC User Manual

8 TP-00116-01
Performance Verification
Node Summary and Network Summary

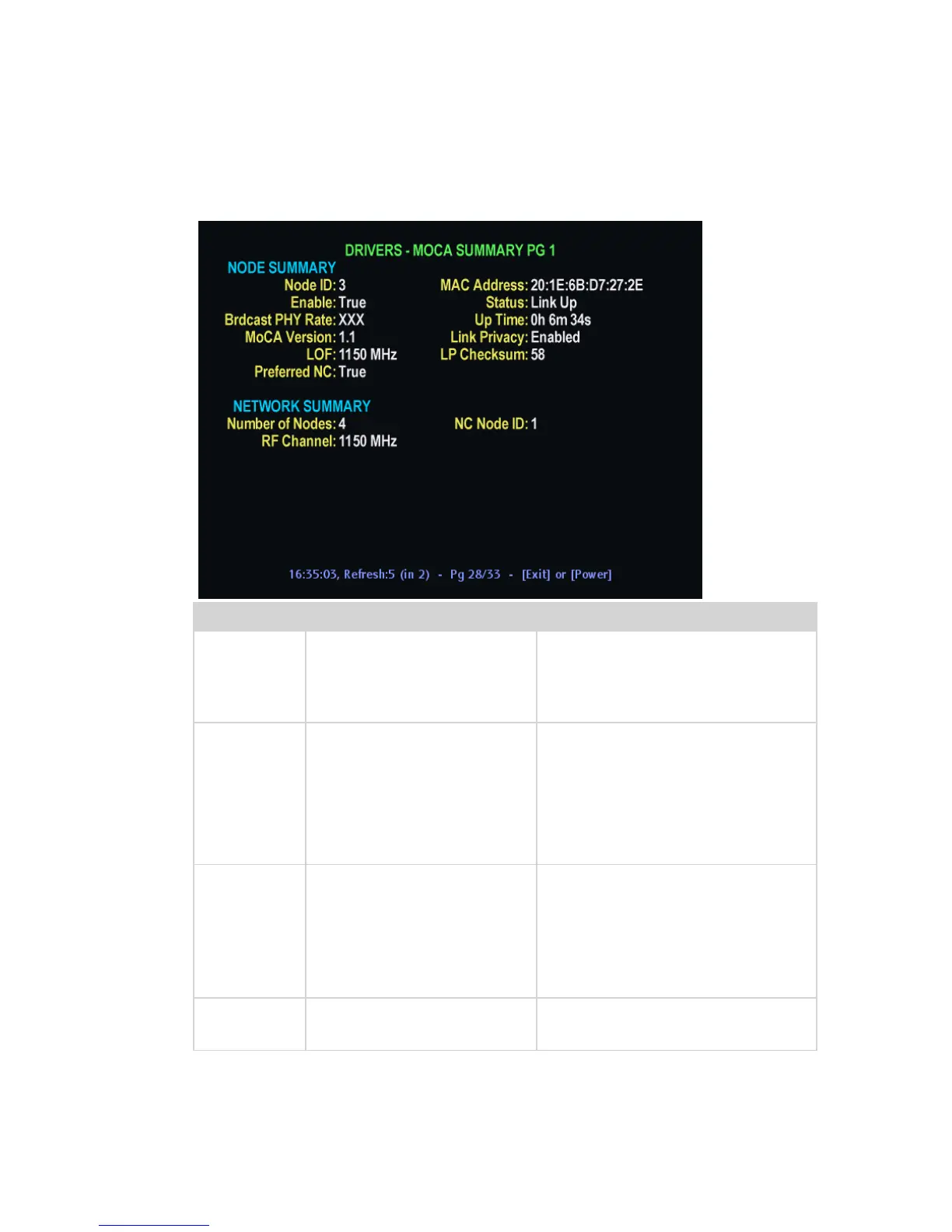

To view Node Summary and Network Summary statistics, scroll to the first MoCA
diagnostics page, DRIVERS - MoCA SUMMARY PG 1. Then verify the desired field
values as shown in the table.
Field Name
Description
Possible Values
Enable
Indicates whether MoCA is
enabled on this set-top
 True—preferred value
 False
Note: Status is controlled at the
headend.
Brdcast PHY
Rate
Data rate used for packets
broadcast to all other nodes
 [Integer > 0]
Note: Minimum value is 200 Mbps,
lower rates require fixing the home
coaxial wiring.
Wait at least 30 seconds after Link
Up is achieved then verify
Broadcast PHY Rate.
Status
Status of the MoCA network
 Link Up—preferred value
 No Link
 Disabled
Note: Link Up indicates that the
node has successfully joined the
network.
Link Privacy
Indicates the status of Link
Privacy
 Enabled—preferred value
 Disabled
