Chapter 1 Configuring Cisco Intercompany Media Engine Proxy

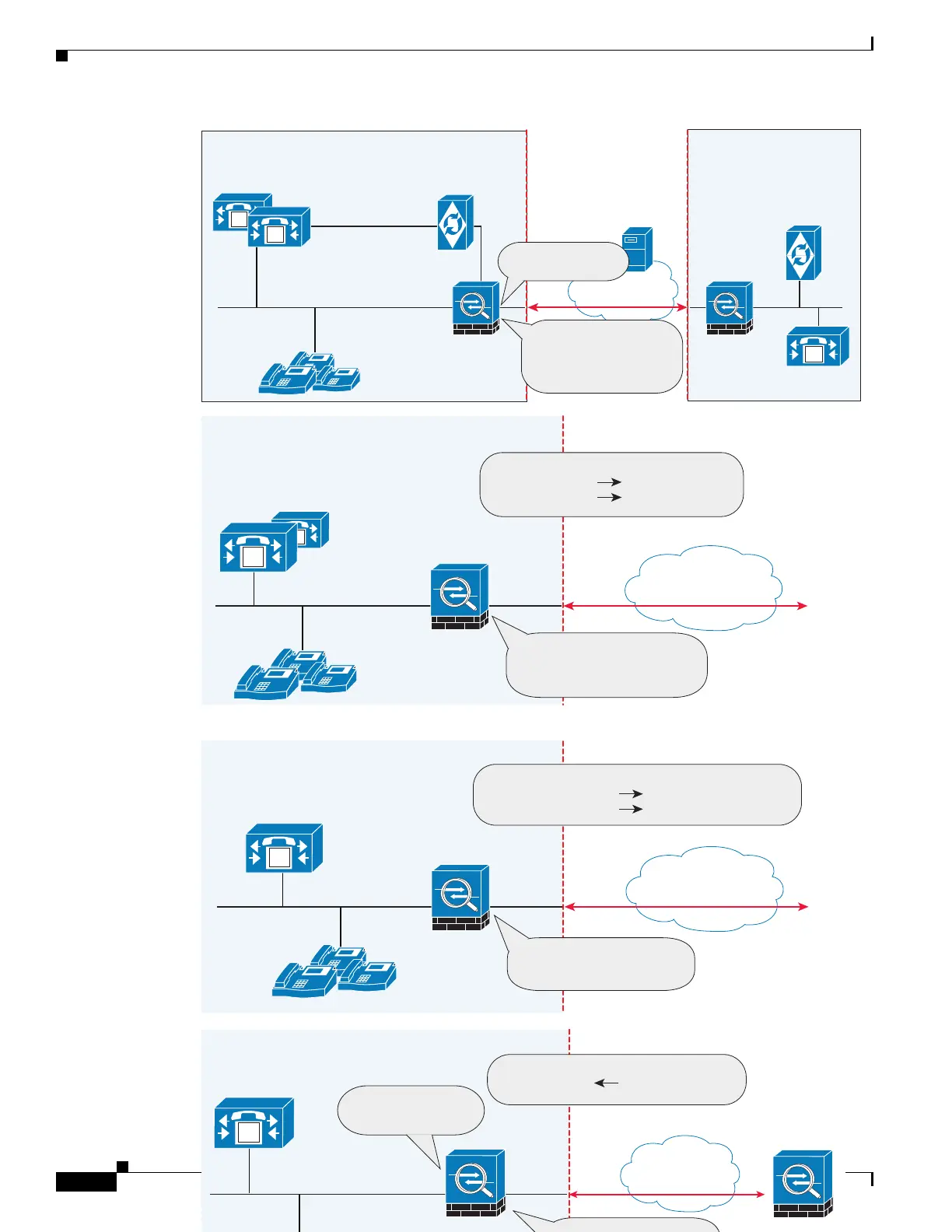

Configuring Cisco Intercompany Media Engine Proxy
Internet
Remote Enterprise
Local
Cisco UCMs
Local ASA
Corporate
Network
Remote
Cisco UCM
Remote ASA
Local Enterprise
IP
IP
IP
192.168.10.30
192.168.10.31
192.168.10.12
ASA inside
interface
192.168.10.1
Inside media
termination
192.168.10.3
Outside media termination
209.165.200.226
Outside Cisco UMC
209.165.200.228
TLS
TCP
248764
Local
UC-IME
Server
Remote
UC-IME
Server
M
M
UC-IME
Bootstrap
Server
ASA outside interface
209.165.200.225
M
Local Cisco UCMs
Local ASA
Corporate
Network
Local Enterprise
M
IP
IP
IP
192.168.10.30
199.168.10.31
TLS
TCP
M
248905
Internet
Configure NAT:
192.168.10.30
192.168.10.31
209.165.200.227
209.165.200.228
Outside Cisco UCM addresses
209.165.200.227
209.165.200.228
Local Cisco UCM
Local ASA
Corporate
Network
Local Enterprise
IP
IP
IP
192.168.10.30
TLS
TCP
M
248765
Internet
Outside Cisco UCM address
209.165.200.228
Configure PAT:
192.168.10.30:5070
192.168.10.30:5071
209.165.200.228:5570
209.165.200.228:5571
Local Cisco UCM
Local ASA
Remote ASA
Corporate
Network
Local Enterprise
TCP
M
OUTSIDE 0.0.0.0 0.0.0.0
192.168.10.30
O t id Ci UCM dd
TLS
Internet
192.168.10.1
ip_address:port
ASA inside interface
192.168.10.1
