Maintenance and Upgrade Procedures for the ASA 5500-X

Install an Expansion I/O Card

Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide

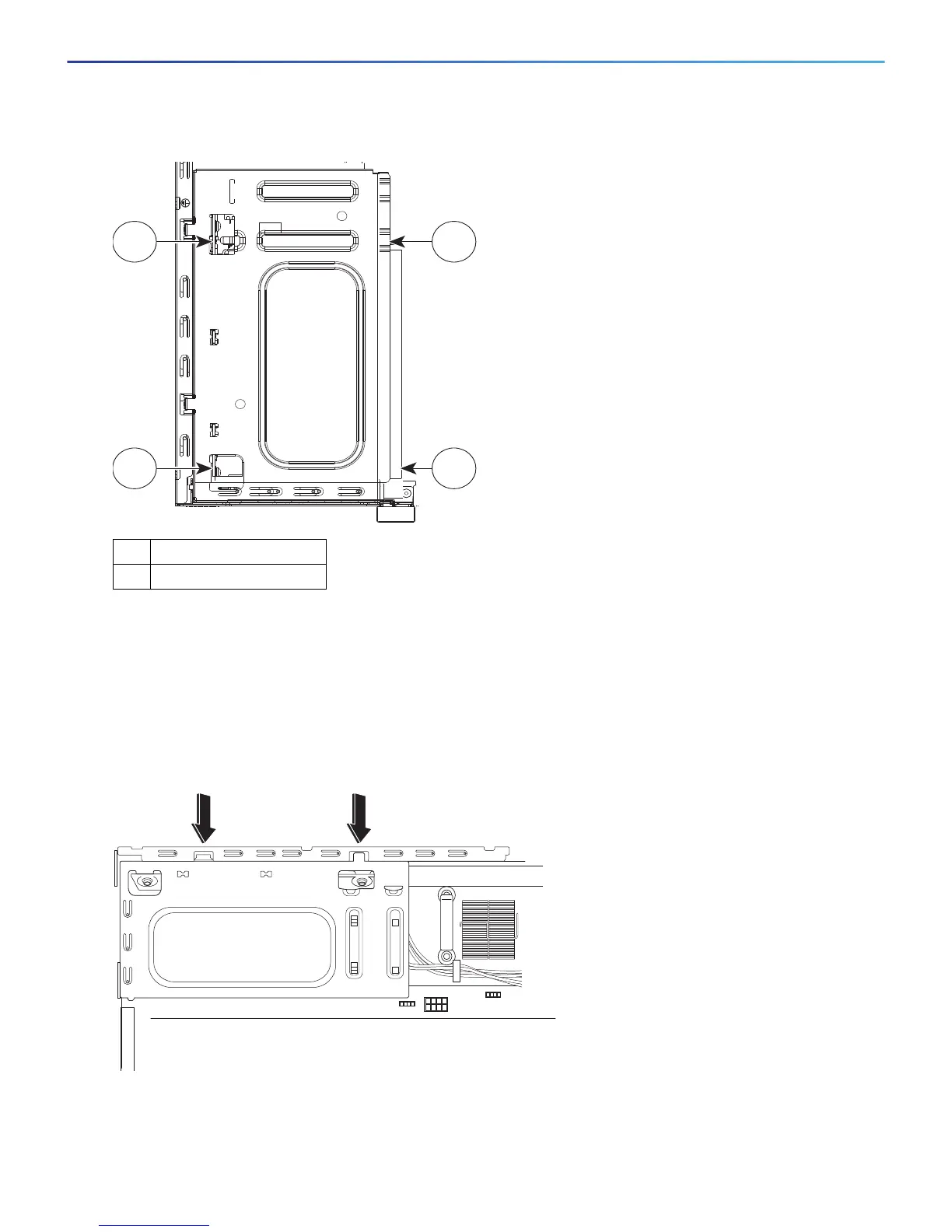

Figure 6 Lift the I/O Card Upward to Release it

9. Insert the new I/O card into the chassis. (See Figure 7.) The I/O card fits properly if the following criteria are

met:

a. The PCIe bus is properly inserted on the motherboard.

b. The small black plastic guide slides all the way into the chassis.

c. The two hooks on the assembly plug into the two slots on the edge of the chassis.

Figure 7 Installing the I/O Card

10. Connect the blue connector end of the Regex ribbon cable to the motherboard, and close the green tab.

11. Install the chassis cover, and replace the chassis in the rack.

1 Index finger placement

2 Thumb placement

331354

1 2

331399
