Maintenance and Upgrade Procedures for the ASA 5500-X

Install an Expansion I/O Card

Cisco ASA 5512-X, ASA 5515-X, ASA 5525-X, ASA 5545-X, and ASA 5555-X Hardware Installation Guide

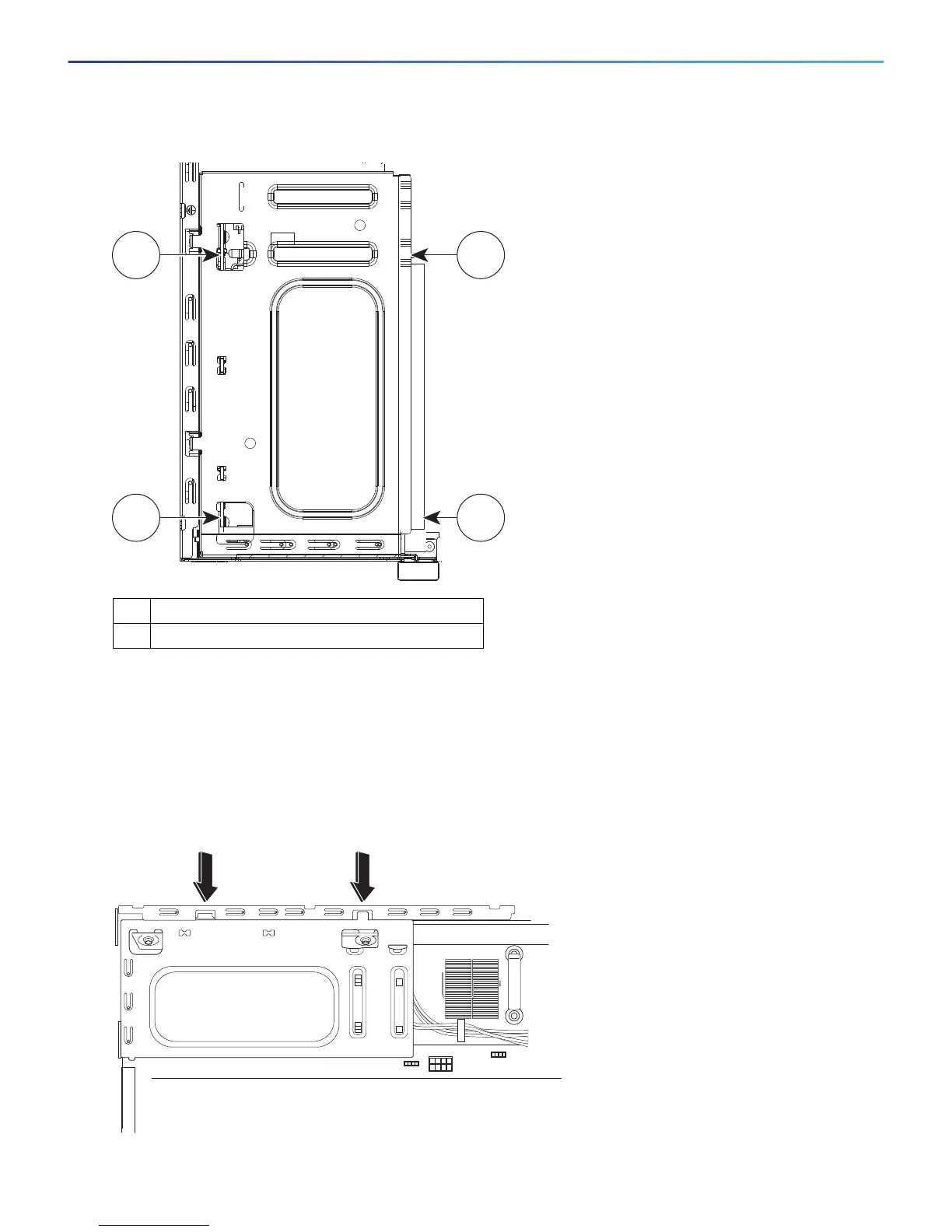

Figure 11 Lift the I/O Card Upward to Release it

9. Insert the new I/O card into the chassis. (See Figure 12.) The I/O card holder fits properly if the following

criteria are met:

a. The PCIe bus is properly inserted on the motherboard.

b. The small black plastic guide slides all the way into the chassis.

c. The two hooks on the assembly plug into the two slots on the edge of the chassis.

Figure 12 Inserting a New I/O Card

1 Index finger placement

2 Thumb placement

331354

1 2

330134
