27-28
Cisco ASA 5500 Series Configuration Guide using ASDM
OL-20339-01
Chapter 27 Configuring Network Object NAT
Configuration Examples for Network Object NAT

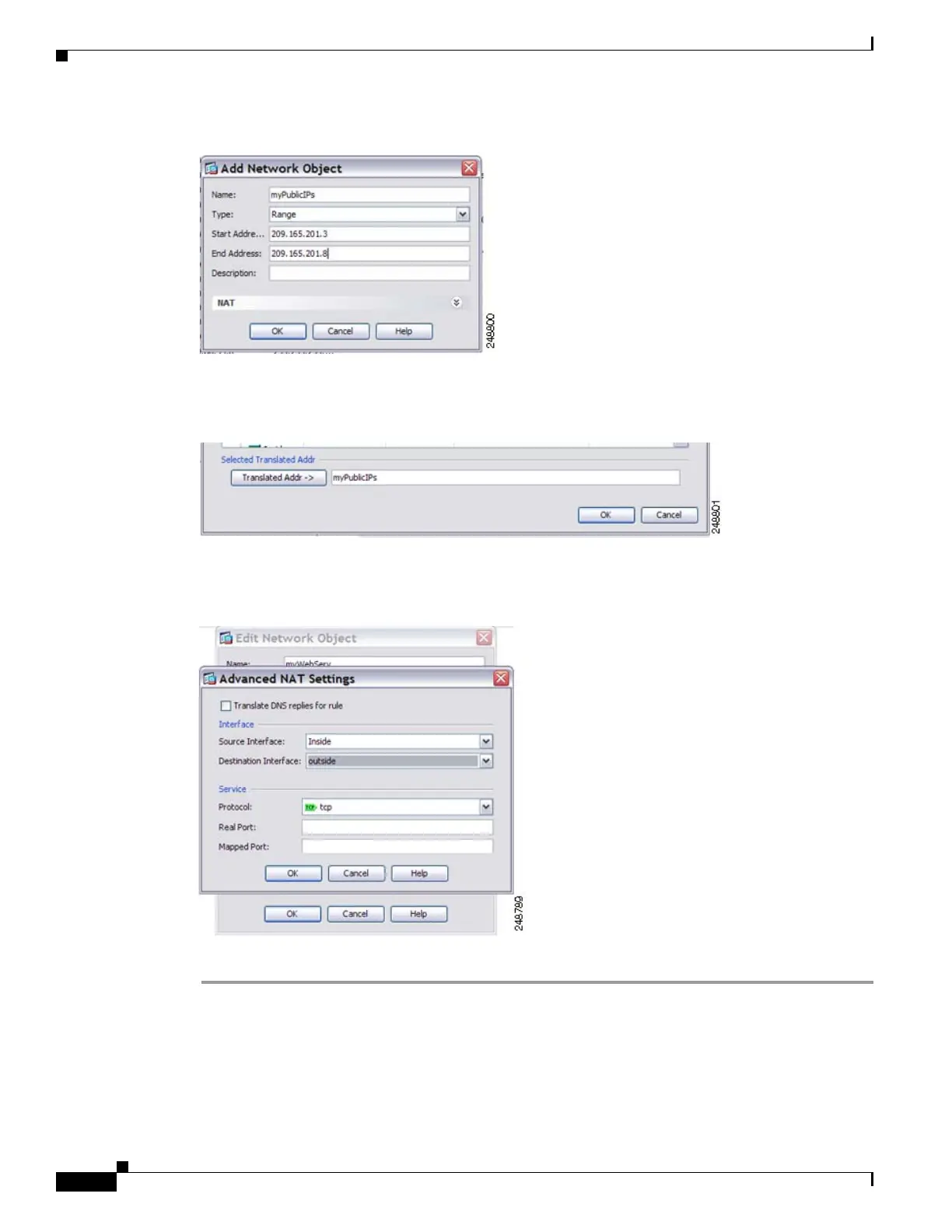

Figure 27-50 Defining the Static NAT Group of Addresses
c.
Choose the new network object by double-clicking it. Click OK to return to the NAT configuration.
Figure 27-51 Choosing the New Network Object
Step 5
Configure the real and mapped interfaces by clicking Advanced:
Figure 27-52 Configuring Interfaces
Step 6 Click OK to return to the Edit Network Object dialog box, click OK again, and then click Apply.
