Chapter 27 Configuring Network Object NAT
Configuration Examples for Network Object NAT
Single Address for FTP, HTTP, and SMTP (Static NAT with Port Translation)
The following static NAT with port translation example provides a single address for remote users to
access FTP, HTTP, and SMTP. These servers are actually different devices on the real network, but for
each server, you can specify static NAT with port translation rules that use the same mapped IP address,
but different ports. (See Figure 27-53.)

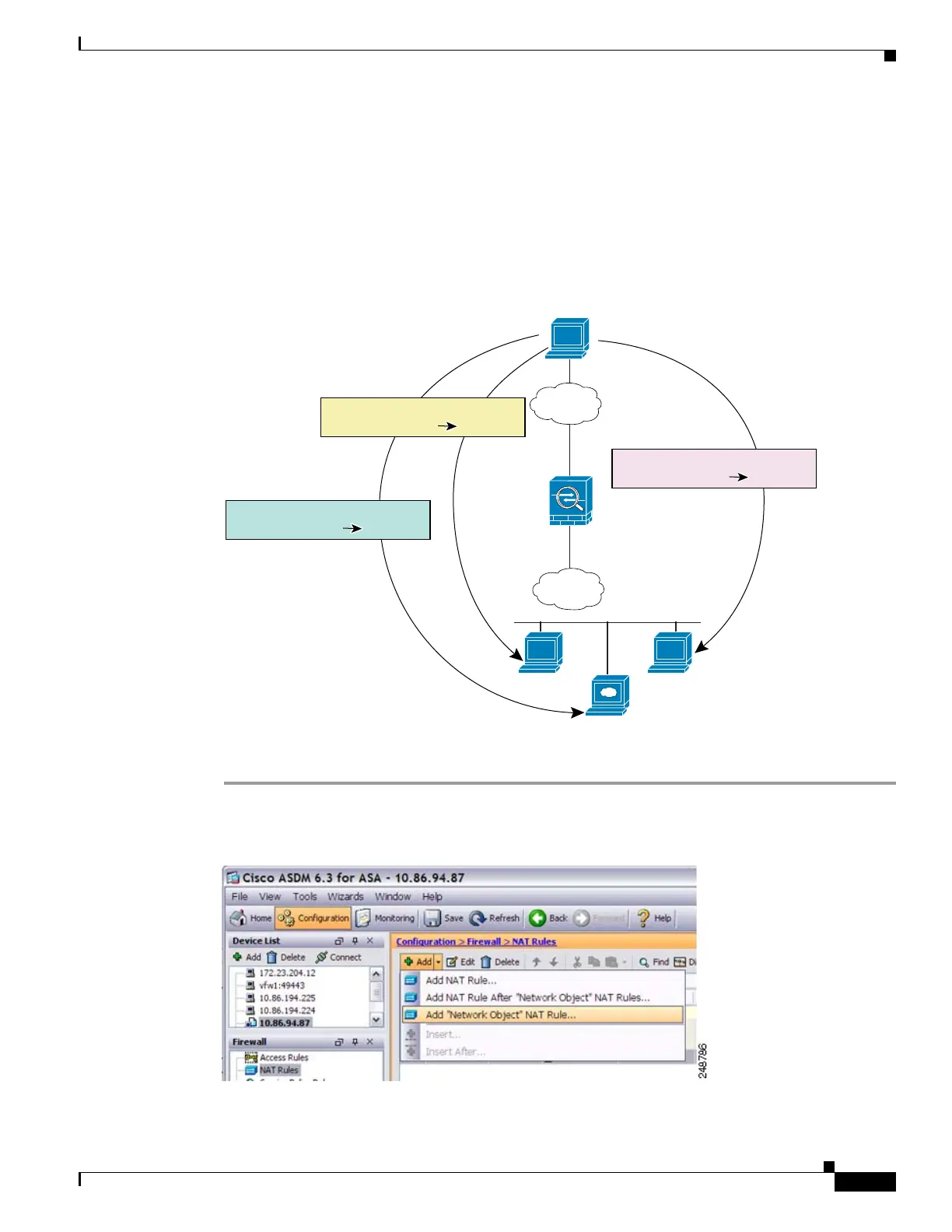

Figure 27-53 Static NAT with Port Translation
Step 1 Create a network object for the FTP server address:
Figure 27-54 Adding a Network Object
Step 2
Define the FTP server address, and configure static NAT for the FTP server:
Host
Outside
Inside
Undo Translation
10.1.2.27209.165.201.3:21
Undo Translation
10.1.2.28209.165.201.3:80
Undo Translation
10.1.2.29209.165.201.3:25
FTP server
10.1.2.27
HTTP server
10.1.2.28
SMTP server
10.1.2.29
