Cisco ASA 5585-X Adaptive Security Appliance Hardware Installation Guide
OL-22567-02
Chapter 4 Maintenance and Upgrade Procedures
Installing the Cable Management Brackets
Step 12 Re-attach the power cable to the adaptive security appliance.
Step 13 Power on the adaptive security appliance.
Installing the Cable Management Brackets
The ASA 5585-X ships with two cable management brackets that you can use to organize the cables
connected to the adaptive security appliance.
To install the cable management brackets on the ASA 5585-X, follow these steps:
Step 1 Power off the adaptive security appliance.
Step 2 Remove the power cable from the adaptive security appliance.
Step 3 Position the cable management brackets on the front side of the adaptive security appliance, and line up

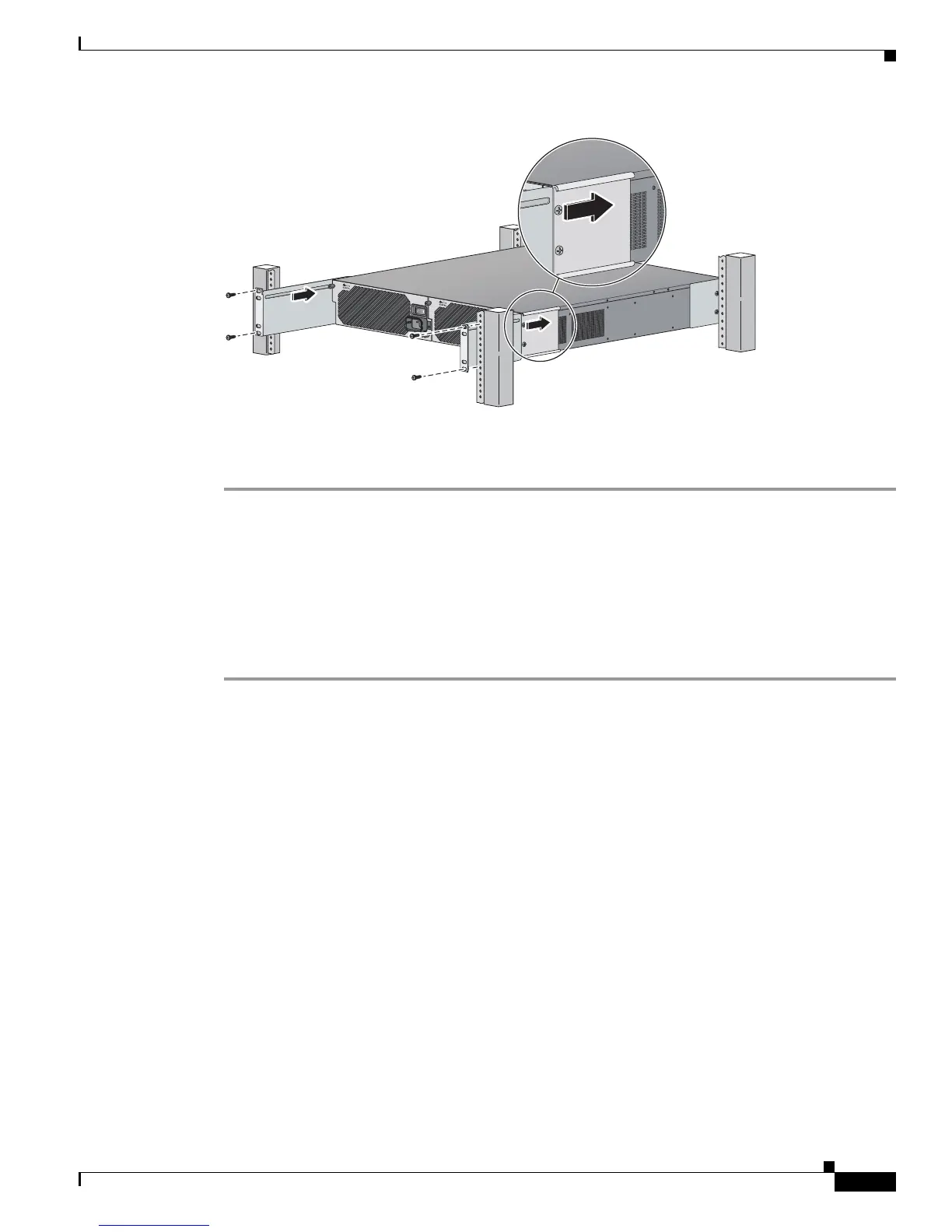

the bracket screws with the screw holes on the adaptive security appliance. Figure 4-35 shows the cable
management bracket for the fixed rack mount, and Figure 4-36 on page 4-42 shows the cable
management bracket for the slide rail.
Cisco ASA 1200W AC
100-240V
15.0/8.0.A
56/60Hz
IN
OK
FAN
OK
OUT
FAIL
Cisco ASA 1200W AC
100-240V
15.0/8.0.A
56/60Hz
IN
OK
FAN
OK
OUT
FAIL
