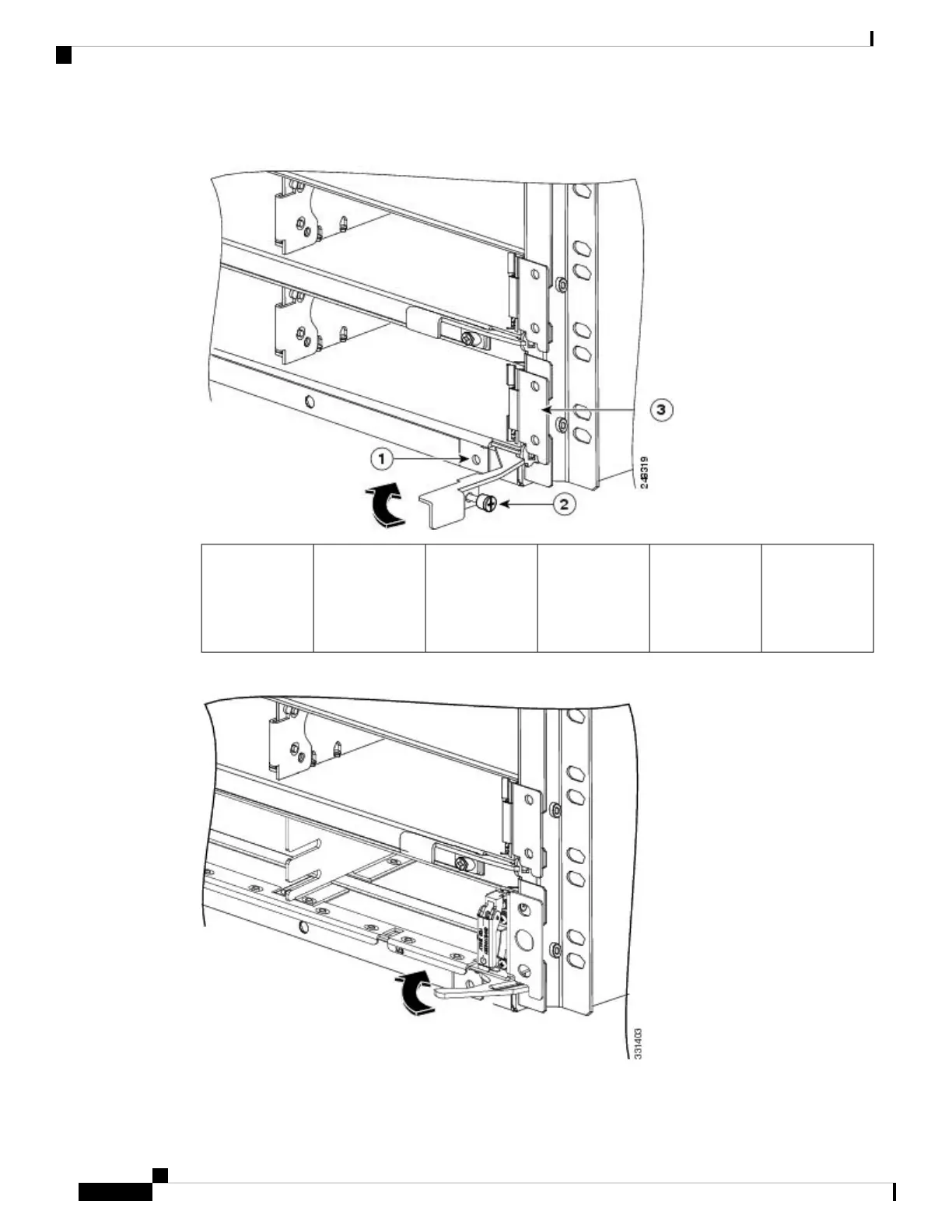

Figure 17: Rotating the Ejector Levers Inward to Seat the Version 1 Power Tray
Power tray
mounting ear
3Ejector lever
captive screw
2Screw hole in
the power tray
frame for ejector
lever captive
screw
1
Figure 18: Rotating the Ejector Levers Inward to Seat the Version 2 Power Tray
Replacing Cisco ASR 9000 Series Router Components
24
Replacing Cisco ASR 9000 Series Router Components
Installing an AC or DC Power Tray into a Cisco ASR 9000 Series Router

Cisco ASR 9006 Specifications

General

Chassis Type	Modular
Rack Units	10 RU
Slots	6
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Relative Humidity	5% to 95% non-condensing
Power Supply	AC or DC
Cooling	Front-to-back airflow
Input Voltage	100-240 VAC or -48 to -60 VDC
Supported Protocols	IPv4, IPv6, MPLS, L2VPN, L3VPN
Interfaces	10GE, 40GE, 100GE
Management Interfaces	Ethernet, Console, Auxiliary
